Project in Russia → Dry Mortar Packaging → Layer Palletizing → Stretch Hooding | CORINMAC

A fully custom-branded dry mortar packaging, palletizing, and stretch hooding line — engineered by CORINMAC, running smoothly in Russia.

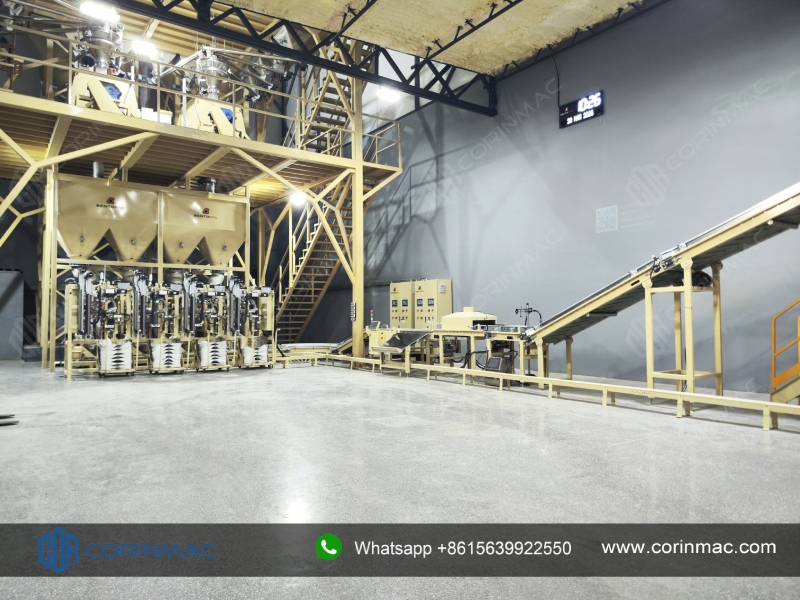

This is a fully customized dry mortar production, packaging, and palletizing line delivered by CORINMAC for a Russian client — now in stable mass production. The line features a vertical layout on a steel structure, with automatic bag placing, valve bag packaging, check weighing, bag flattening, layer palletizing, and stretch hooding — all integrated into one continuous automated flow. Every piece of equipment is custom-branded with the client’s LOGO.

 Upstream Production (Brief)



• Additive weighing and batching system on upper steel frame — high-precision bellows load cell, fully automatic one-key operation



• Screw conveyors feed materials into 2 ribbon mixers (client-supplied)

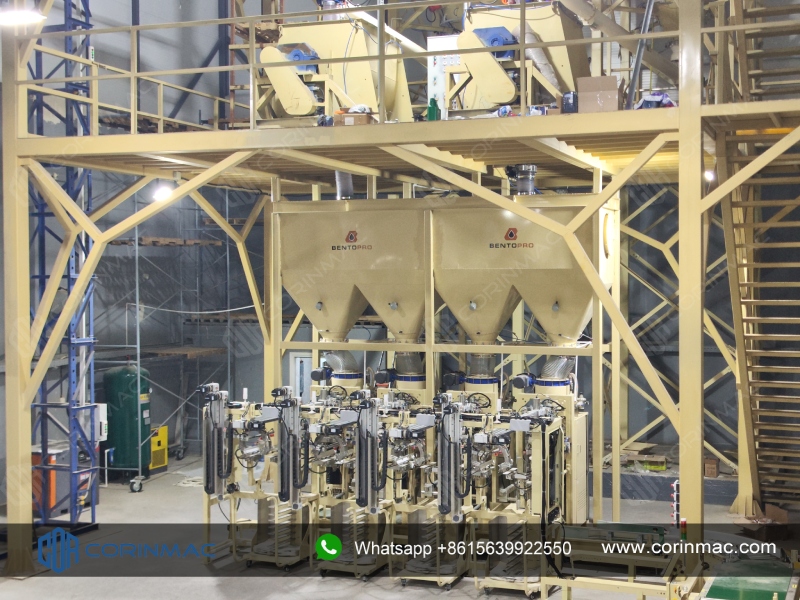

• Mixed mortar enters finished product hopper above packaging machine





Packaging Section (Main Focus)

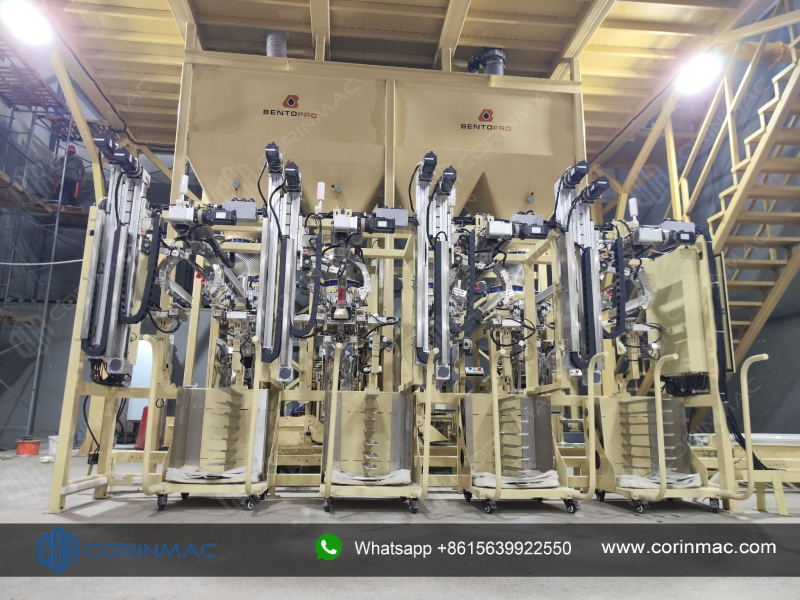

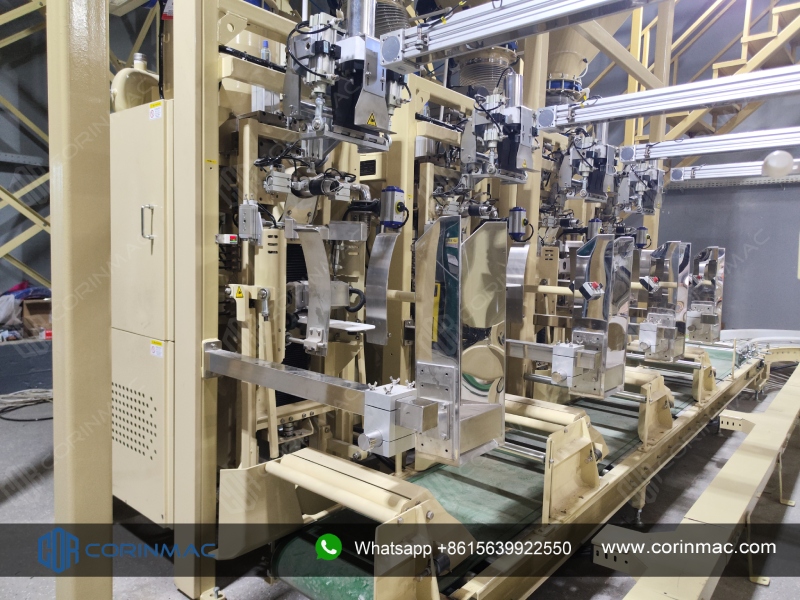

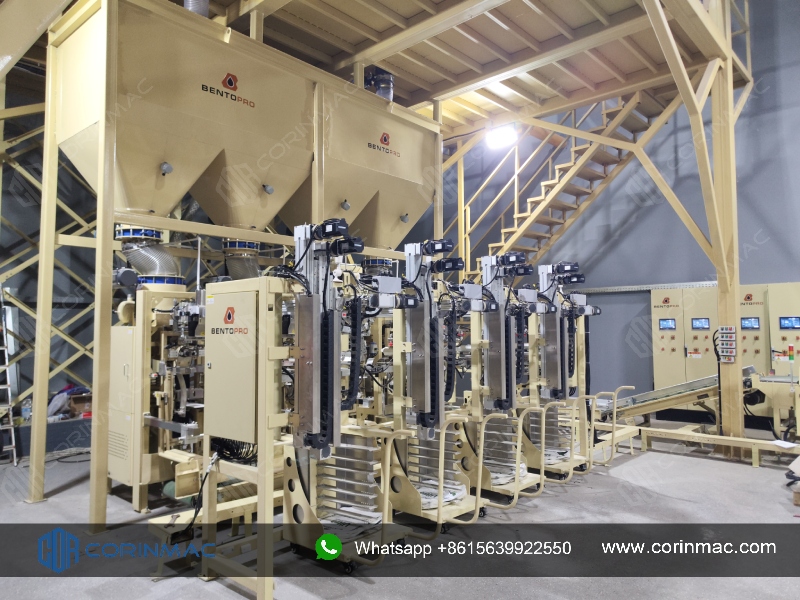

• Automatic bag placer: picks up valve bags, opens valve port, places on discharge nozzle — 240-280 bags/hour, 2 bag carts for continuous operation, PLC linkage with packaging machine

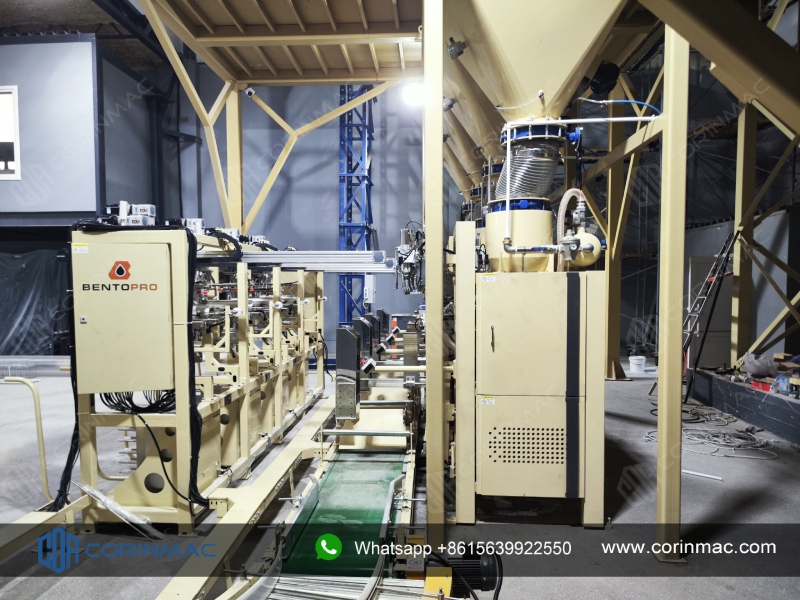

• Air-floating valve bag packaging machine: 10-60kg per bag, filling accuracy ≤±0.6%, compressed air filling through discharge nozzle



• Gross weight weighing principle — bag and product weighed together during filling

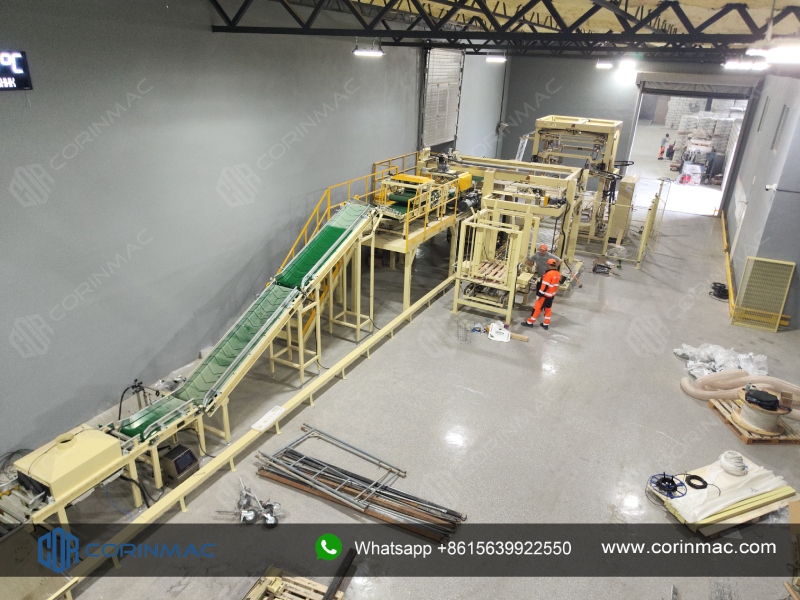

• Finished bags automatically released onto belt conveyor









Quality Control & Preparation



• Check weigher verifies actual weight of each bag



• Bag flattener presses each bag flat for stable stacking







Palletizing Section (Main Focus)

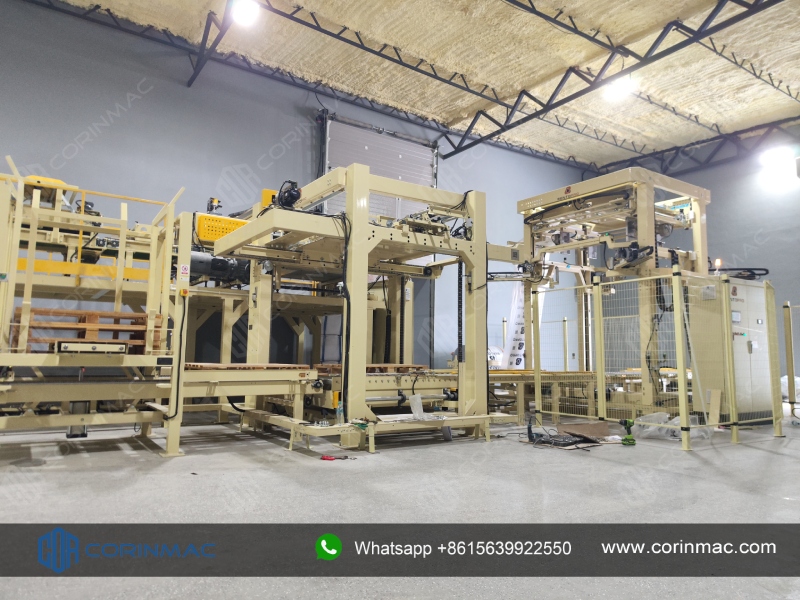

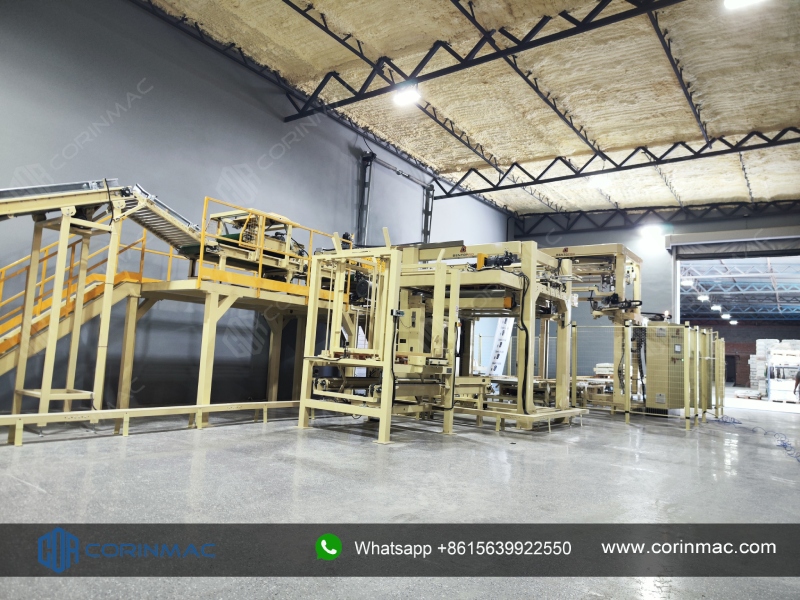

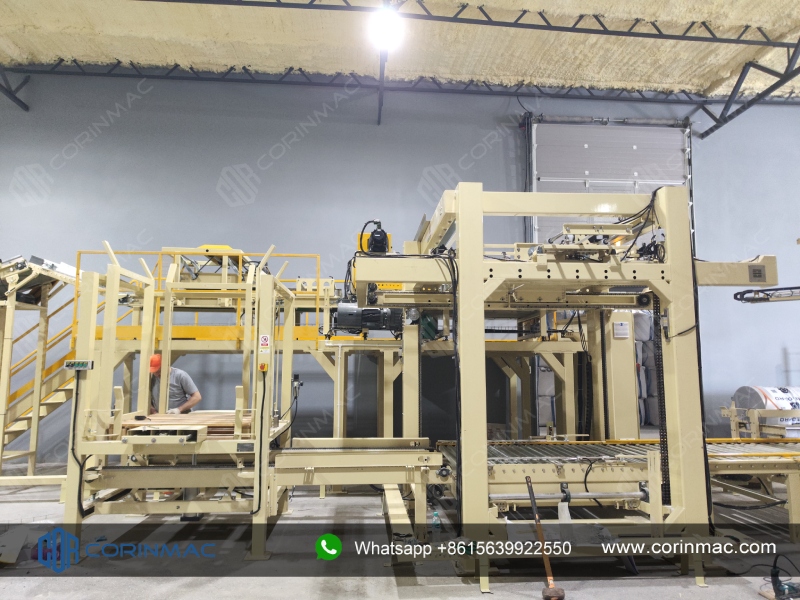

• Layer type palletizer — similar working principle to high-position palletizer, stacks bags layer by layer



• Servo-driven coding mechanism, up to 1200 bags/hour



• Built-in pallet library automatically feeds empty pallets to stacking position



• Preset stacking patterns, fast product changeover within 10 minutes





Stretch Hooding Section (Main Focus)

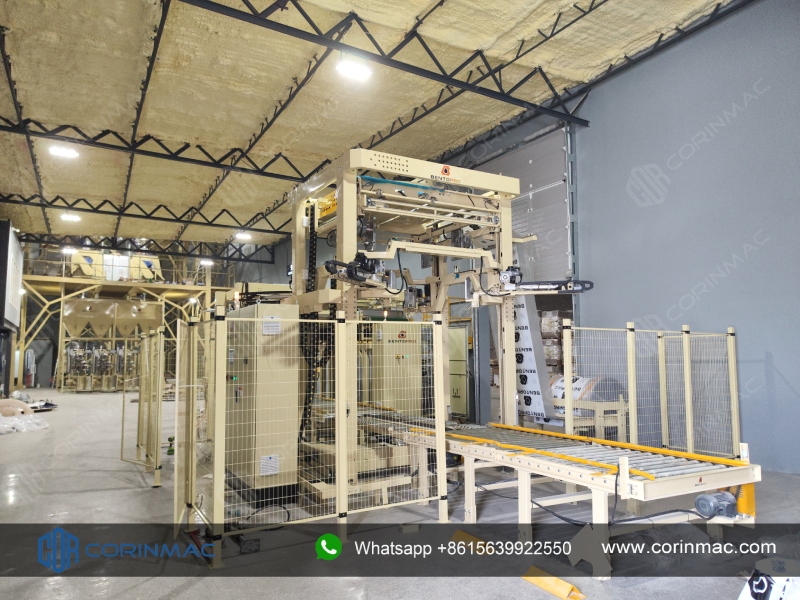

• Automatic stretch hooder with cold stretch technology



• Film covers pallet and products from top to bottom — dust-proof, moisture-proof, hermetically sealed



• Film thickness: 0.1mm (80-150 microns), material per pallet: ~500-560g



• Far less material than traditional stretch wrap, no tearing or re-wrapping needed



• Finished pallet ready for forklift transport





Additional Lines (Brief)

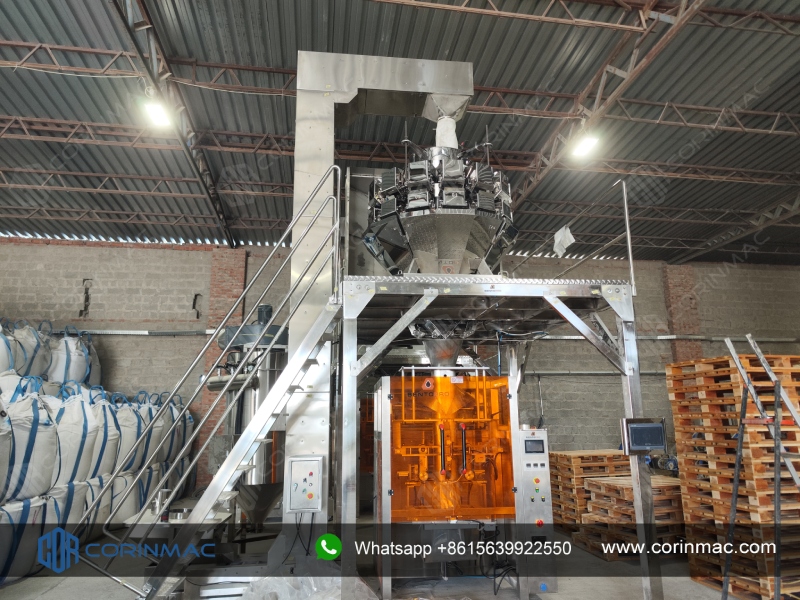

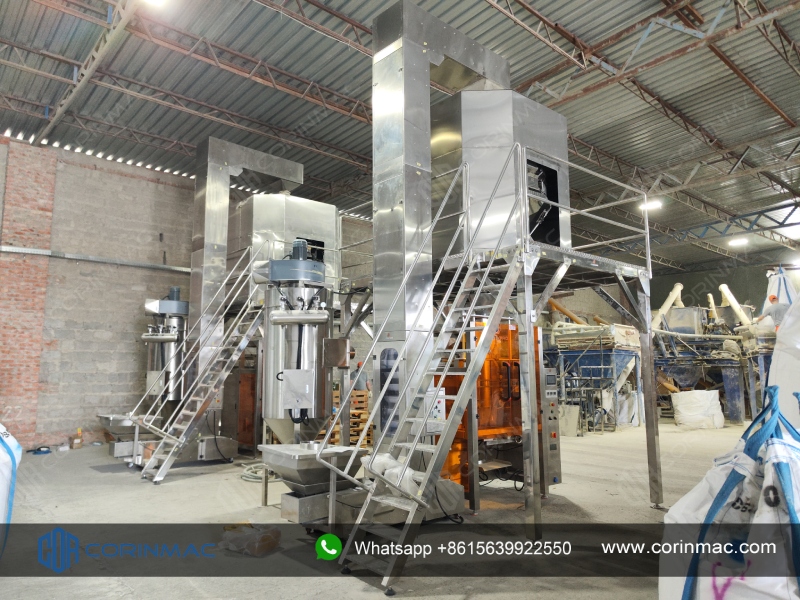

• 2× fully automatic stainless steel small bag packaging lines — vertical screw discharge, servo-driven, 10-35 bags/min, 100-5000g per bag, dust-free filling



• 1× semi-automatic ton bag packaging machine — manual bag hanging only, filling and weighing fully automatic, belt conveyor output





CORINMAC provides customized dry mortar production and packaging solutions worldwide. Every line is tailored to the client’s site, capacity, and material requirements.
