A grinding production line with an output of 2-3tph sent to Russia
Pubdate:2018-09-18

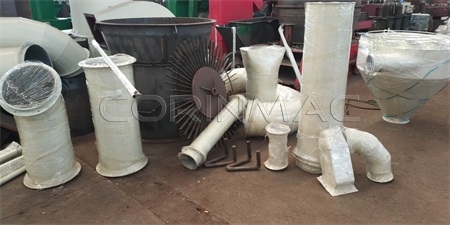

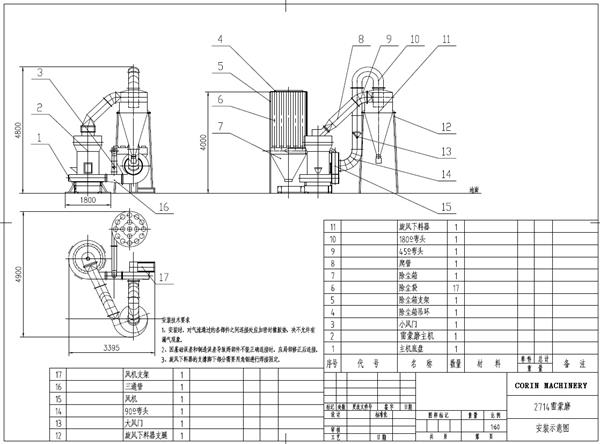

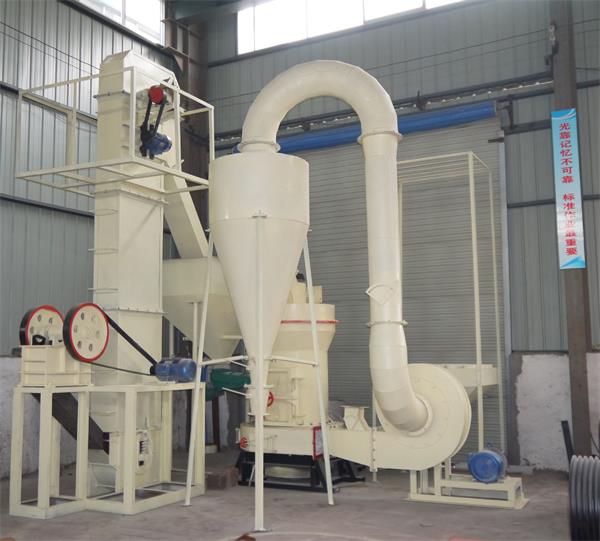

3R2714 grinding line equipment list:
| Name | Specifications | Qty./set | Name | Specifications | Qty./set |

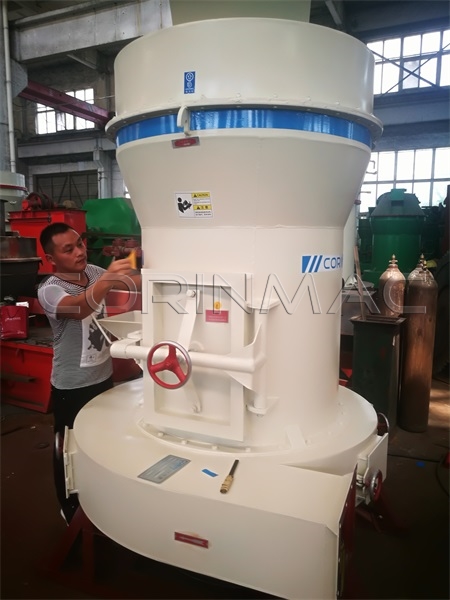

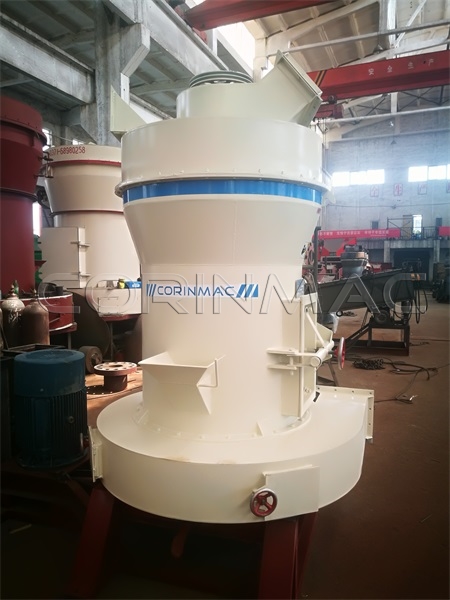

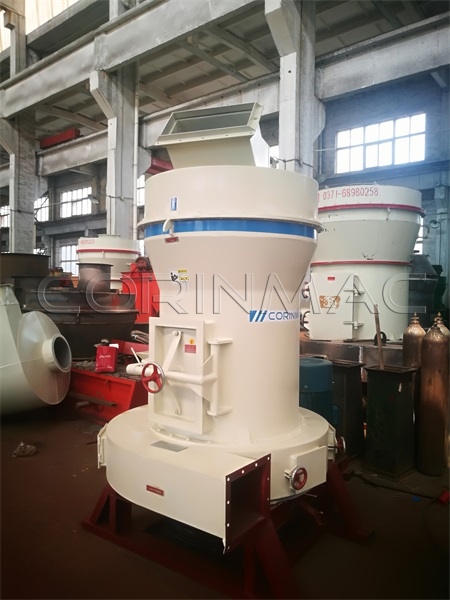

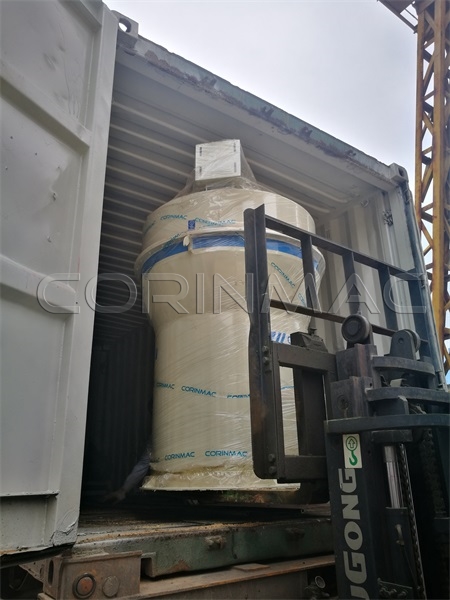

| Mill | 1 | Motor guard | 1 | ||
| Mill motor | 22KW | 1 | Mill motor pulley | 1 | |
| Classifier motor | 2.2KW | 1 | Classifier pulley | 2 | |
| Fan motor | 18.5KW | 1 | Fan motor pulley | 1 | |

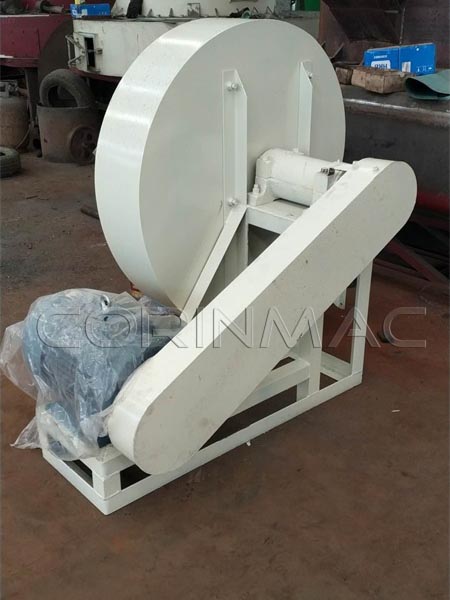

| Fan | 1 | Dust collector | Φ1100mm*19 | 1 | |
| Three way pipe | 1 | Dust collector legs |
(3шт. Длиные 3шт. корочные) |
6 | |
| Discharge valve | 1 | Air lock valve | 1 | ||
| Pipe | Φ380*1900mm | 1 | V-belt | C4000mm | 6 |
| Air conditioning pipe | Φ380*1000mm | 1 | V-belt | B2500mm | 4 |
| Air pipe | Φ180*1000mm | 1 | V-belt | B2050mm | 2 |
| Winding pipe | Φ380*180° | 1 | Bolt | M16*250 | 6 |
| Winding pipe | Φ380*90° | 1 | Bolt | M1 6*150 | 4 |

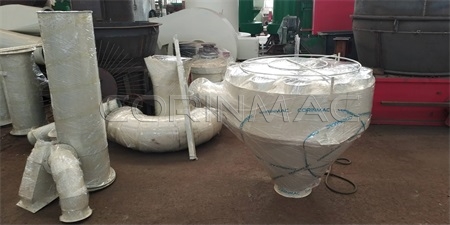

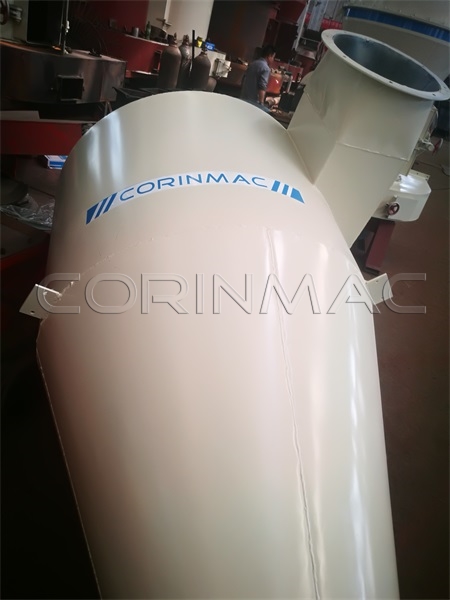

| Cyclone powder collector | 1 | Bolt | M10*35 | 180 | |
| Collector legs |
(3шт. Длиные 3шт. корочные) |
6 | Hopper | с ногами | 1 |
| Winding pipe | Φ180*90° | 1 | Feeder | 1 | |
| Small regulating tube | Φ180*790mm | 1 | |||
| Mill chassis | 1 | ||||
| Connecting part | 1 |
