CORINMAC Dry Mortar Packaging and Palletizing Line in Russia

A fully custom-branded dry mortar packaging, palletizing, and stretch hooding line — engineered by CORINMAC, running smoothly in Russia.

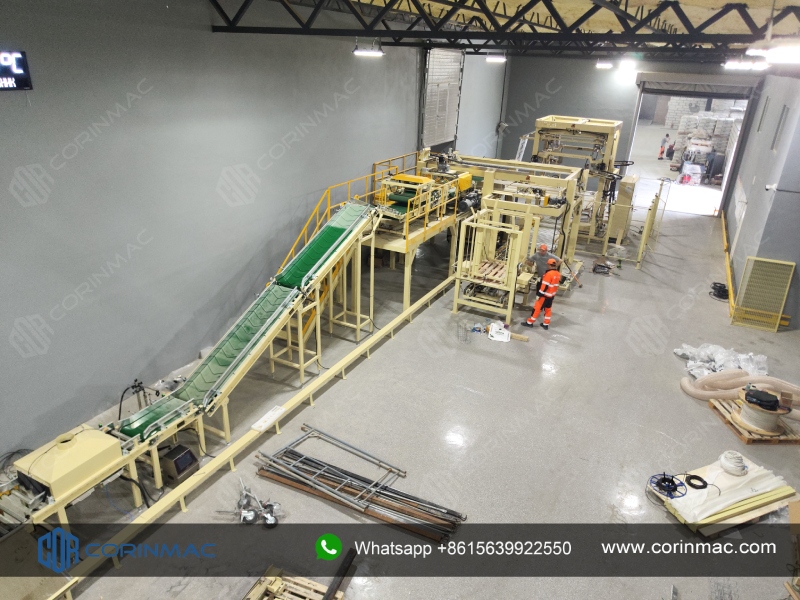

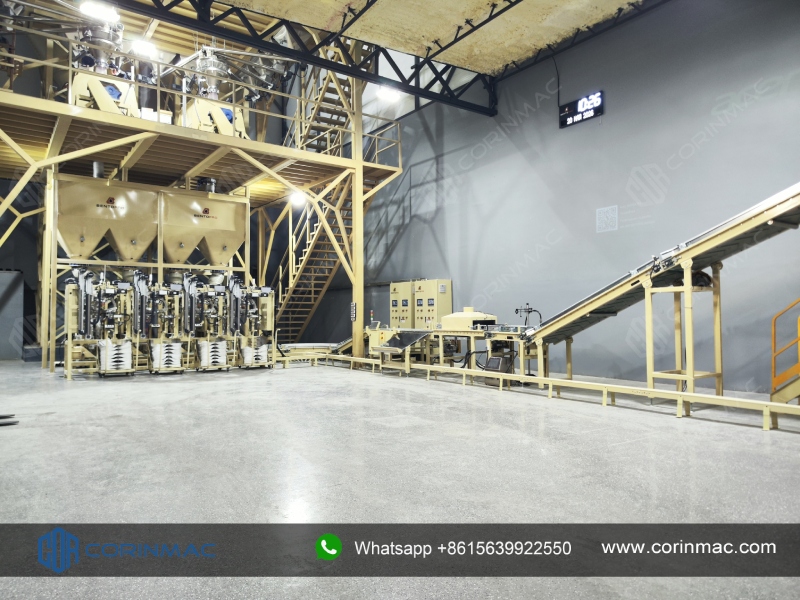

This is a fully customized dry mortar production, packaging, and palletizing line delivered by CORINMAC for a Russian client — now in stable mass production. The line features a vertical layout on a steel structure, with automatic bag placing, valve bag packaging, check weighing, bag flattening, layer palletizing, and stretch hooding — all integrated into one continuous automated flow. Every piece of equipment is custom-branded with the client’s LOGO.

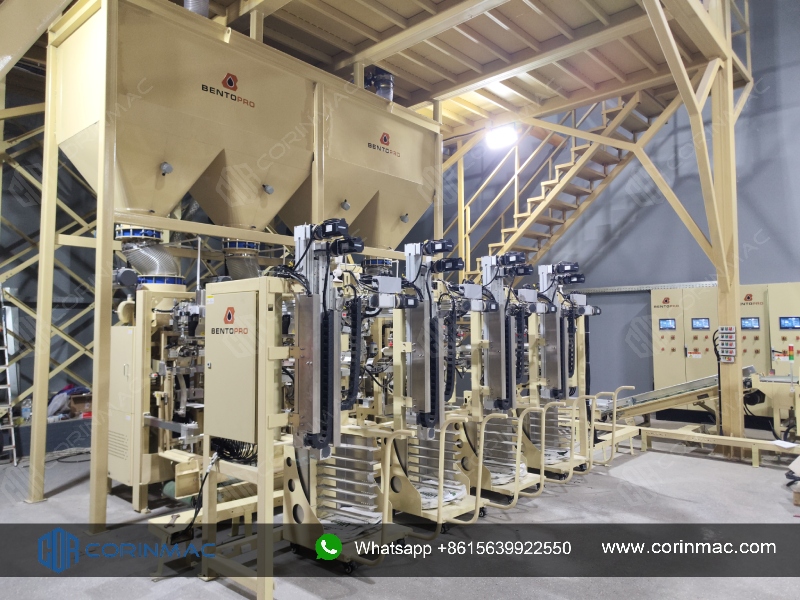

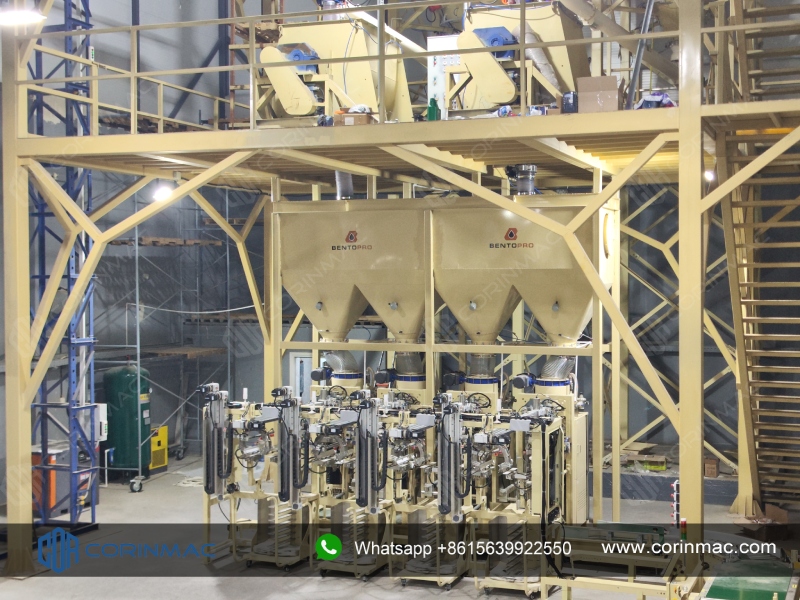

• Mixed mortar enters finished product hopper above packaging machine

Packaging Section (Main Focus)

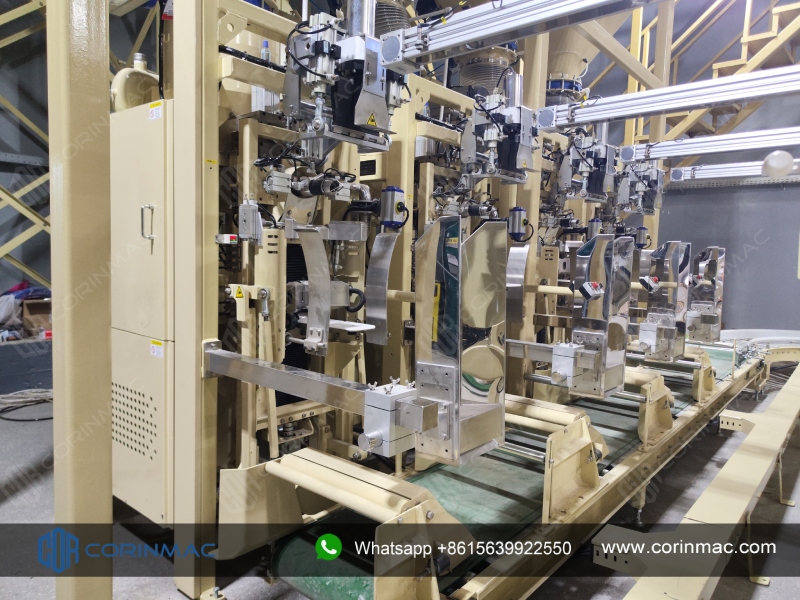

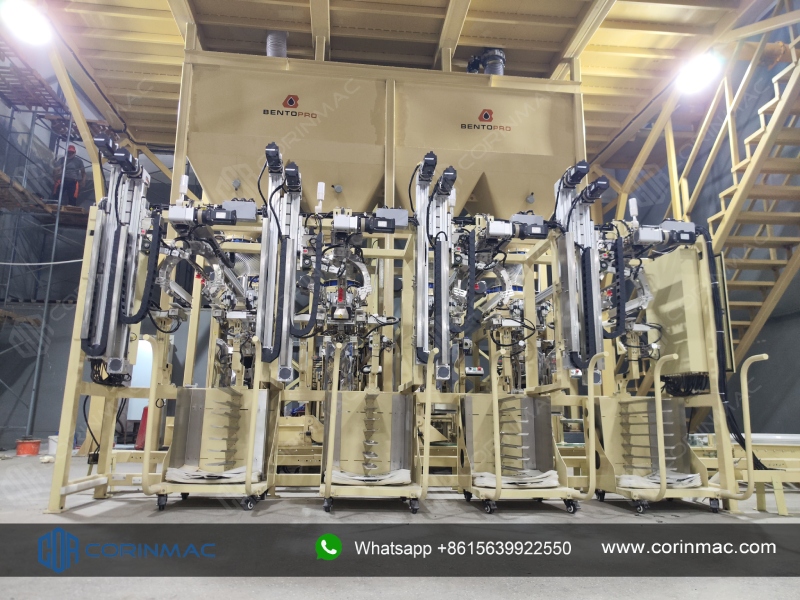

• Automatic bag placer: picks up valve bags, opens valve port, places on discharge nozzle — 240-280 bags/hour, 2 bag carts for continuous operation, PLC linkage with packaging machine

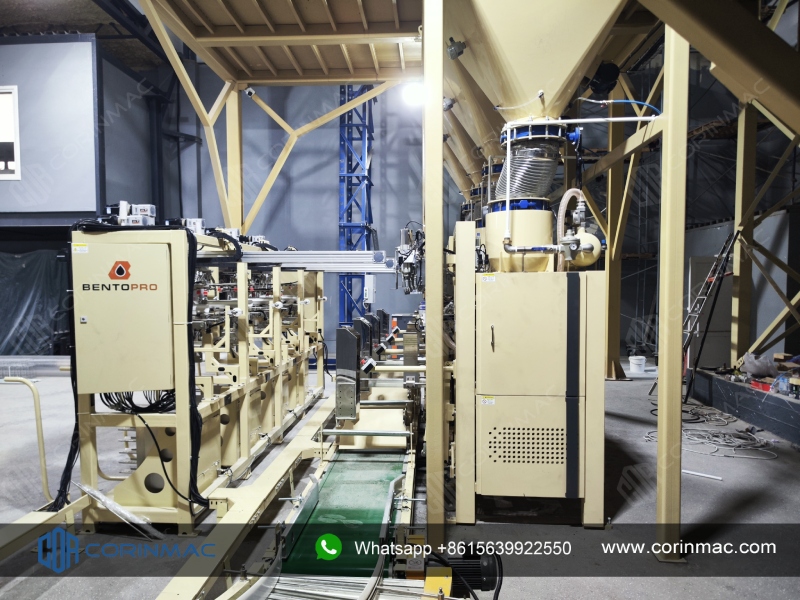

• Air-floating valve bag packaging machine: 10-60kg per bag, filling accuracy ≤±0.6%, compressed air filling through discharge nozzle

• Gross weight weighing principle — bag and product weighed together during filling

• Finished bags automatically released onto belt conveyor

Quality Control & Preparation

• Check weigher verifies actual weight of each bag

• Bag flattener presses each bag flat for stable stacking

Palletizing Section (Main Focus)

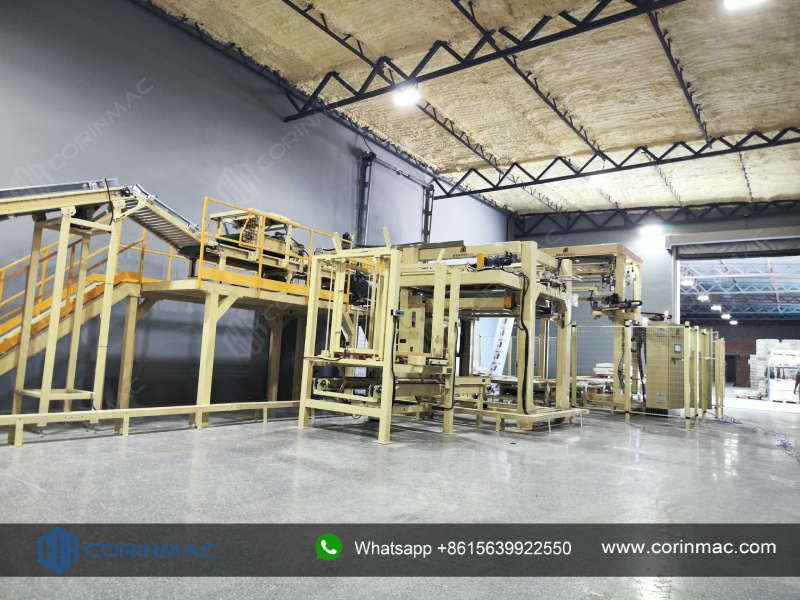

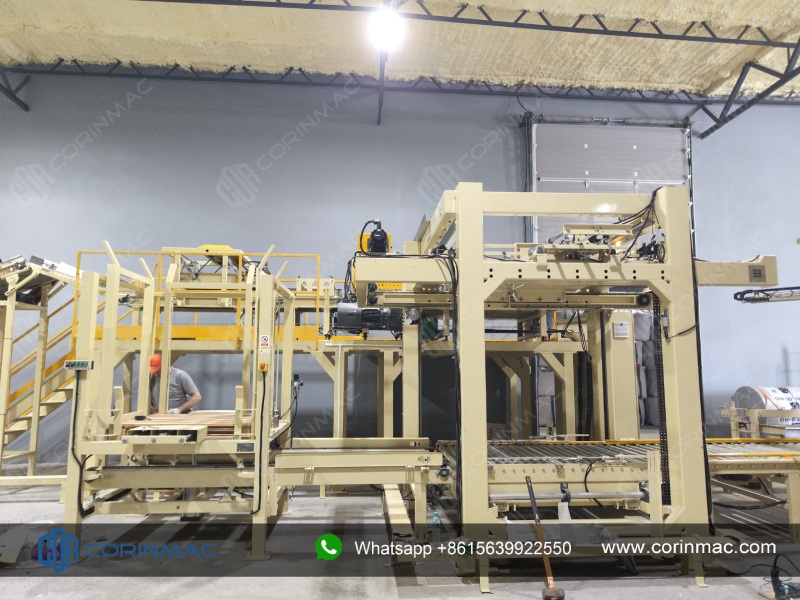

• Layer type palletizer — similar working principle to high-position palletizer, stacks bags layer by layer

• Servo-driven coding mechanism, up to 1200 bags/hour

• Built-in pallet library automatically feeds empty pallets to stacking position

• Preset stacking patterns, fast product changeover within 10 minutes

Stretch Hooding Section (Main Focus)

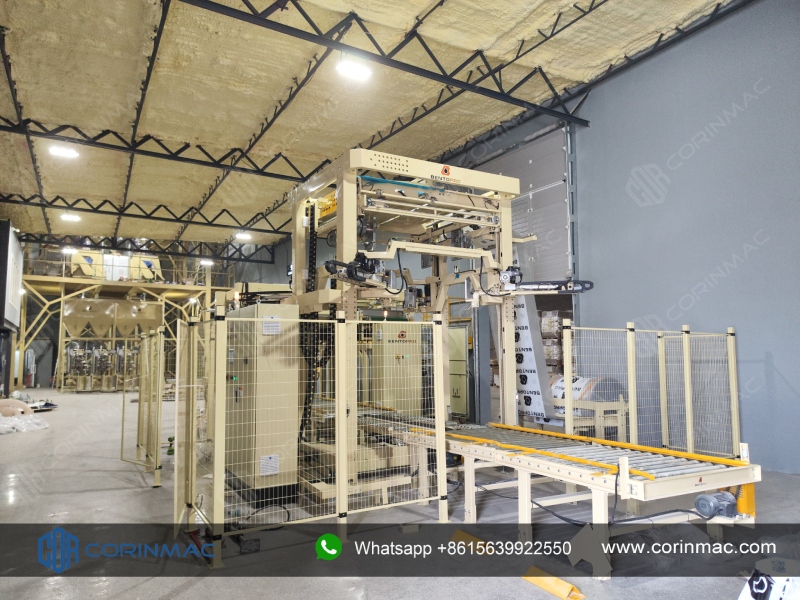

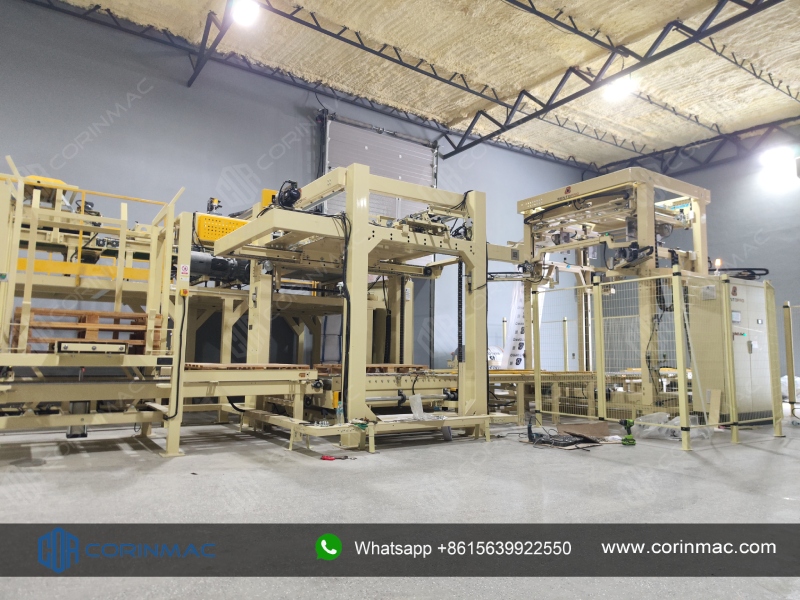

• Automatic stretch hooder with cold stretch technology

• Film covers pallet and products from top to bottom — dust-proof, moisture-proof, hermetically sealed

• Film thickness: 0.1mm (80-150 microns), material per pallet: ~500-560g

• Far less material than traditional stretch wrap, no tearing or re-wrapping needed

• Finished pallet ready for forklift transport

CORINMAC provides customized dry mortar production and packaging solutions worldwide. Every line is tailored to the client’s site, capacity, and material requirements.
