Description:

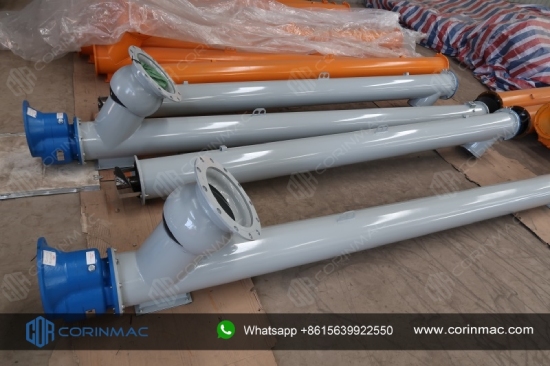

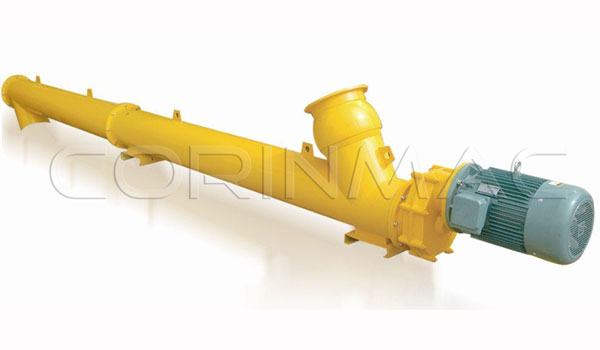

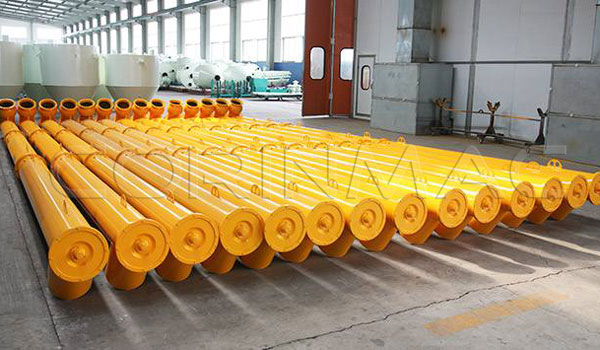

Screw conveyor

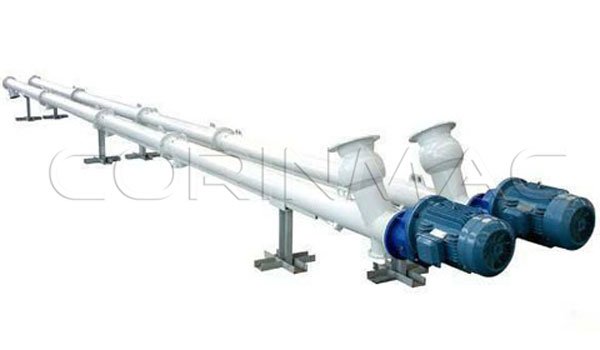

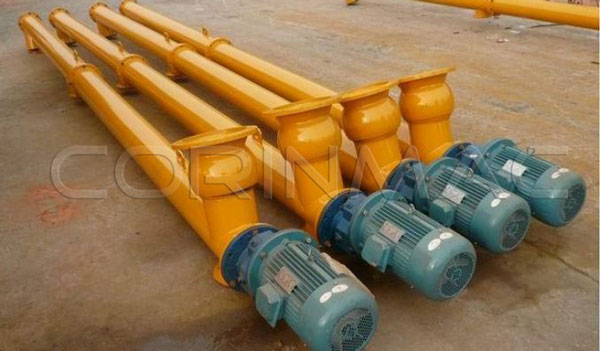

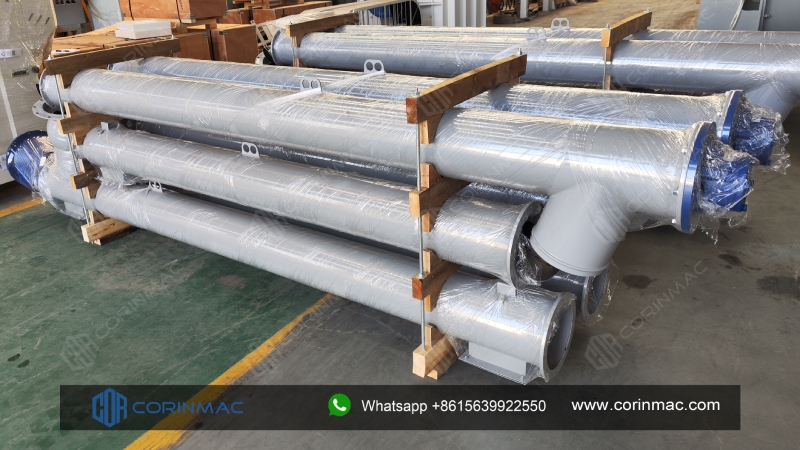

The screw conveyor (screws) are designed for horizontal and inclined transportation of small lumpy, granular, dust-like, explosion-proof, non-aggressive materials of various origins. Screw conveyors are used as feeders, batchers in the production of dry mortar.

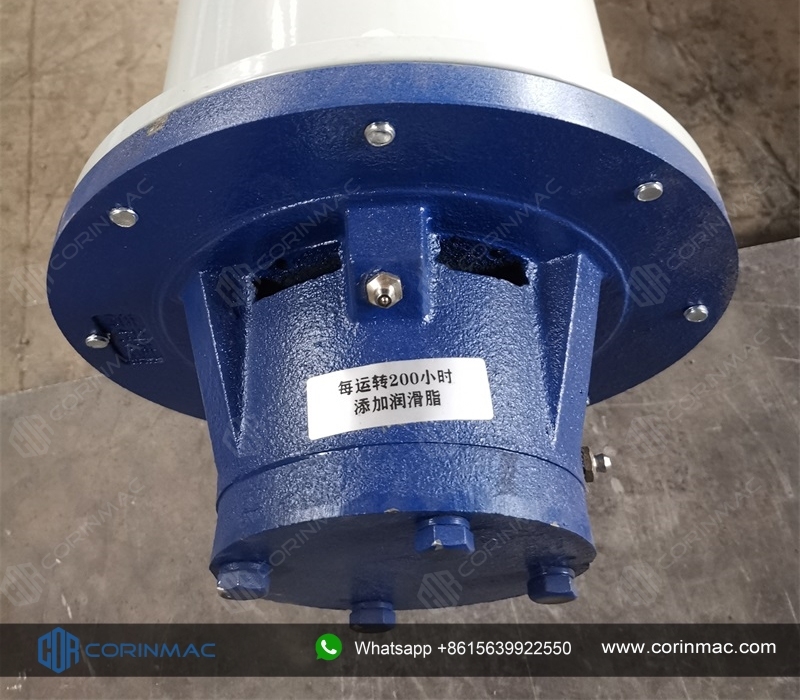

The external bearing is adopted to prevent dust from entering and prolong the service life.

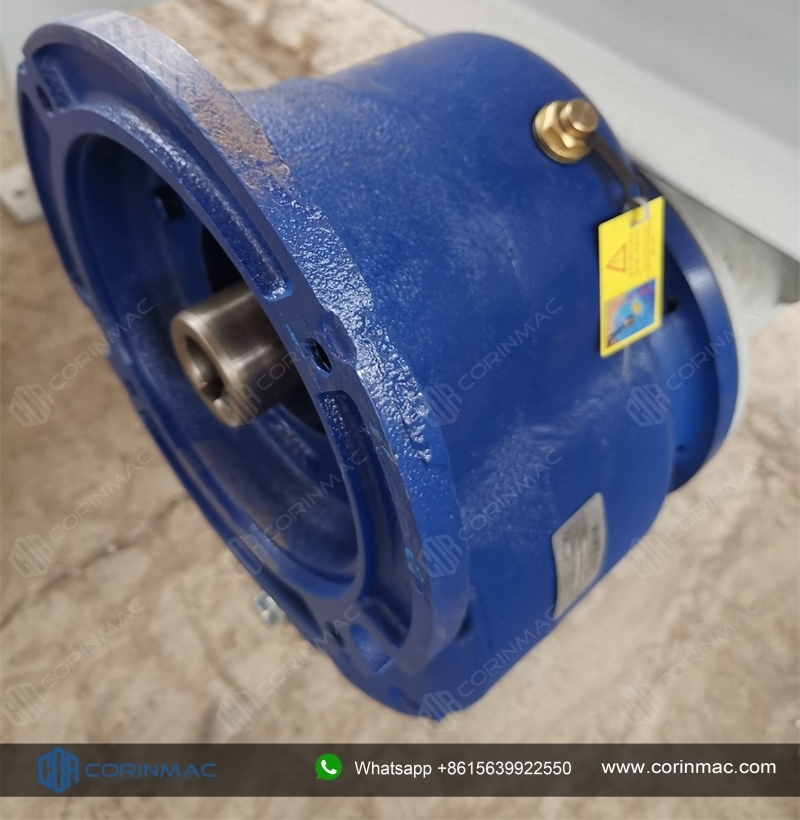

High-quality reducer, stable and reliable.
The simplicity of the design, high performance, reliability and unpretentiousness of screw conveyors determine their widespread use in various areas of production activity associated with the movement of large volumes of bulk material.
 |
 |
Elevator
 |
 |
The bucket elevator is designed for continuous vertical transportation of bulk materials such as sand, gravel, crushed stone, peat, slag, coal, etc. in the production of building materials, at chemical, metallurgical, machine-building enterprises, at coal preparation plants and other industries. Elevators are used only for lifting loads from the starting point to the final point, without the possibility of intermediate loading and unloading.
Bucket elevators (bucket elevators) consist of a traction body with buckets rigidly attached to it, a drive and tensioning device, loading and unloading shoes with branch pipes, and a casing. The drive is carried out using a reliable geared motor. The elevator can be designed with a left or right drive (located on the side of the loading pipe). The elevator (bucket elevator) design provides for a brake or stop to prevent spontaneous movement of the working body in the opposite direction.

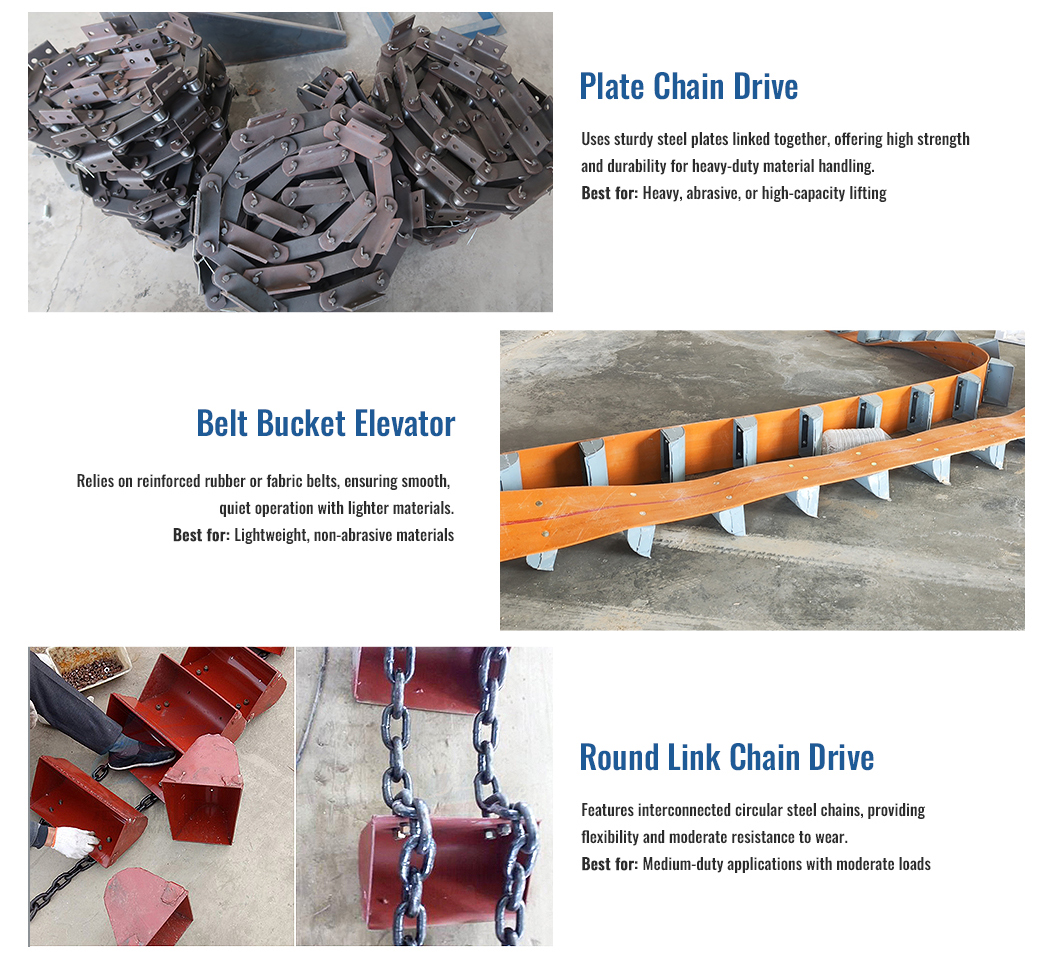

Choose different forms according to the different materials to be lifted.
 |
 |

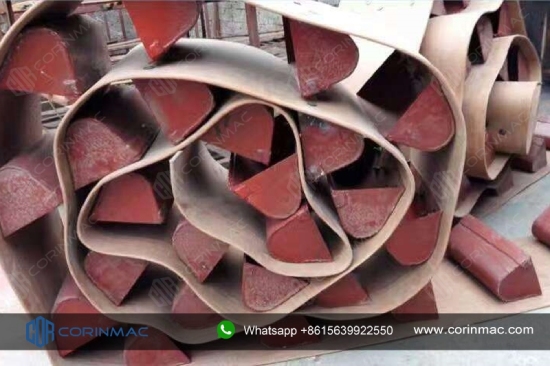

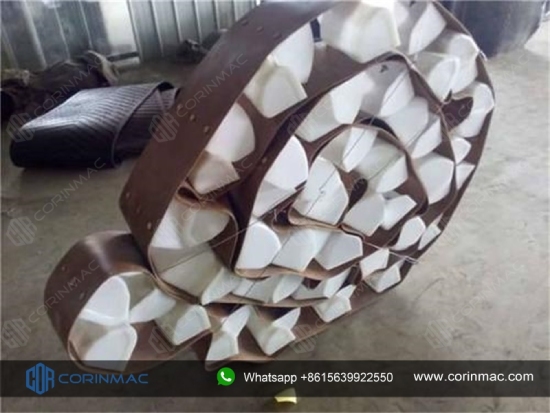

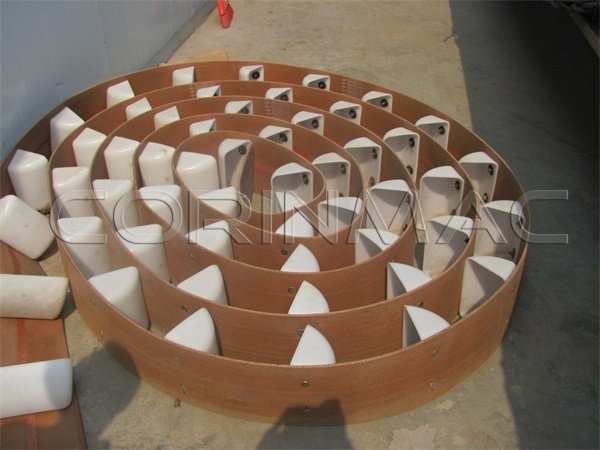

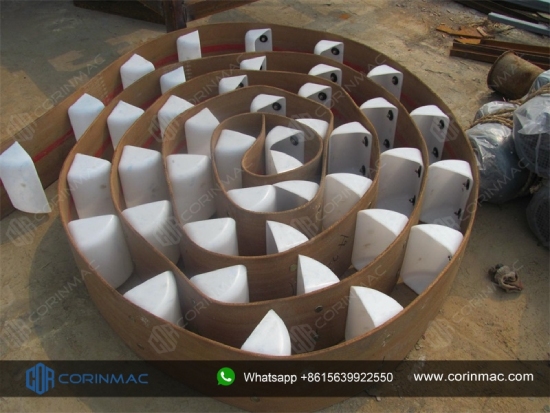

Belt + plastic bucket
 |
 |

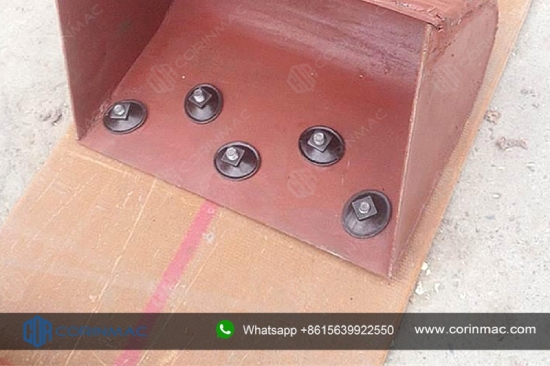

Belt + Steel Bucket
 |
 |

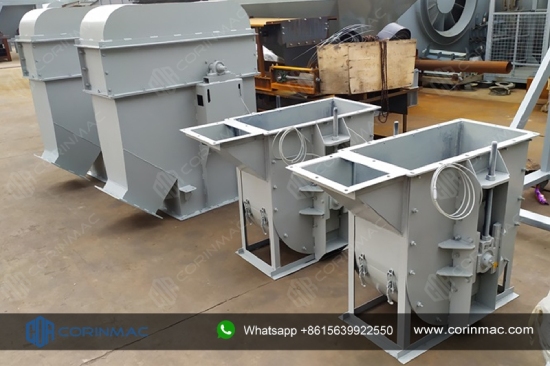

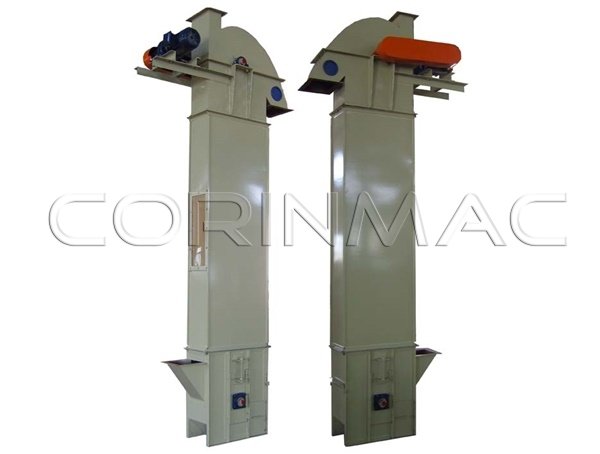

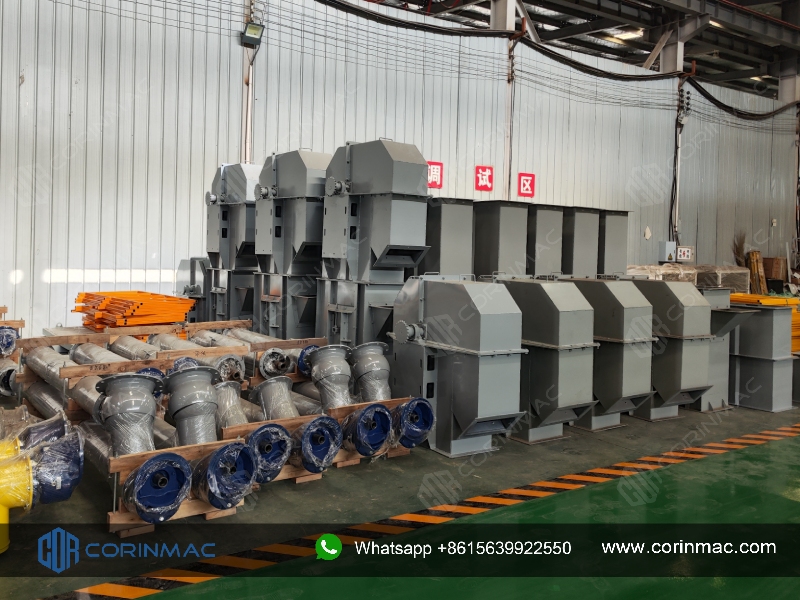

Bucket elevator appearance
 |
 |

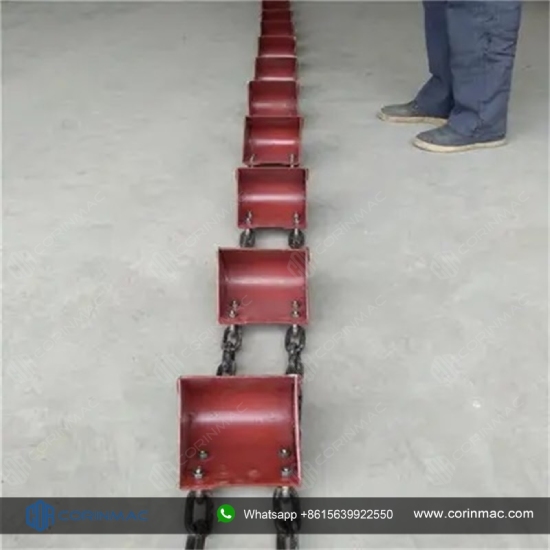

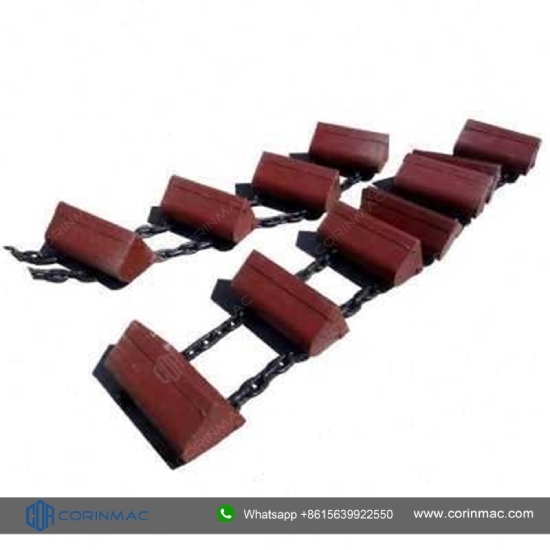

Chain type

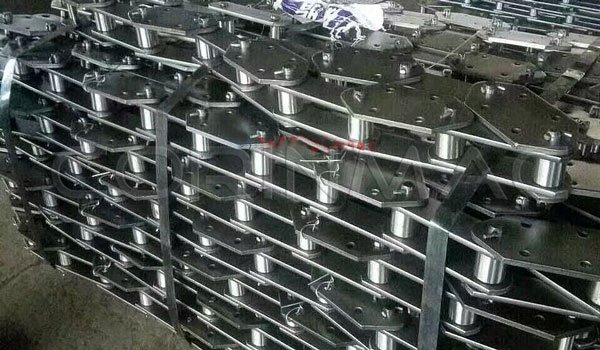

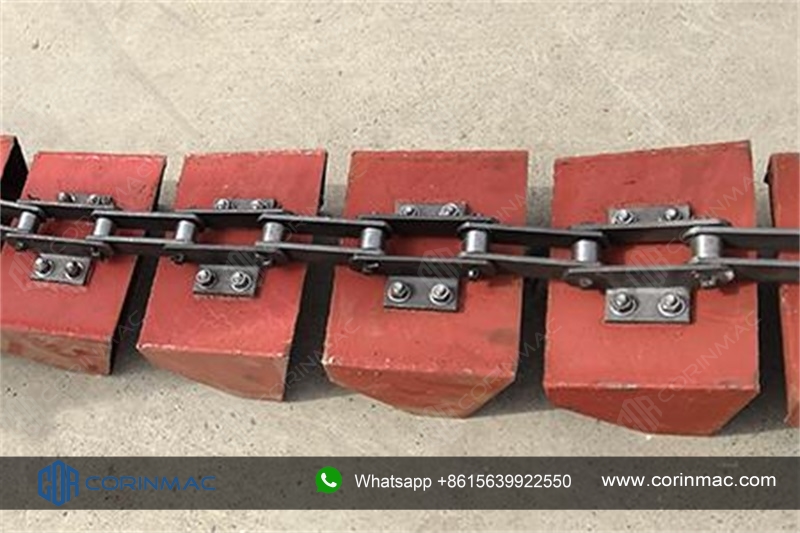

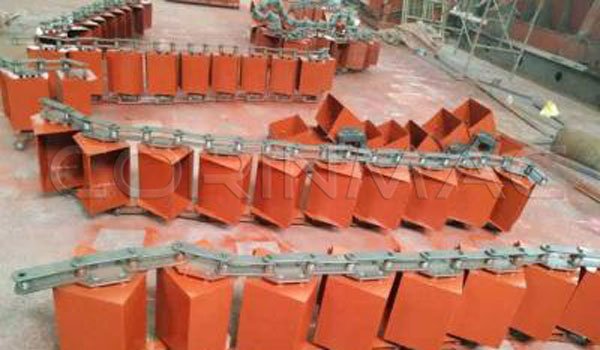

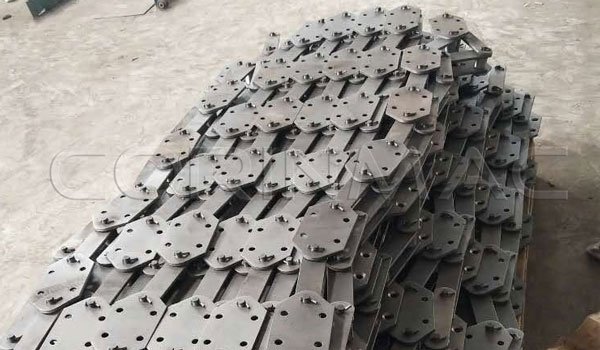

Plate chain bucket elevator

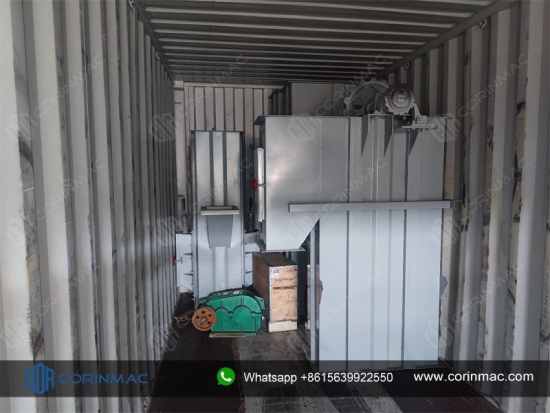

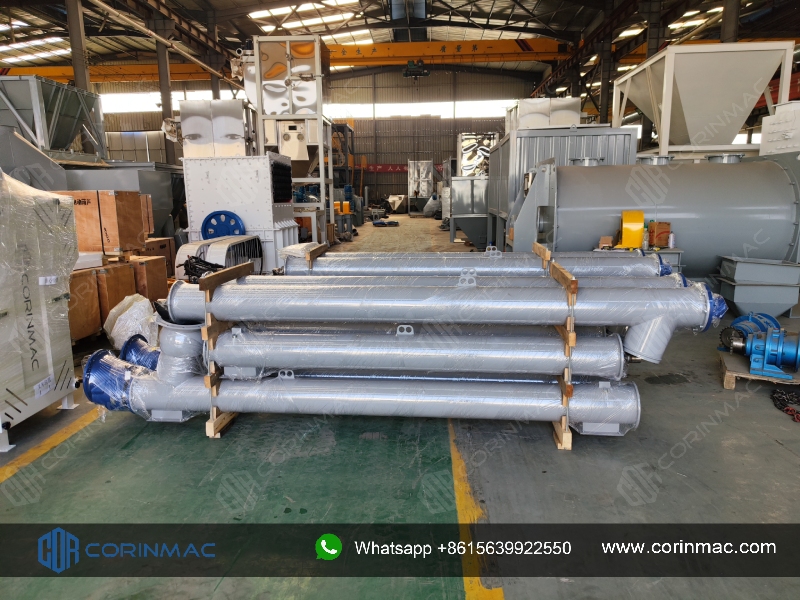

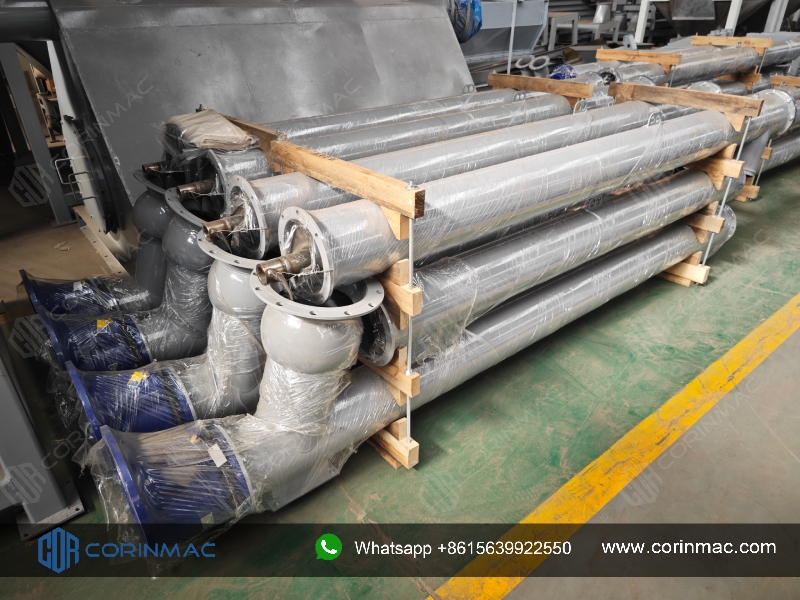

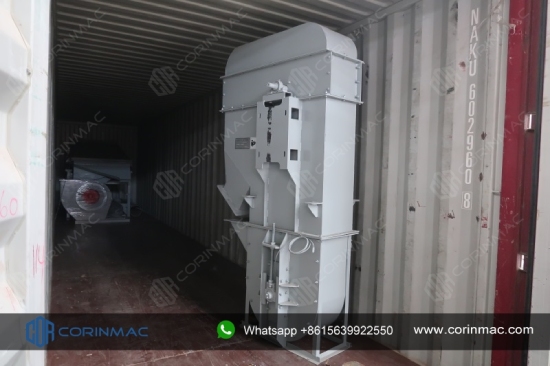

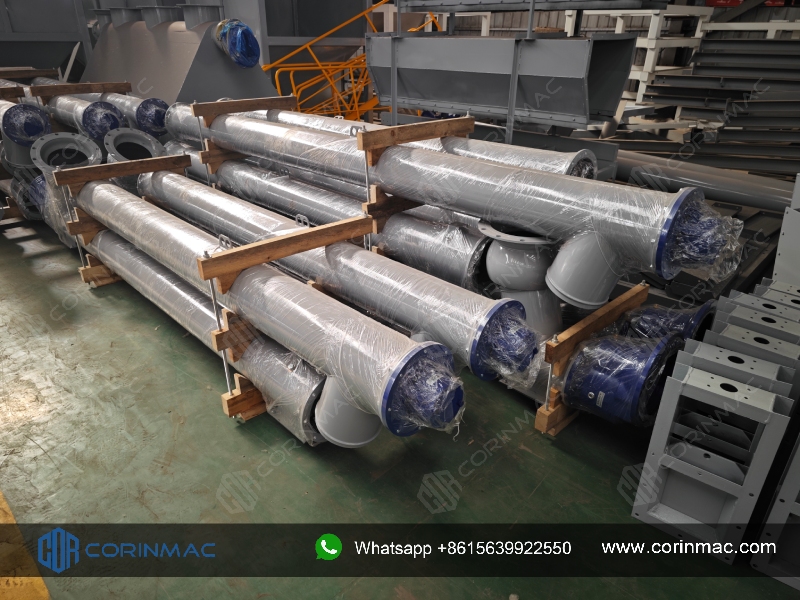

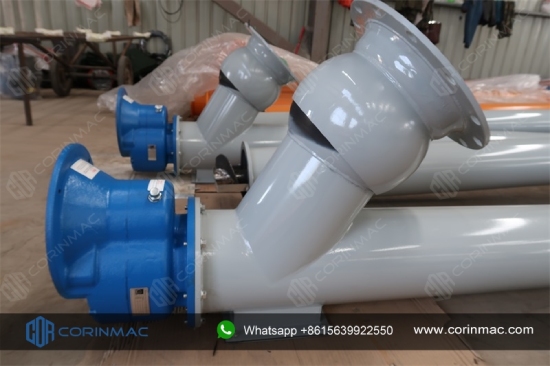

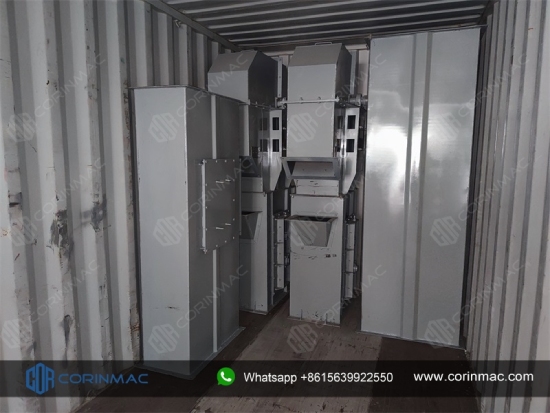

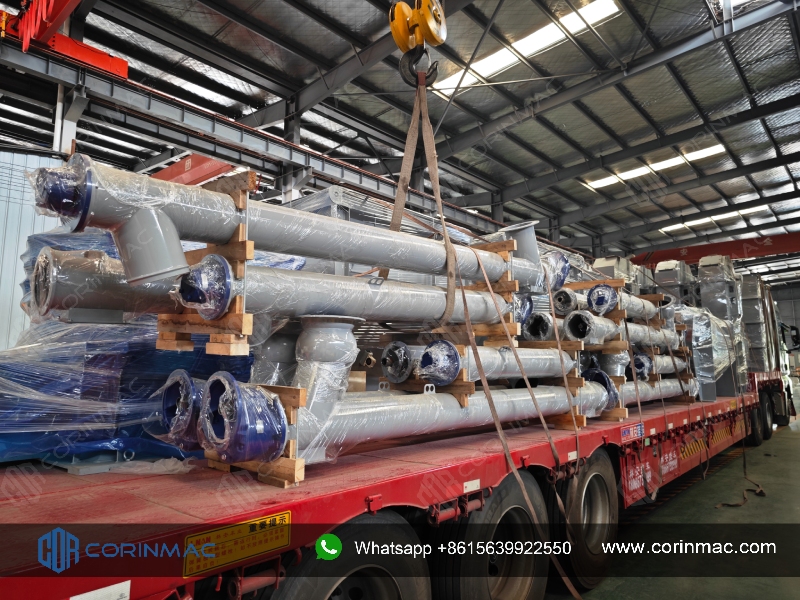

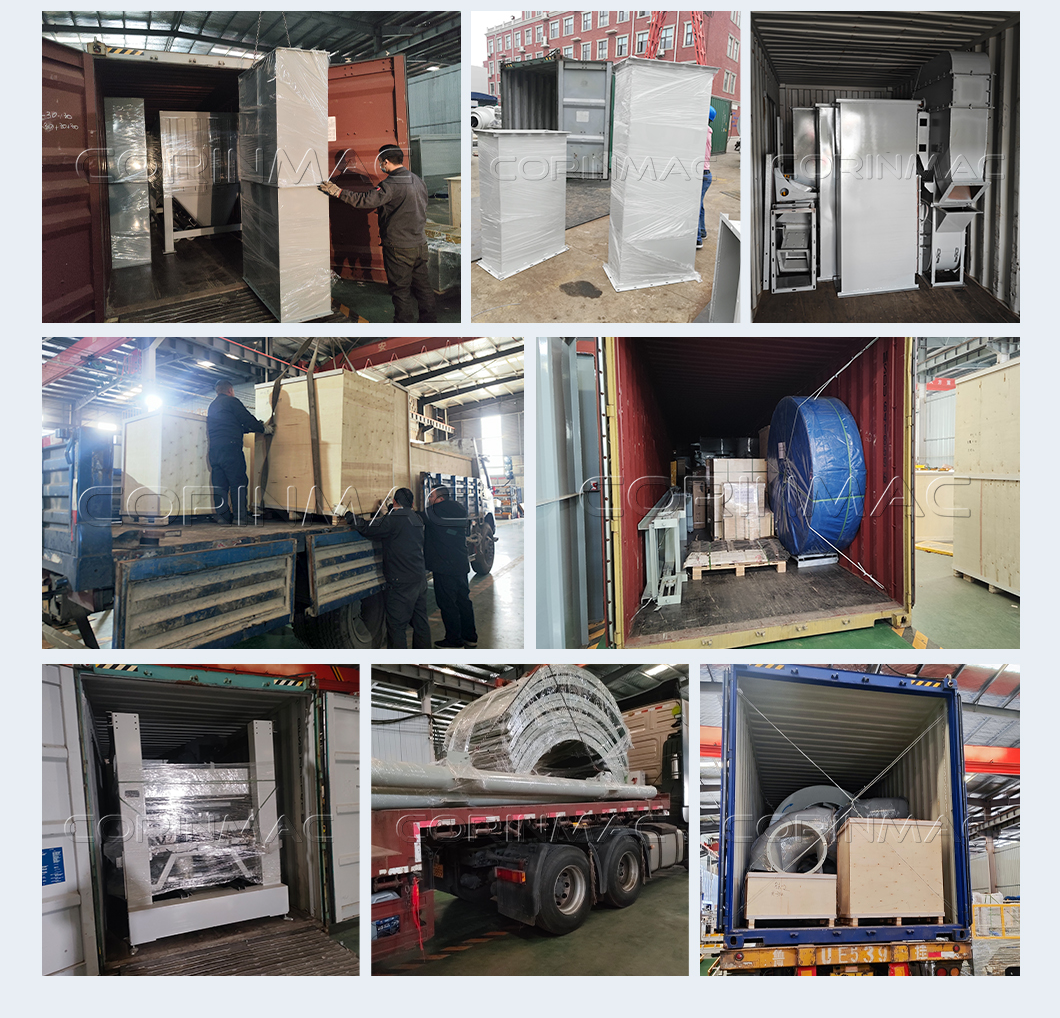

Delivery photos
 |
 |
Successful Project

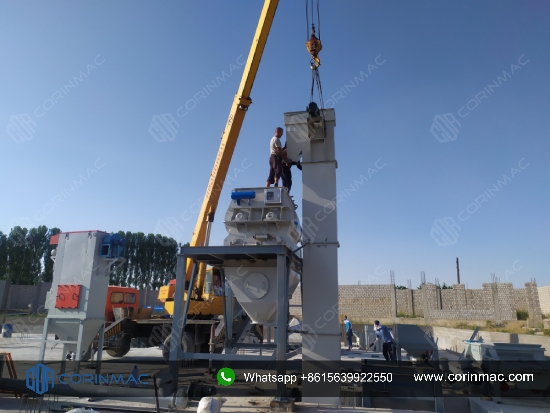

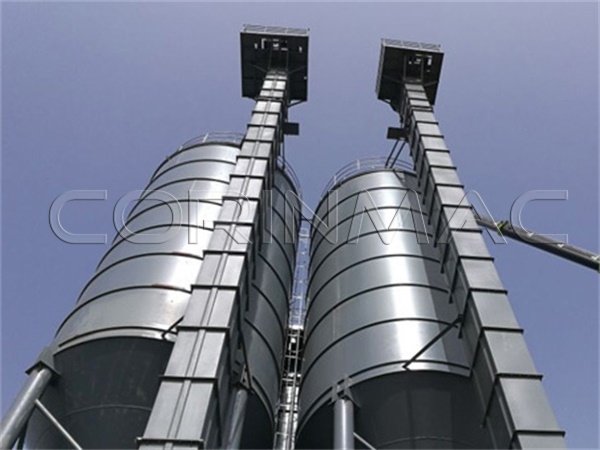

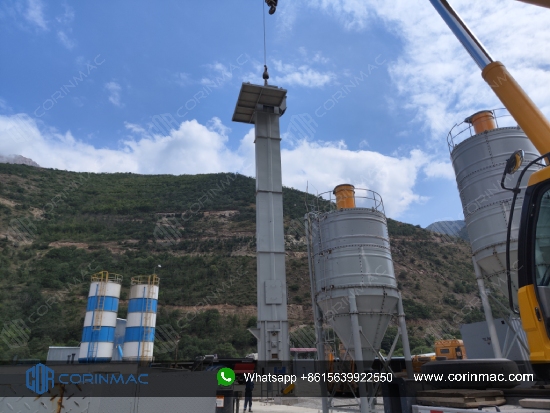

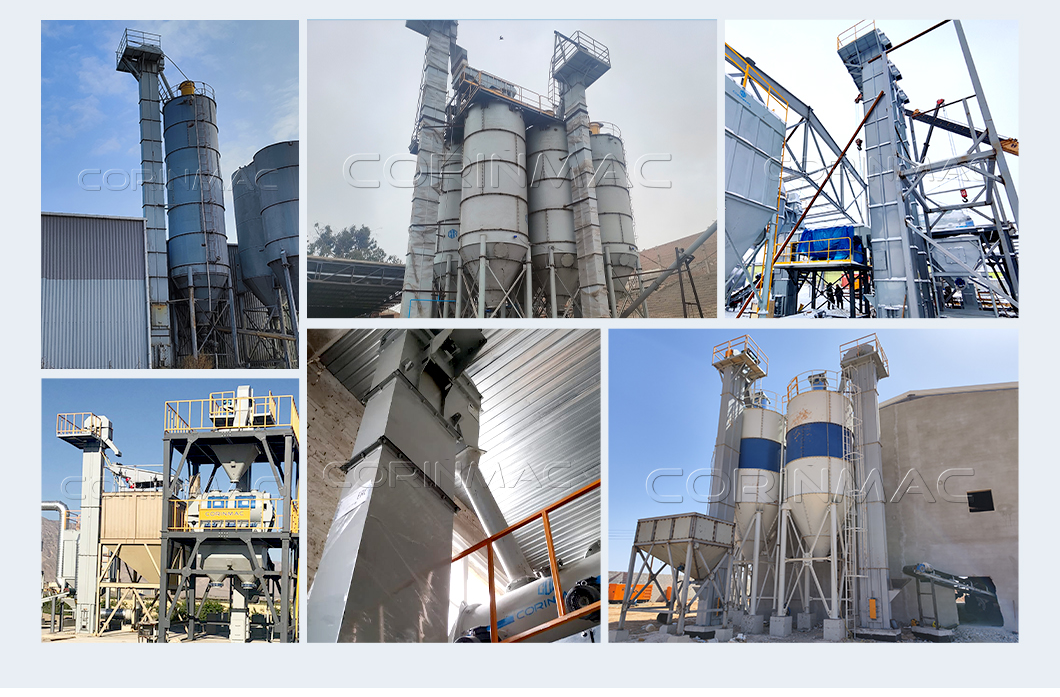

We have many thematic sites in more than 40 countries around the world. Part of our installation sites are as follows:

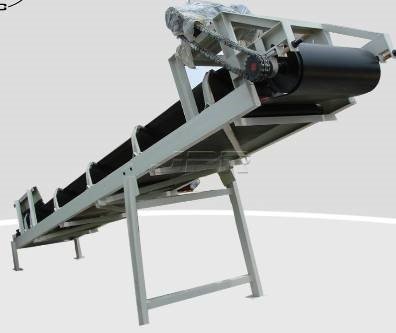

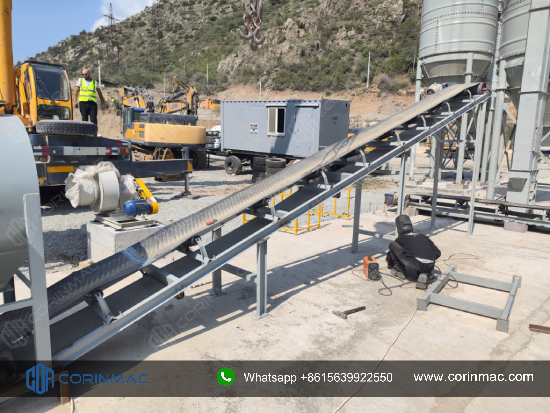

Belt conveyor

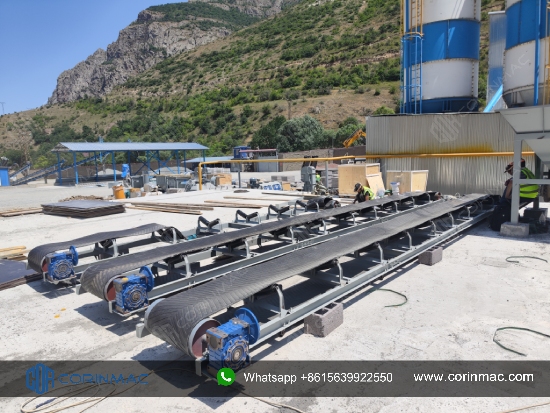

The belt conveyor is designed for the transportation of bulk, lumpy or briquetted materials along zonal, inclined and combined routes. In order to increase productivity and reduce labor intensity, this equipment can be used in conjunction with stationary and mobile crushing plants. They are widely used in the mining and processing industry, metallurgy, and construction.
 |
 |
Specifications
Screw Conveyor
|
Model |
LSY100 |
LSY120 |
LSY140 |
LSY160 |
LSY200 |
LSY250 |
LSY300 |
|
|
Screw dia. (mm) |
Φ88 |
Φ108 |
Φ140 |
Φ163 |
Φ187 |
Φ240 |
Φ290 |
|
|
Shell outside dia.(mm) |
Φ114 |
Φ133 |
Φ168 |
Φ194 |
Φ219 |
Φ273 |
Φ325 |
|
|
Working angle |
0°-60° |
0°-60° |
0°-60° |
0°-60° |
0°-60° |
0°-60° |
0°-60° |
|
|
Coverying length（m） |
8 |
8 |
10 |
12 |
14 |
15 |
18 |
|
|
Cement density ρ=1.2t/m3，Angle 35°-45° |
||||||||
|
Capacity（t/h） |
6 |
12 |
20 |
35 |
55 |
80 |
110 |
|
|
According to the density of fly ash ρ=0.7t/m3，Angle 35°-45° |
||||||||
|
Capacity (t/h) |
3 |
5 |
8 |
20 |
32 |
42 |
65 |
|
|
Motor |
Power (kW) L≤7 |
0.75-1.1 |
1.1-2.2 |
2.2-3 |
3-5.5 |
3-7.5 |
4-11 |
5.5-15 |
|
Power (kW) L＞7 |
1.1-2.2 |
2.2-3 |
4-5.5 |
5.5-11 |
7.5-11 |
11-18.5 |
15-22
|
|
Technical Parameters of Chain Bucket Elevator
|
Model |
Capacity（t/h） |
Bucket |
Speed（m/s） |
Lifting height（m） |
Power（kw） |
Max feeding size（mm） |
|
|
Volume（L） |
Distance（mm） |
||||||
|
TH160 |
21-30 |
1.9-2.6 |
270 |
0.93 |
3-24 |
3-11 |
20 |
|
TH200 |
33-50 |
2.9-4.1 |
270 |
0.93 |
3-24 |
4-15 |
25 |
|
TH250 |
45-70 |
4.6-6.5 |
336 |
1.04 |
3-24 |
5,5-22 |
30 |
|
TH315 |
74-100 |
7.4-10 |
378 |
1.04 |
5-24 |
7,5-30 |
45 |
|
TH400 |
120-160 |
12-16 |
420 |
1.17 |
5-24 |
11-37 |
55 |
|
TH500 |
160-210 |
19-25 |
480 |
1.17 |
5-24 |
15-45 |
65 |
|
TH630 |
250-350 |
29-40 |
546 |
1.32 |
5-24 |
22-75 |
75
|
Technical parameters of plate chain bucket elevator
|
Model |
Meaning volume （m³/h） |
Material particle size can reach （mm） |
Material loose density（t/m³) |
Can reach the elevation(m) |
Power range （Kw） |
Fight speed (m/s) |
|
NE15 |
10-15 |
40 |
0.6-2.0 |
35 |
1.5-4.0 |
0.5 |
|
NE30 |
18.5-31 |
55 |
0.6-2.0 |
50 |
1.5-11 |
0.5 |
|
NE50 |
35-60 |
60 |
0.6-2.0 |
45 |
1.5-18.5 |
0.5 |
|
NE100 |
75-110 |
70 |
0.6-2.0 |
45 |
5.5-30 |
0.5 |
|
NE150 |
112-165 |
90 |
0.6-2.0 |
45 |
5.5-45 |
0.5 |
|
NE200 |
170-220 |
100 |
0.6-1.8 |
40 |
7.5-55 |
0.5 |
|
NE300 |
230-340 |
125 |
0.6-1.8 |
40 |
11-75 |
0.5 |
|
NE400 |
340-450 |
130 |
0.6-1.8 |
30 |
18.5-90 |
0.5 |
Belt conveyor
|
Belt width（mm） |
Length（m） / Power（kw） |
Speed（m/s） |
Capacity（t/h） |
||
|
400 |
≤12/2.2 |
12-20/2.2-4 |
20-25/3.5-7.5 |
1-2.0 |
30-60 |
|
500 |
≤12/3 |
12-20/3-5.5 |
20-30/5.5-7.5 |
1-2.0 |
40-80 |
|
650 |
≤12/4 |
12-20/4-5.5 |
20-30/5.5-11 |
1-2.0 |
80-120 |
|
800 |
≤10/4 |
10-15/4-5.5 |
15-30/5.5-15 |
1-2.0 |
120-200 |
|
1000 |
≤10/5.5 |
10-20/5.5-11 |
20-40/11-22 |
1-2.0 |
200-320 |
|
1200 |
≤10/7.5 |
10-20/7.7-15 |
20-40/15-30 |
1-2.0 |
300-480 |
