Spiral Ribbon Mixer
Message
The Spiral ribbon mixer is mainly composed of a main shaft, double-layer or multi-layer ribbon. The spiral ribbon is one outside and one inside, in opposite directions, pushes the material back and forth, and finally achieves the purpose of mixing, which is suitable for stirring light materials.
Application:
The ribbon mixing equipment is often used for mixing viscous or cohesive powders and granules. It can also mix low-density powders and fibrous materials, such as putty powder, abrasives, pigments, starch, etc.
 |
 |

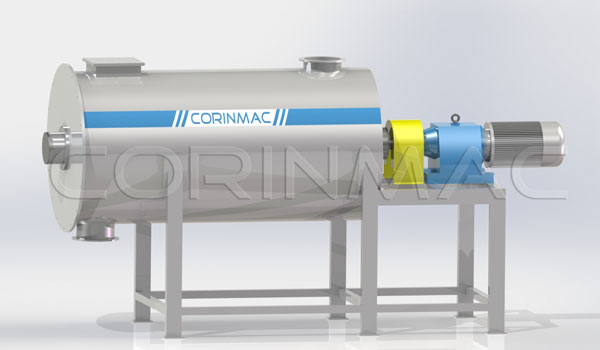

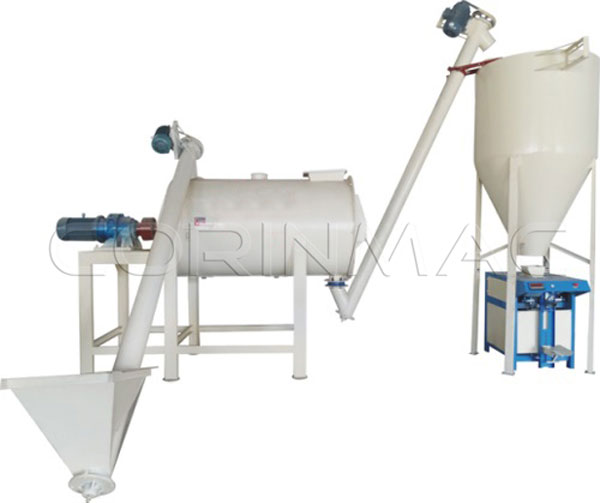

Economical Ribbon Mixer
 |
 |
Working principle:

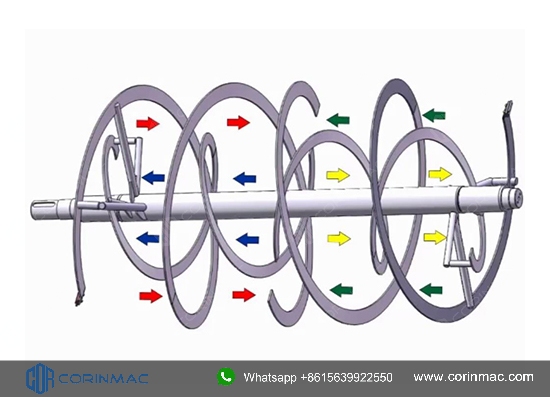

The main shaft inside the body of the spiral ribbon mixer is driven by the motor to rotate the ribbon. The thrust face of the spiral belt pushes the material to move in the spiral direction. Due to the mutual friction between the materials, the materials are rolled up and down, and at the same time, a part of the materials is also moved in the spiral direction, and the materials at the center of the spiral belt and the surrounding materials are replaced. Due to the inner and outer reverse spiral belts, the materials form a reciprocating motion in the mixing chamber, the materials are strongly stirred, and the agglomerated materials are broken. Under the action of shear, diffusion and agitation, the materials are evenly mixed.
 |
 |
Structural features:

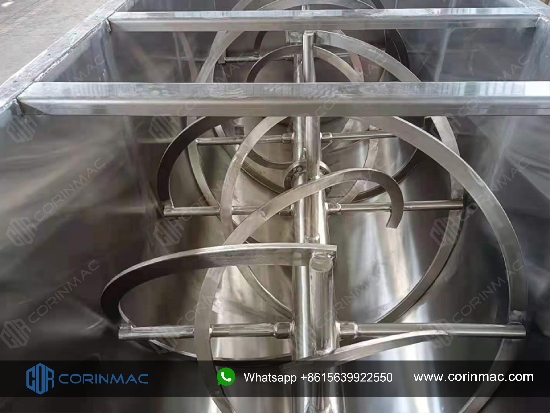

The ribbon mixer is composed of a ribbon, a mixing chamber, a driving device and a frame. The mixing chamber is a semi-cylinder or cylinder with closed ends. The upper part has an openable cover, a feeding port, and the lower part has a discharge port and a discharge valve. The main shaft of the ribbon mixer is equipped with a spiral double ribbon, and the inner and outer layers of the ribbon are rotated in opposite directions. The cross-sectional area of the spiral ribbon, the clearance between the pitch and the inner wall of the container, and the number of turns of the spiral ribbon can be determined according to the material.
 |
 |
 |
 |
Specifications
| Modle | Volume (m³) | Capacity (kg/time) | Speed (r/min) | Power (kw) | Weight (t) | Overall size (mm) |
| LH-0.5 | 0.3 | 300 | 62 | 7.5 | 900 | 2670x780x1240 |
| LH -1 | 0.6 | 600 | 49 | 11 | 1200 | 3140x980x1400 |
| LH -2 | 1.2 | 1200 | 33 | 15 | 2000 | 3860x1200x1650 |
| LH -3 | 1.8 | 1800 | 33 | 18.5 | 2500 | 4460x1300x1700 |
| LH -4 | 2.4 | 2400 | 27 | 22 | 3600 | 4950x1400x2000 |
| LH -5 | 3 | 3000 | 27 | 30 | 4220 | 5280x1550x2100 |
| LH -6 | 3.6 | 3600 | 27 | 37 | 4800 | 5530x1560x2200 |
| LH -8 | 4.8 | 4800 | 22 | 45 | 5300 | 5100x1720x2500 |
| LH -10 | 6 | 6000 | 22 | 55 | 6500 | 5610x1750x2650 |

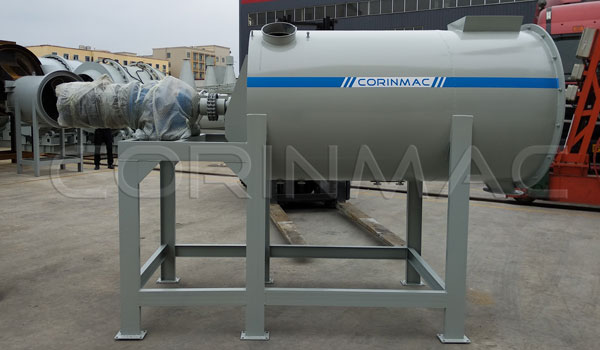

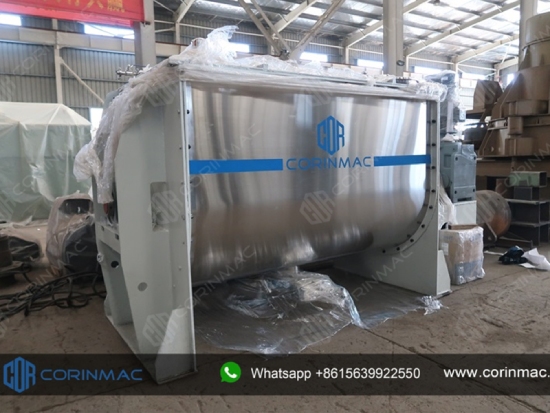

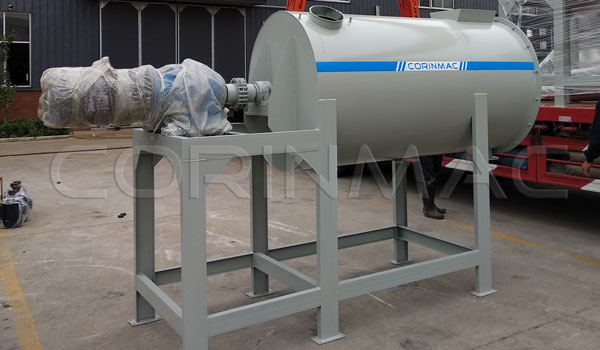

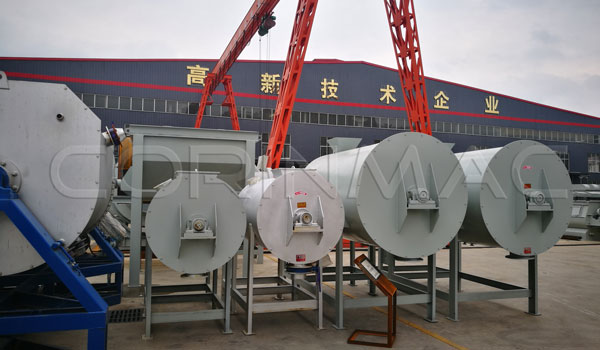

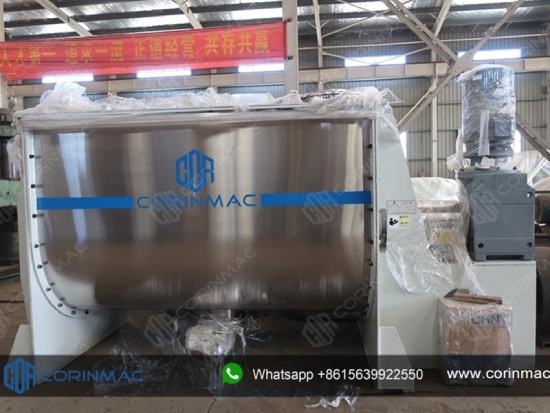

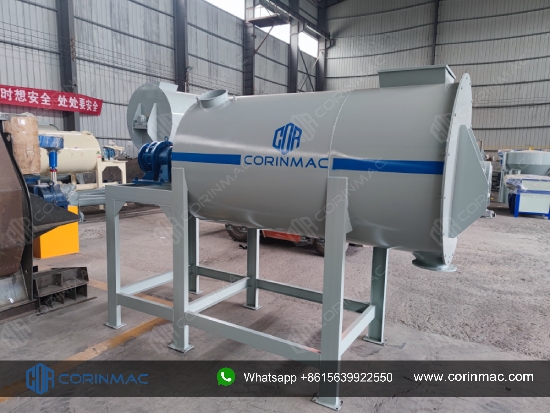

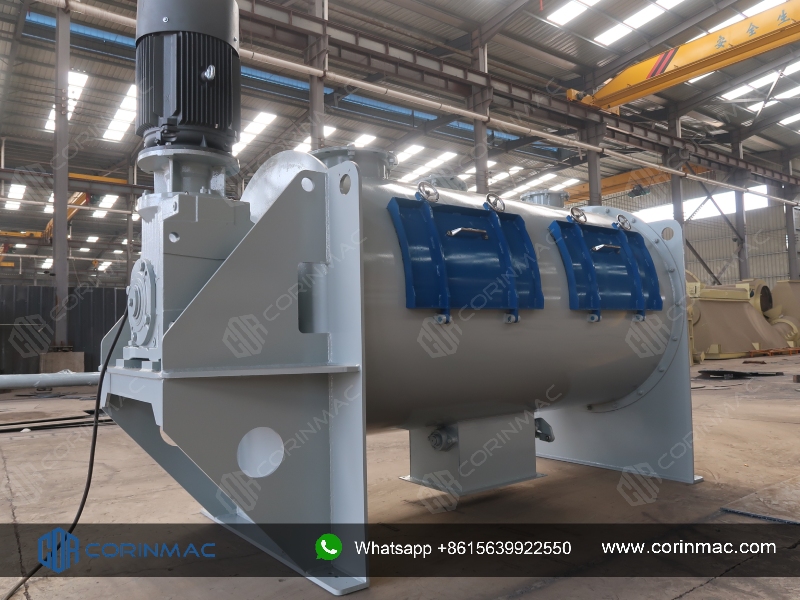

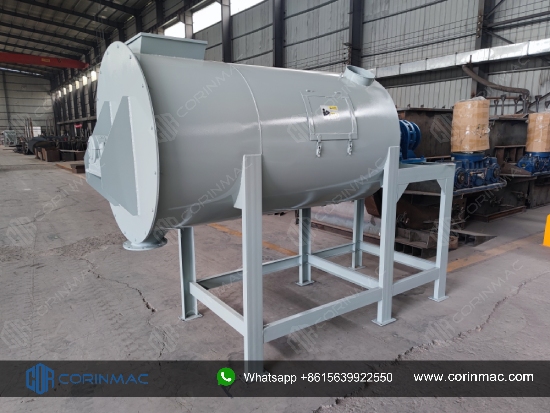

Delivery Photos

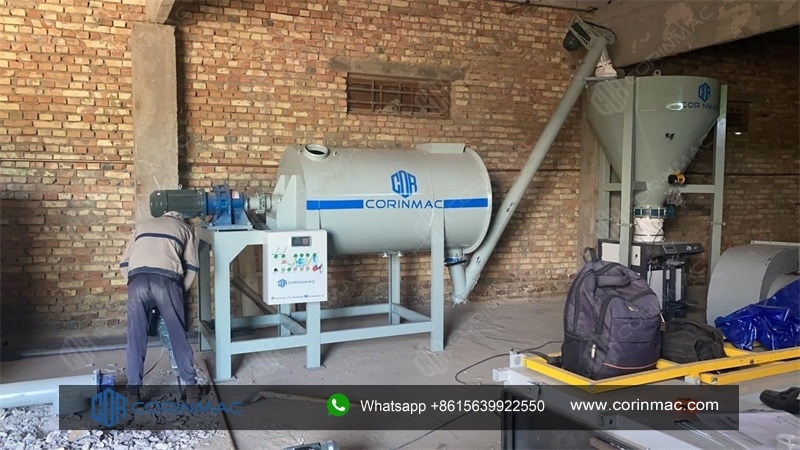

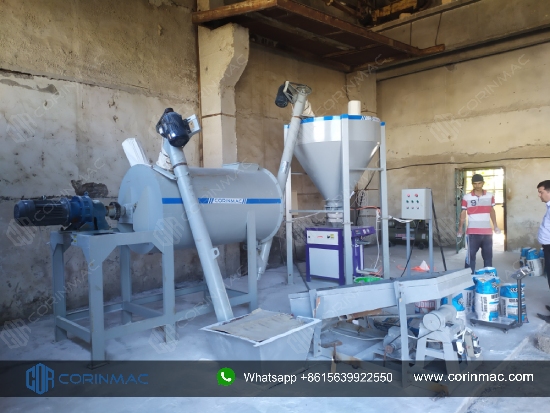

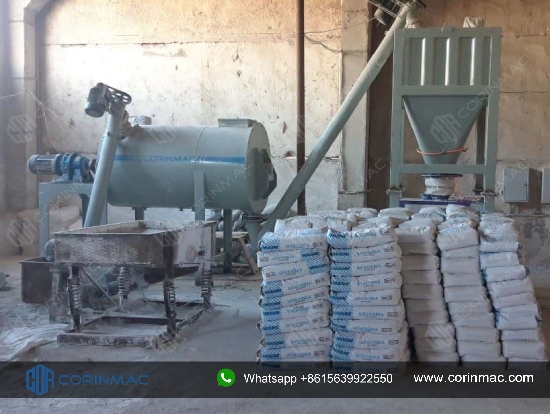

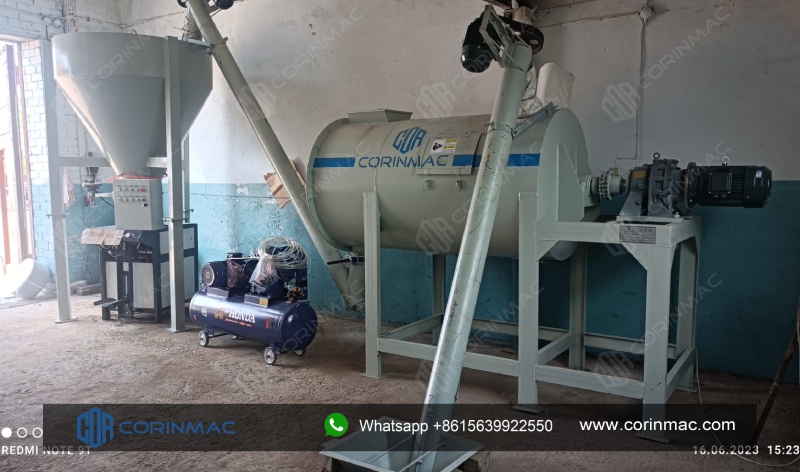

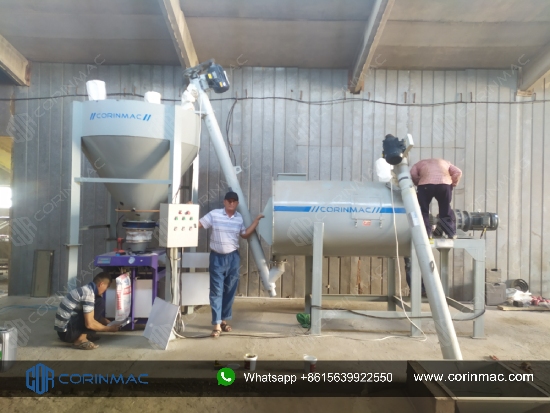

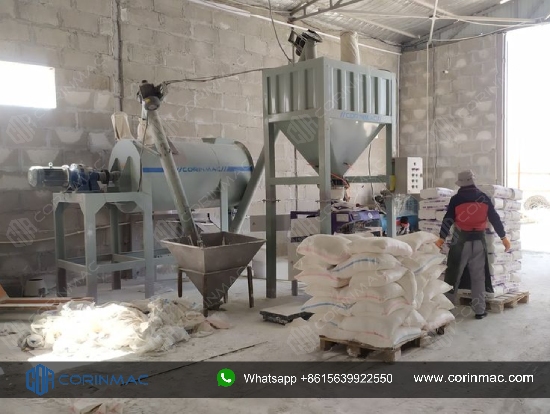

User Case
Company Profile
CORINMAC-Cooperation& Win-Win, this is the origin of our team name.
This is also our operating principle: through teamwork and cooperation with customers, create value for individuals and customers, and then realize the value of our company.
Since its founding in 2006, CORINMAC has been a pragmatic and efficient company. We are committed to finding the best solutions for our customers by providing high-quality equipment and high-level production lines to help customers achieve growth and breakthroughs, because we deeply understand that customer's success is our success!
Customer visits
Welcome to CORINMAC. CORINMAC's professional team offers you comprehensive services. No matter which country you come from, we can provide you with the most considerate support. We have extensive experience in dry mortar manufacturing plants. We will share our experience with our customers and help them start their own business and make money. We thank our customers for their trust and support!

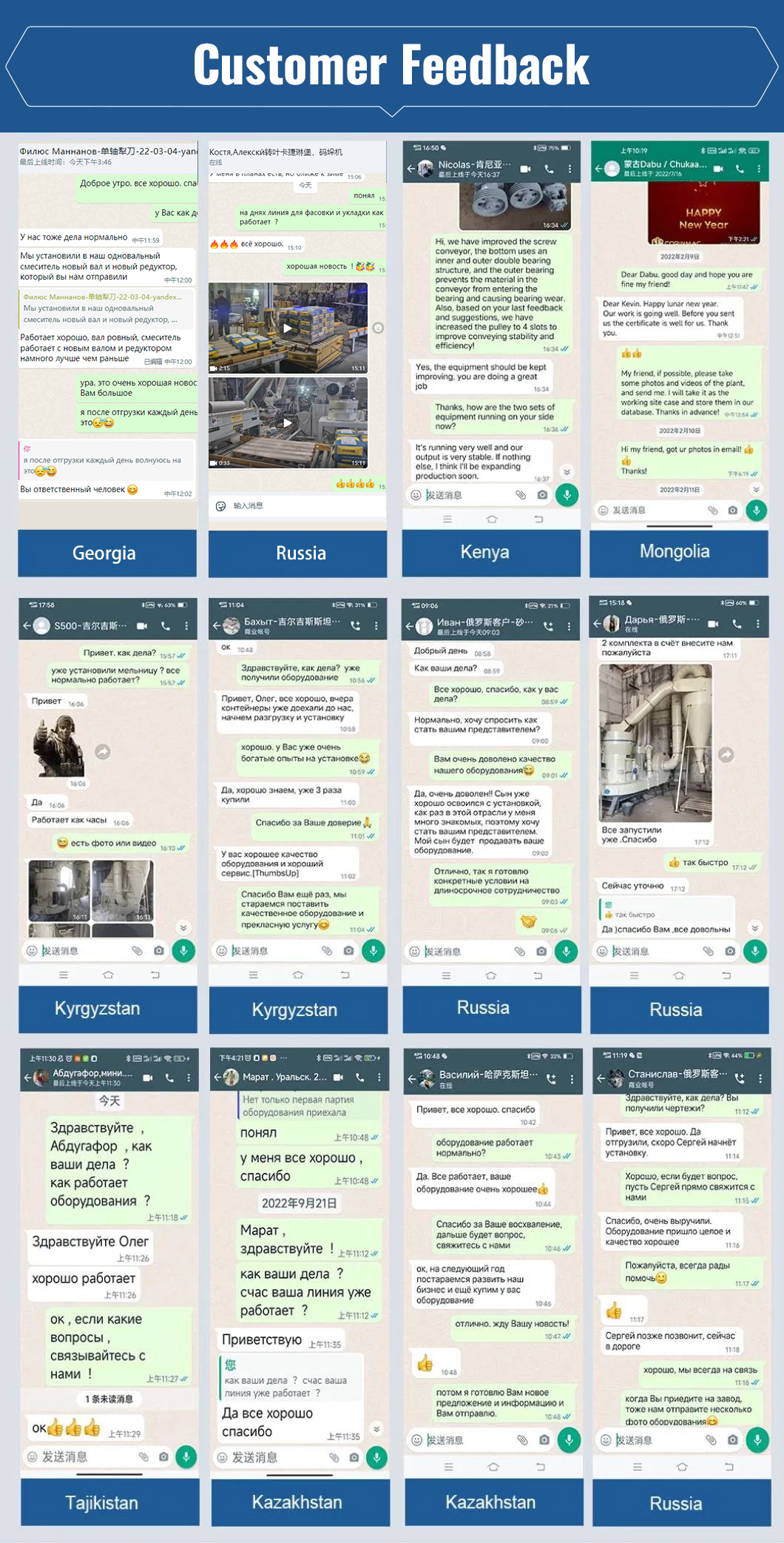

Customer feedback
