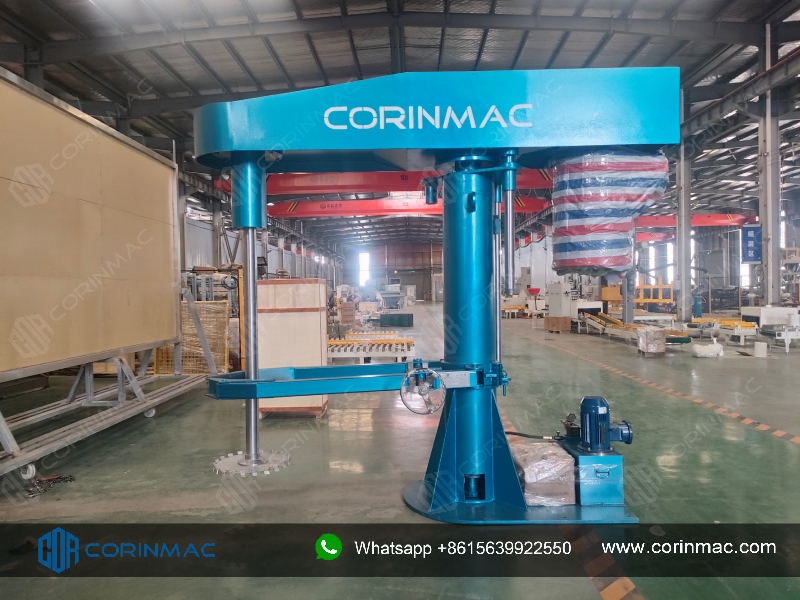

Disperser for mixing liquid paint
The disperser has the functions of dispersing and stirring, and is a product for mass production; it is equipped with a frequency converter for stepless speed regulation, which can run for a long time, with stable operation and low noise; the dispersing disc is easy to disassemble, and different forms of dispersing discs can be replaced according to the process characteristics; the lifting structure adopts hydraulic cylinder as the actuator, the lifting is stable; this product is the first choice for solid-liquid dispersion and mixing.
The disperser is suitable for the production of various materials, such as latex paint, industrial paint, water-based ink, pesticide, adhesive and other materials with a viscosity below 100,000 cps and a solid content below 80%.
The disperser is available in various sizes and models, and the parts in contact with the product, such as the stirring tank and the dispersing disc, are made of stainless steel. According to customer requirements, explosion-proof motors can be used as driving motors.
The maximum speed of the equipment can reach 1450rpm, and the line speed is above 20m/s, which can quickly and evenly disperse the powder into the liquid material; the material is evenly dispersed due to the extremely high shear force, forming a good Levitation effect.

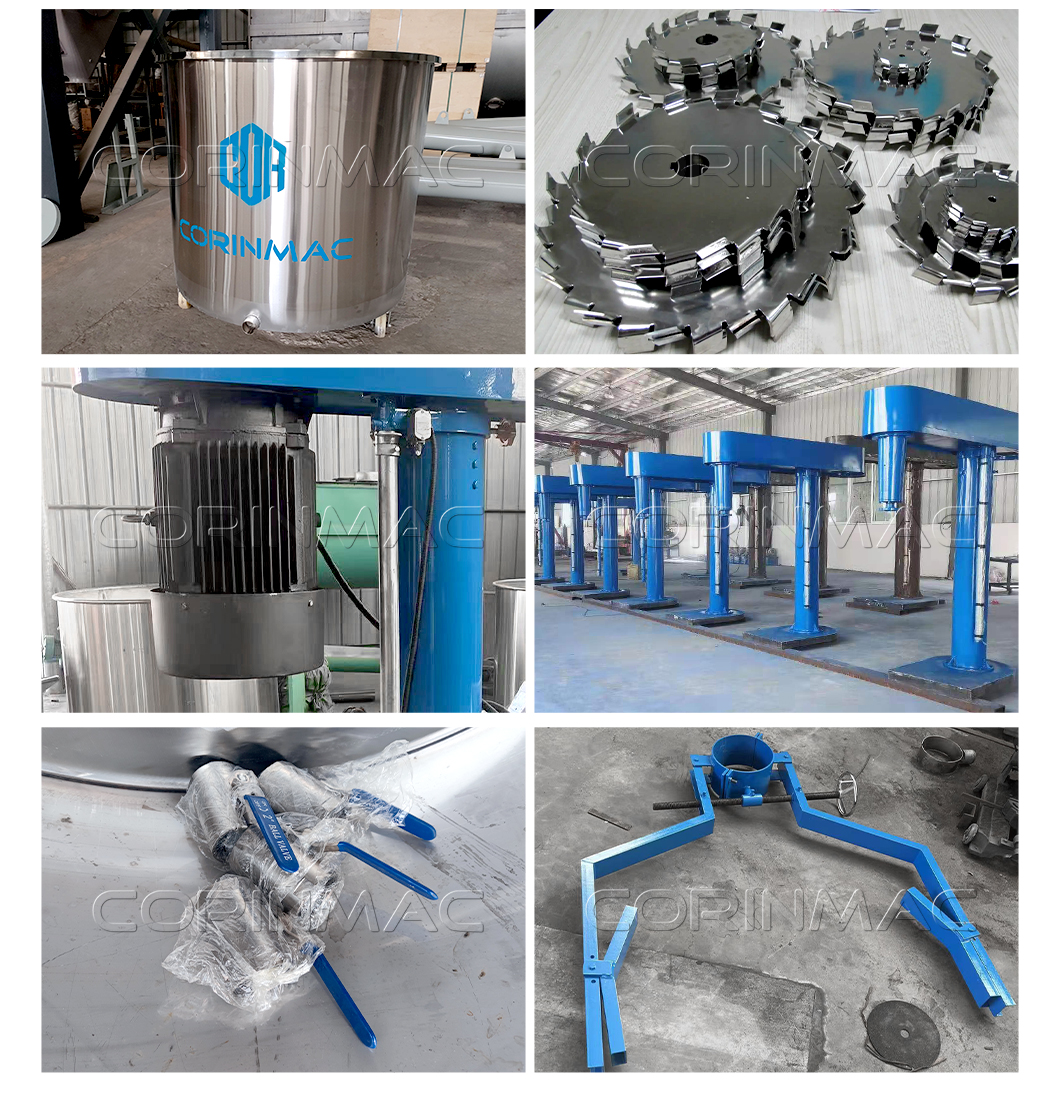

Product Details

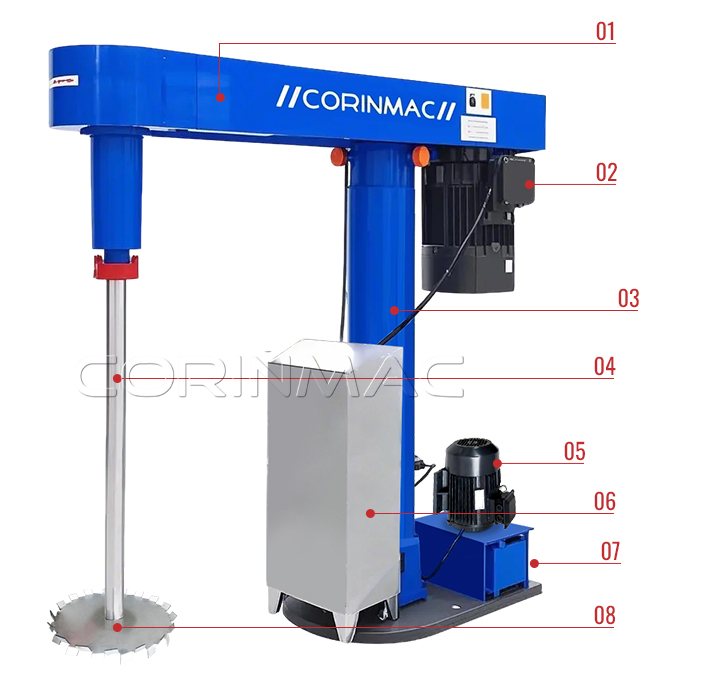

01. Host rack 02. Main motor 03. The main engine shaft hydraulic lifting, lifting stroke 1.1M-1.6M 04. Stainless steel dispersion shaft 05. Hydraulic motor 06. Control the electric box 07. Hydraulic oil tank 08. Stainless steel dispersion plate
SCOPE OF APPLICATION

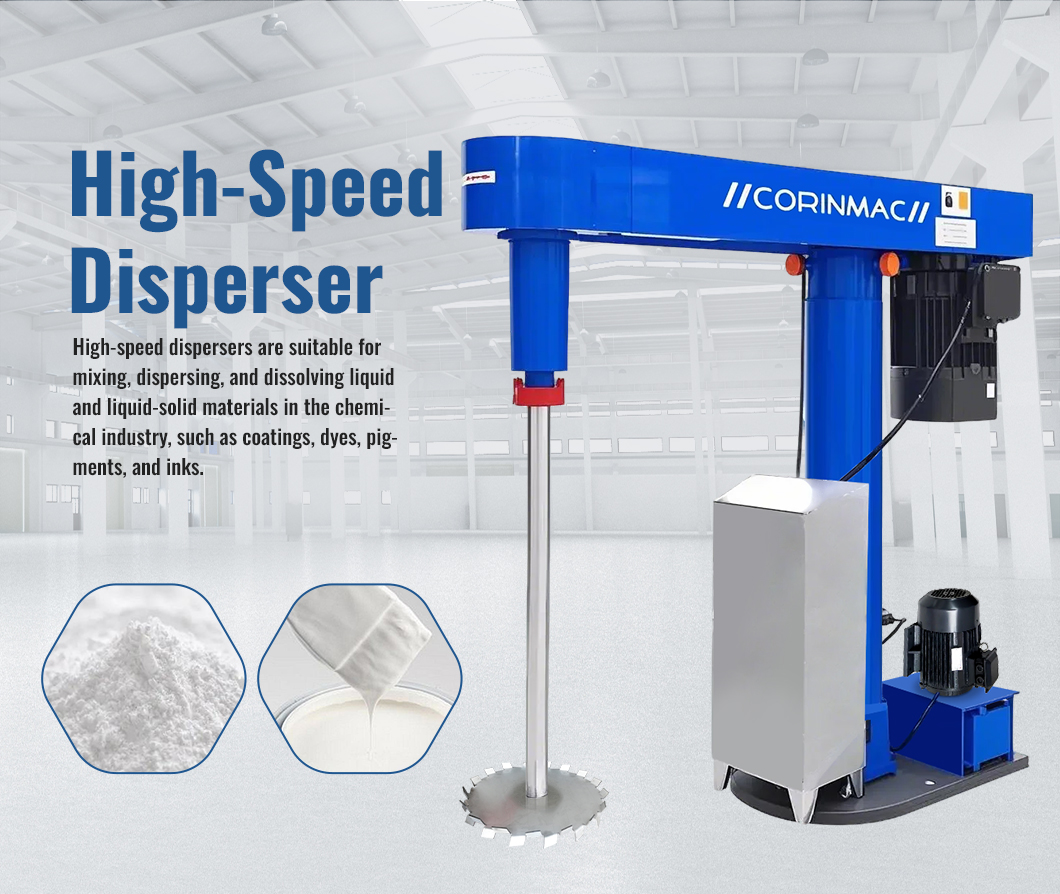

The high-speed disperser is suitable for mixing, dispersing, and dissolving liquid and liquid-solid materials in chemical industries such as coatings, dyes, pigments, and inks.
1 to 1 customized service

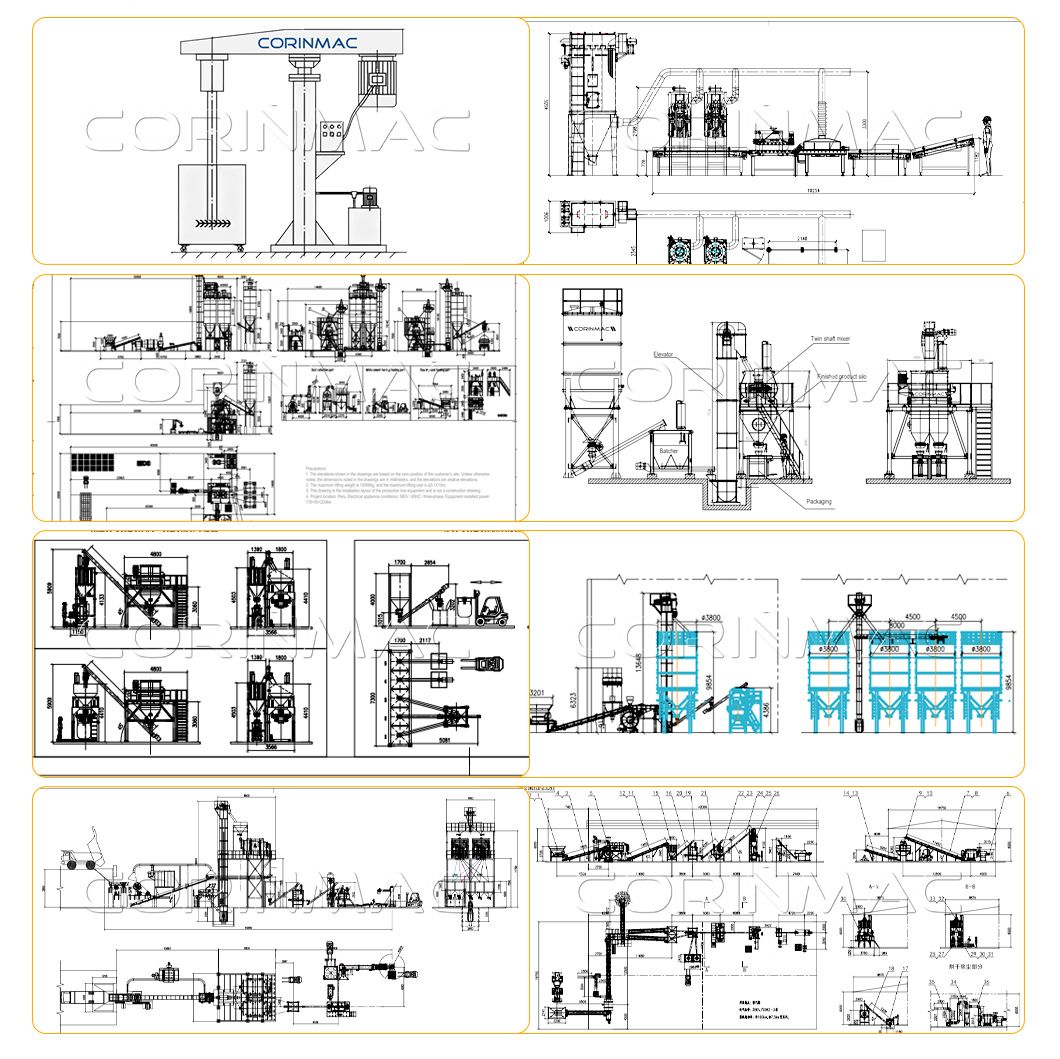

We can do different program designs and configurations according to your requirements. We will provide each customer with customized production solutions to meet the requirements of different construction sites, workshops and production equipment layout.

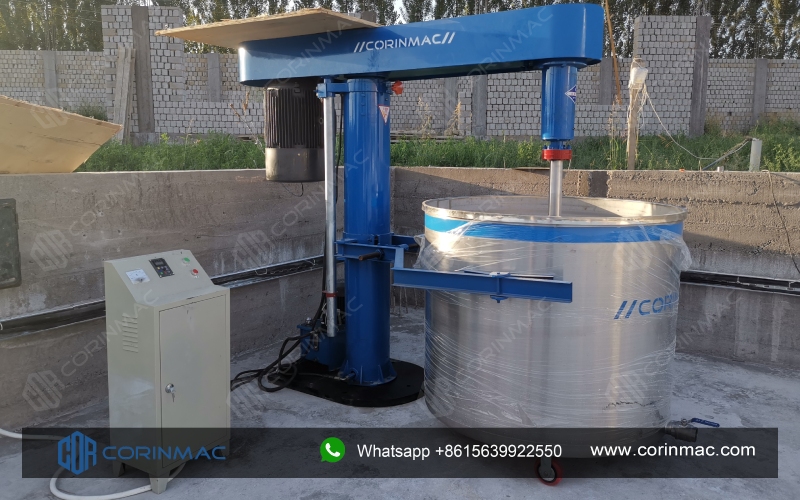

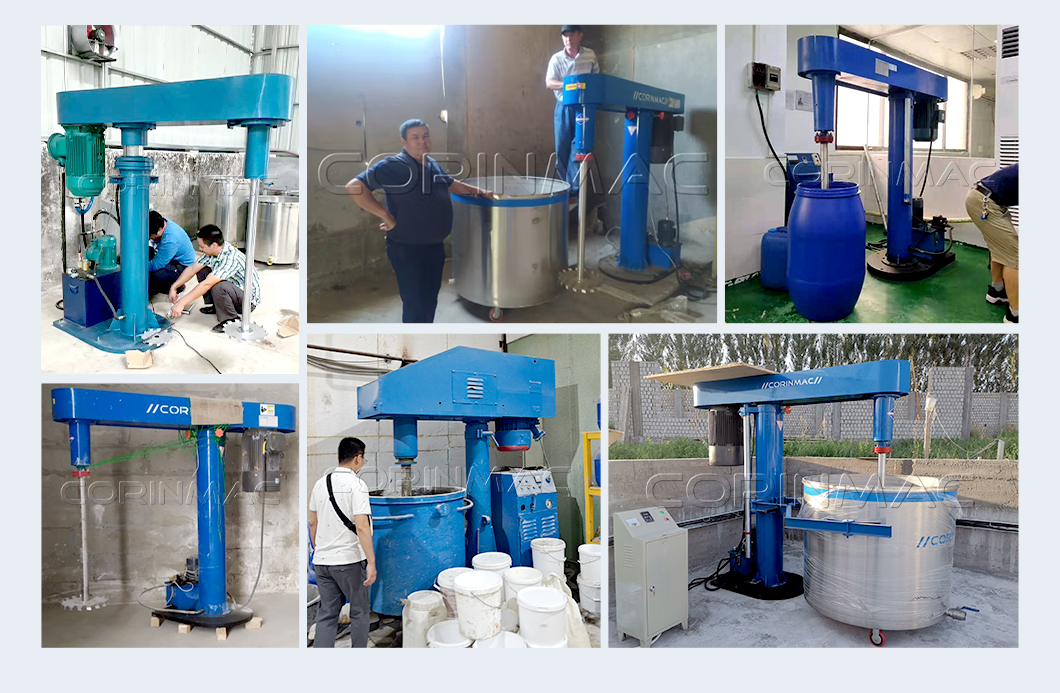

Successful Project
We have many thematic sites in more than 40 countries around the world. Part of our installation sites are as follows:
Disperser is designed to mix medium hard materials in liquid media. Dissolver is used for the production of paints, adhesives, cosmetic products, various pastes, dispersions and emulsions, etc.

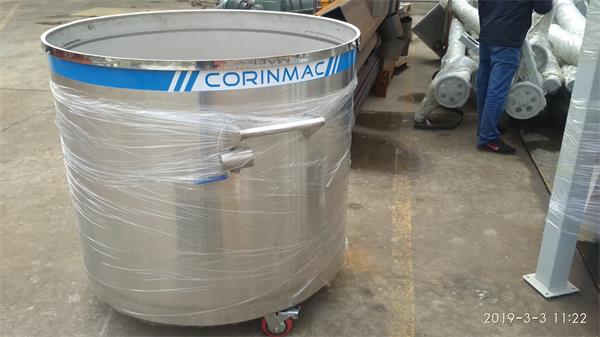

Dispersers can be made in various capacities. Parts and components in contact with the product are made of stainless steel. At the request of the customer, the equipment can still be assembled with an explosion-proof drive
The disperser is equipped with one or two stirrers - high-speed gear type or low-speed frame. This gives advantages in the processing of viscous materials. It also increases productivity and the quality level of dispersion. This design of the dissolver allows you to increase the filling of the vessel up to 95%. Filling with recyclable material to this concentration occurs when the funnel is removed. In addition, heat transfer is improved.
The principle of operation of the disperser is based on the use of a high-speed milling mixer thoroughly grinding the product until a homogeneous mass is obtained.
The principle of operation of the disperser is based on the use of a high-speed milling mixer thoroughly grinding the product until a homogeneous mass is obtained.
Working principle:
Through the high-speed rotation of the dispersing disc, the material flows in a circular shape, generates a strong vortex, and descends to the bottom of the vortex in a spiral shape. Strong shear impact and friction are generated between particles to achieve the functions of rapid dispersion, dissolution, uniform mixing and emulsification.

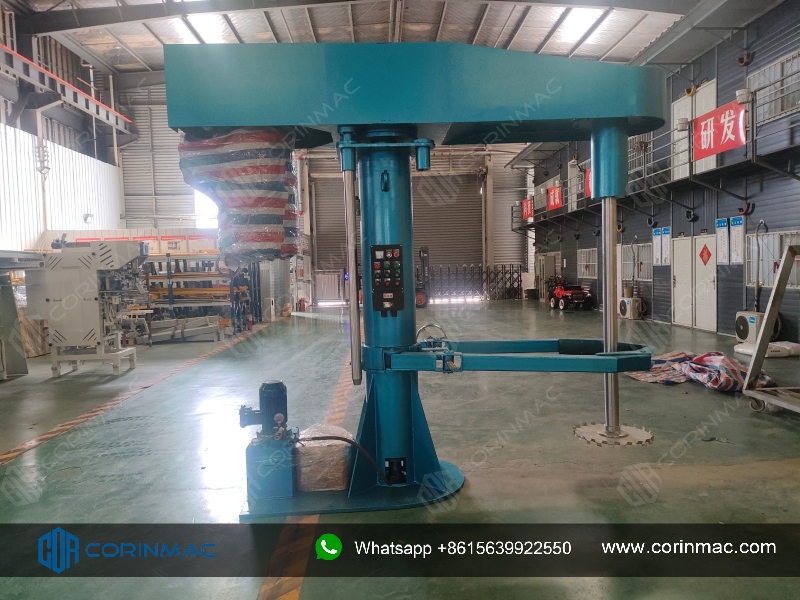

The hydraulic plunger is driven up and down by the hydraulic pump, driving the entire transmission mechanism and the working group up and down.
| Model |
Power (kw) |
Rotation speed (r/min) |
Cutter diameter (mm) |
Container volume/Production (liter) |
Hydraulic motor power (kw) |
Cutter lifting height (mm) |
Weight (kg) |
| FS-4 | 4 | 0-1450 | 200 | ≤200 | 0.55 | 900 | 600 |
| FS-7.5 | 7.5 | 0-1450 | 230 | ≤400 | 0.55 | 900 | 800 |
| FS-11 | 11 | 0-1450 | 250 | ≤500 | 0.55 | 900 | 1000 |
| FS-15 | 15 | 0-1450 | 280 | ≤700 | 0.55 | 900 | 1100 |
| FS-18.5 | 18.5 | 0-1450 | 300 | ≤800 | 1.1 | 1100 | 1300 |
| FS-22 | 22 | 0-1450 | 350 | ≤1000 | 1.1 | 1100 | 1400 |
| FS-30 | 30 | 0-1450 | 400 | ≤1500 | 1.1 | 1100 | 1500 |
| FS-37 | 37 | 0-1450 | 400 | ≤2000 | 1.1 | 1600 | 1600 |
| FS-45 | 45 | 0-1450 | 450 | ≤2500 | 1.5 | 1600 | 1900 |
| FS-55 | 55 | 0-1450 | 500 | ≤3000 | 1.5 | 1600 | 2100 |
| FS-75 | 75 | 0-1450 | 550 | ≤4000 | 2.2 | 1800 | 2300 |
| FS-90 | 90 | 0-950 | 600 | ≤6000 | 2.2 | 1800 | 2600 |
| FS-110 | 110 | 0-950 | 700 | ≤8000 | 3 | 2100 | 3100 |
| FS-132 | 132 | 0-950 | 800 | ≤10000 | 3 | 2300 | 3600 |
Company Profile
CORINMAC-Cooperation& Win-Win, this is the origin of our team name.
This is also our operating principle: through teamwork and cooperation with customers, create value for individuals and customers, and then realize the value of our company.
Since its founding in 2006, CORINMAC has been a pragmatic and efficient company. We are committed to finding the best solutions for our customers by providing high-quality equipment and high-level production lines to help customers achieve growth and breakthroughs, because we deeply understand that customer's success is our success!
Customer visits
Welcome to CORINMAC. CORINMAC's professional team offers you comprehensive services. No matter which country you come from, we can provide you with the most considerate support. We have extensive experience in dry mortar manufacturing plants. We will share our experience with our customers and help them start their own business and make money. We thank our customers for their trust and support!

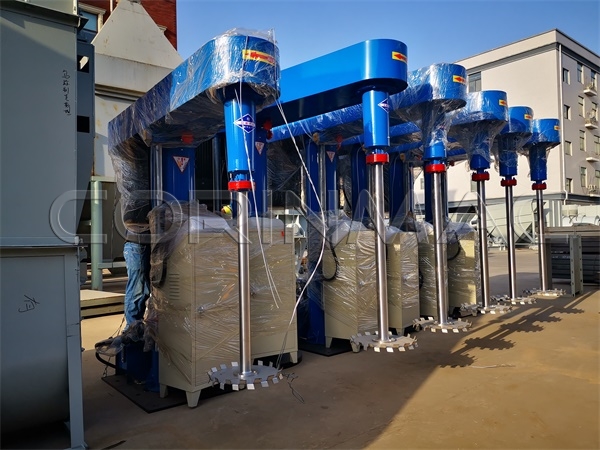

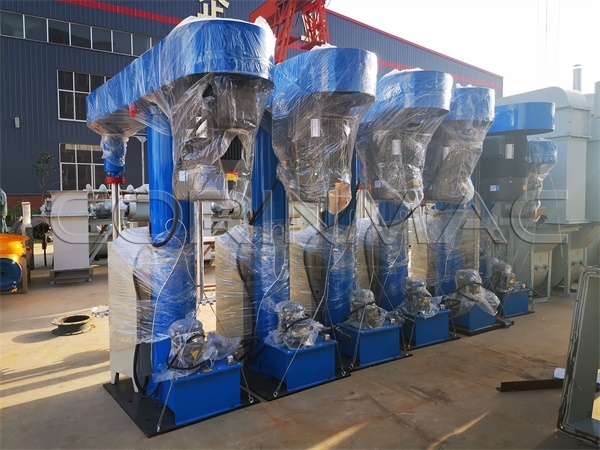

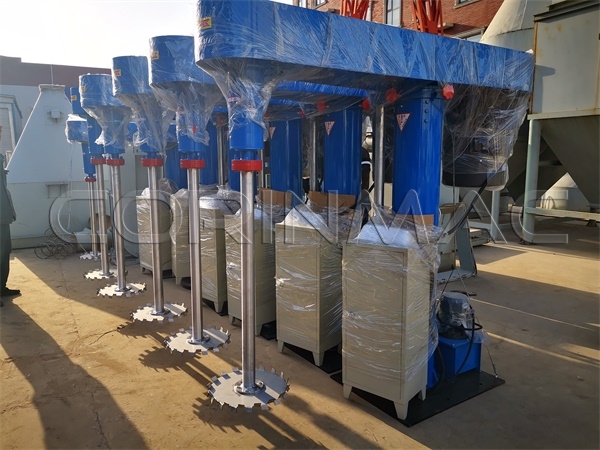

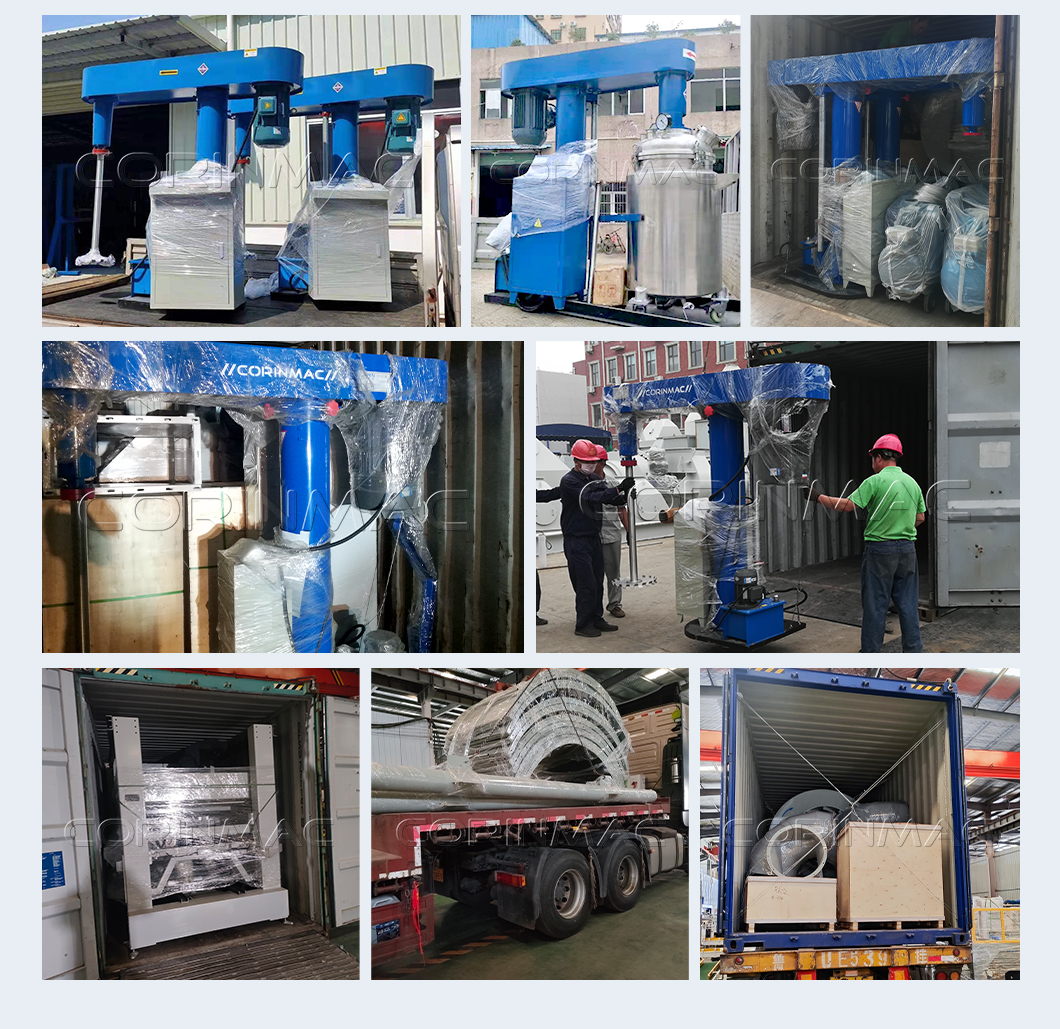

Packaging for shipment
