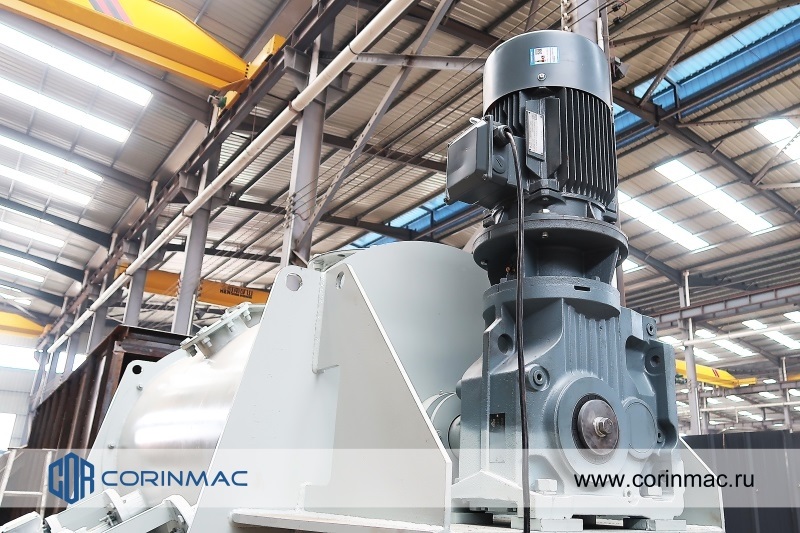

Single-shaft mixer (plowshare)

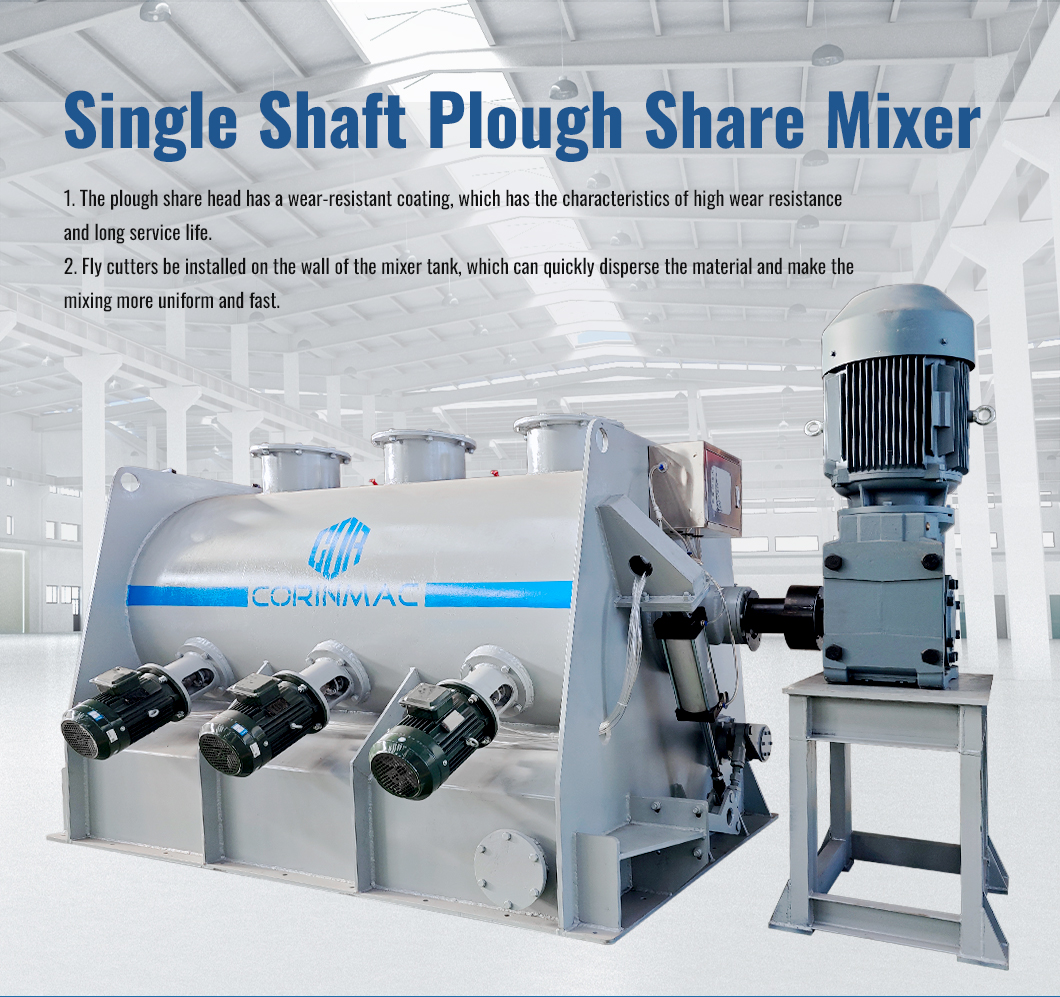

Single shaft plough share mixer

The technology of the plough share mixer is mainly from Germany, and it is a mixer commonly used in large-scale dry powder mortar production lines.

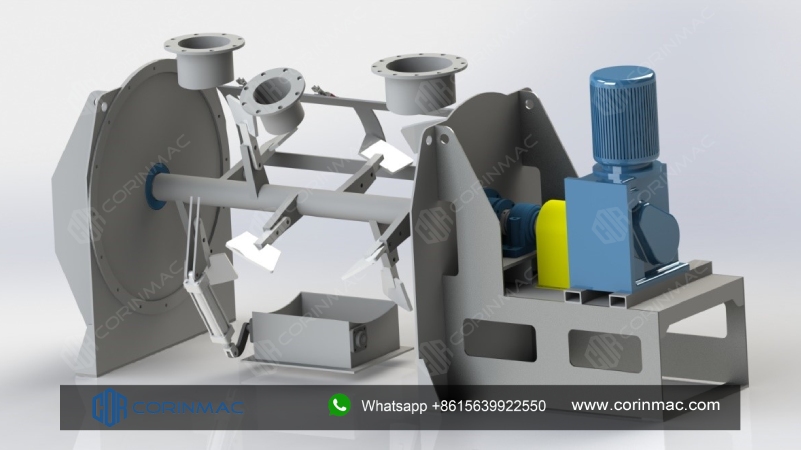

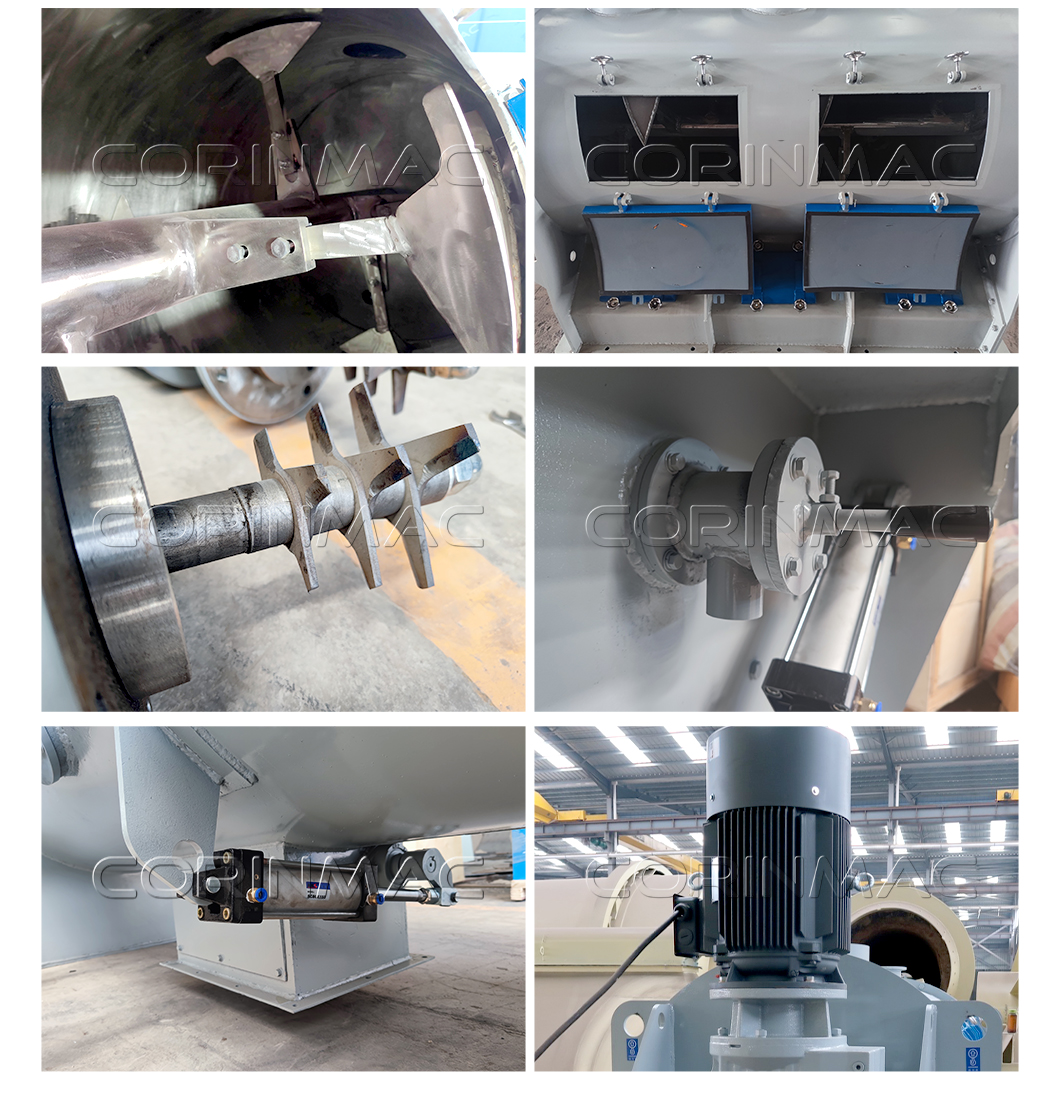

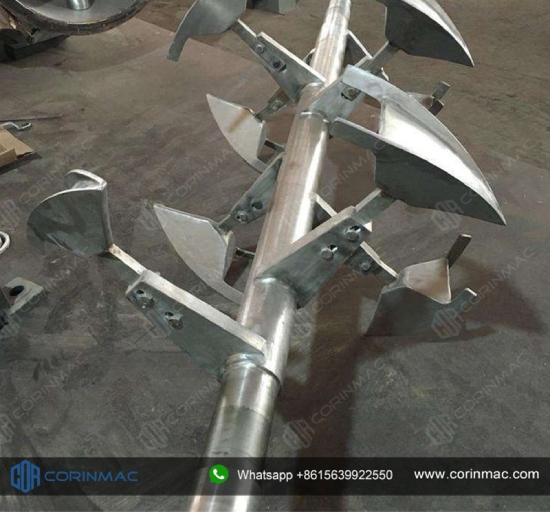

The plough share mixer is mainly composed of an outer cylinder, a main shaft, plough shares, and plough share handles.

The rotation of the main shaft drives the plowshare-like blades to rotate at a high speed to drive the material to move rapidly in both directions, so as to achieve the purpose of mixing. The stirring speed is fast, and a flying knife is installed on the wall of the cylinder, which can quickly disperse the material, so that the mixing is more uniform and fast, and the mixing quality is high.

The quality and speed of mixing the dry mix is ​​ensured by the shape and location of the plowshares of the mixing unit, which have directional working surfaces and a simple geometric shape, which increases their durability and simplifies replacement during repairs. The working area and the unloading hatch of the mixer are insulated, which eliminates dust during unloading.

Principle of operation

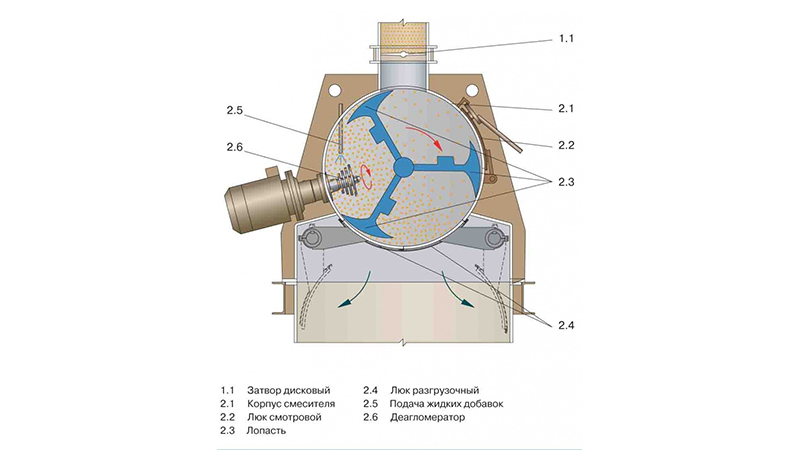

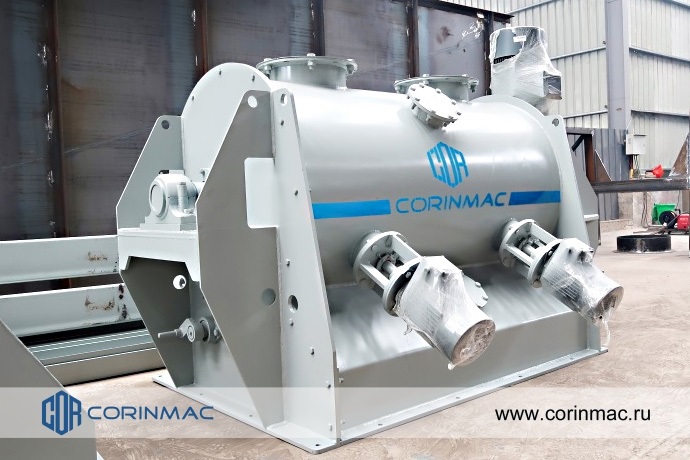

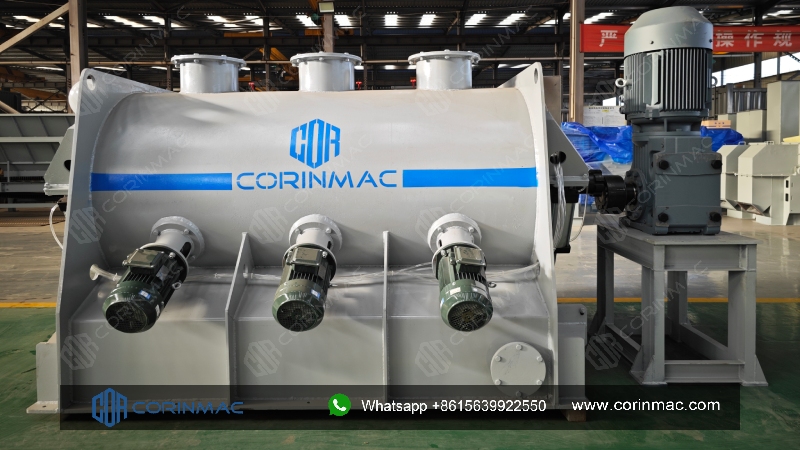

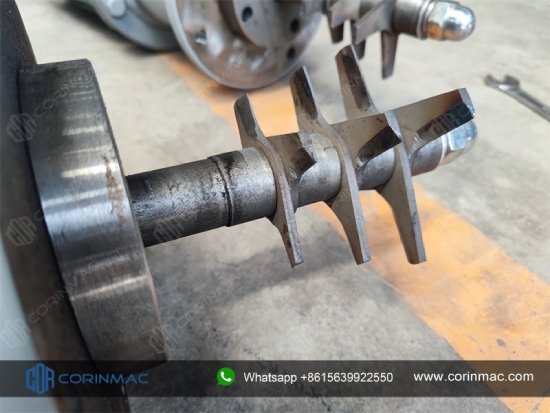

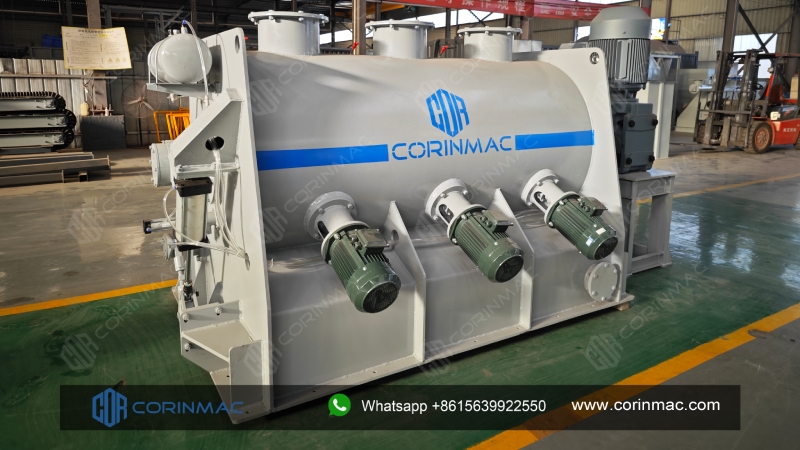

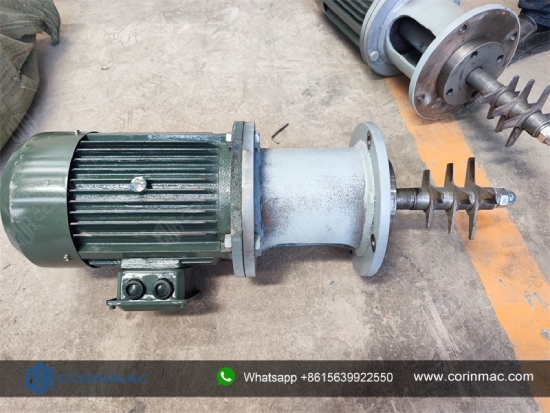

The single-shaft mixer (plowshare) is a single-girder compulsory mixing equipment, several sets of plowshares are installed on the main shaft, which are installed continuously with a dislocation method to avoid the mixing dead angle, During operation, the dislocation plowshares rotate continuously and form a continuous whirlpool centrifugal force. and under such force, the materials continue to overlap, disintegrate and mix. In such a mixer, high-speed flying knives are also installed, which are located in the side of the mixer body at 45 degrees, separating lumpy materials while mixing.

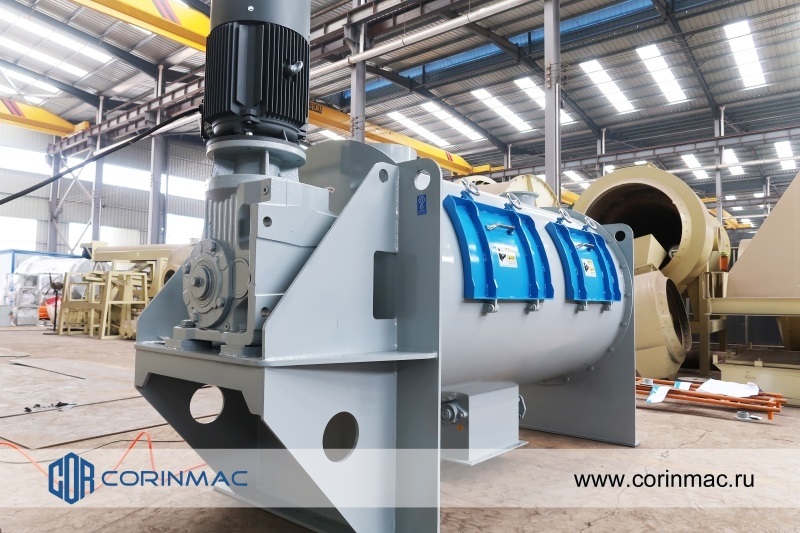

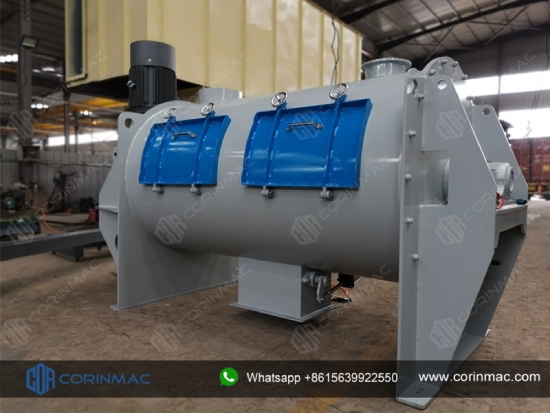

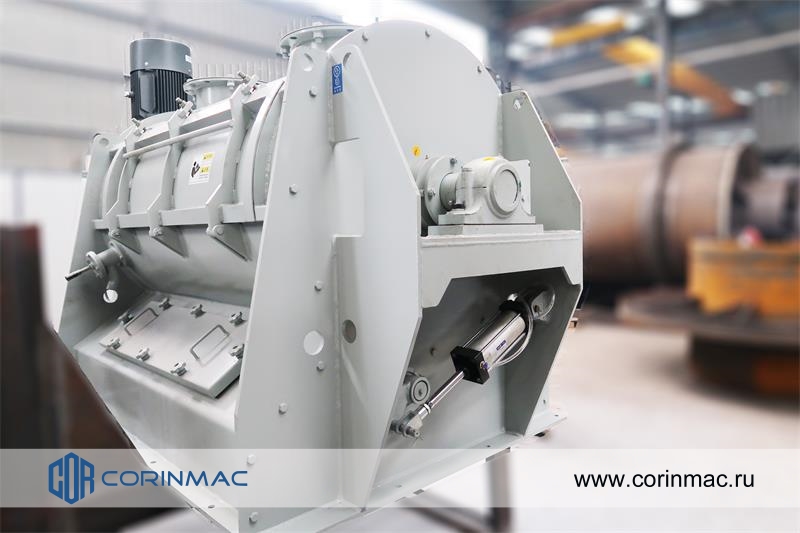

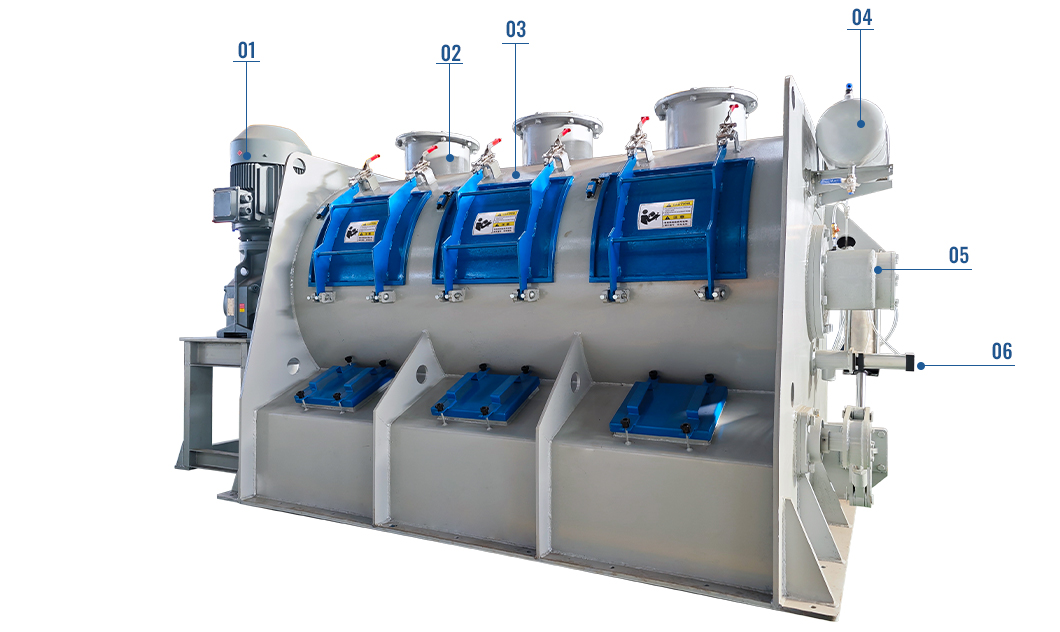

Single shaft plough share mixer (small discharge door)

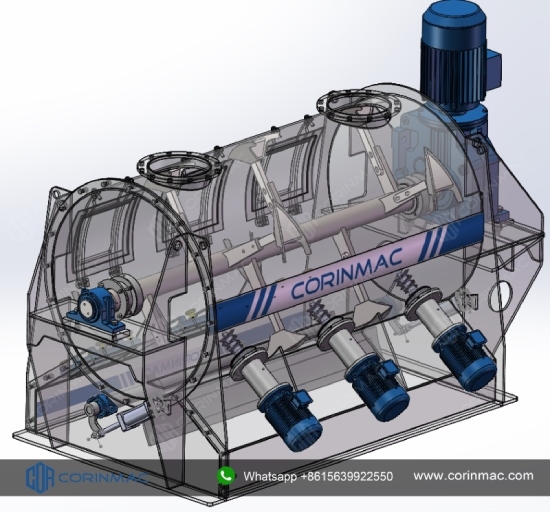

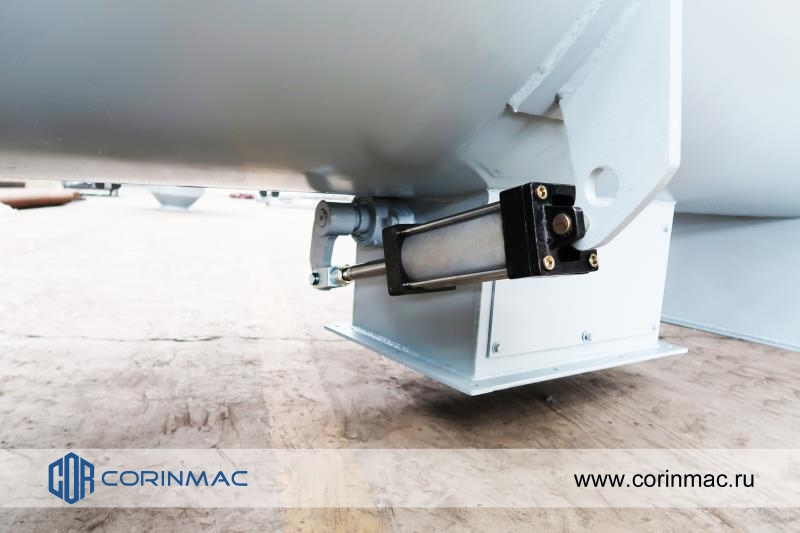

Three discharge ports at the bottom, the discharge is fast, and the whole discharge only takes 10-15 seconds.

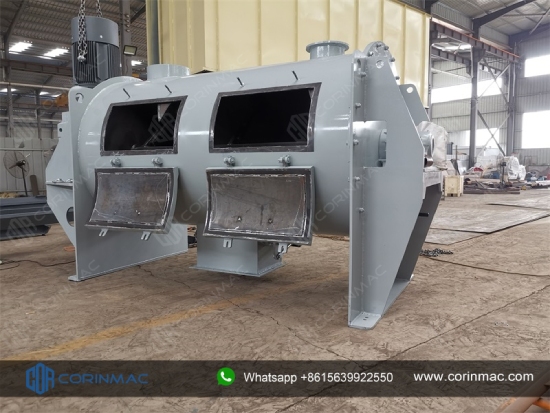

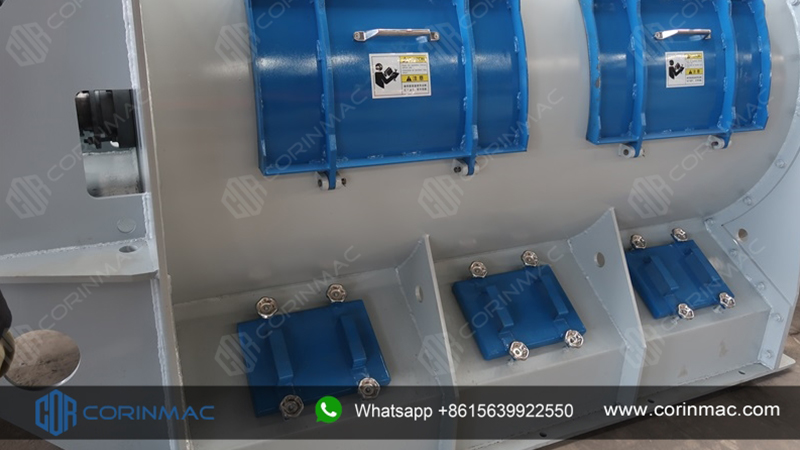

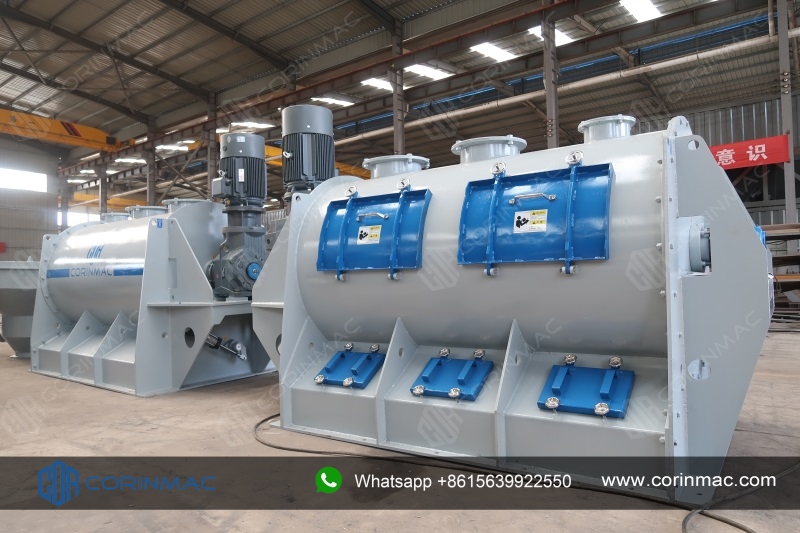

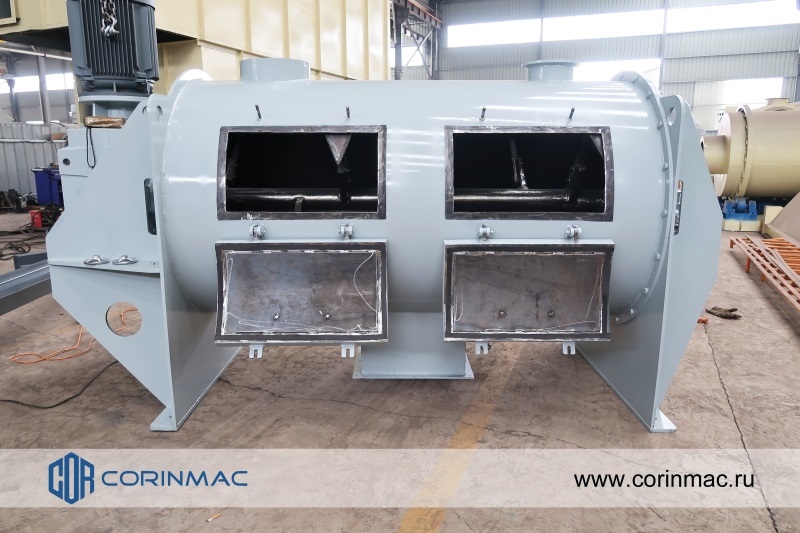

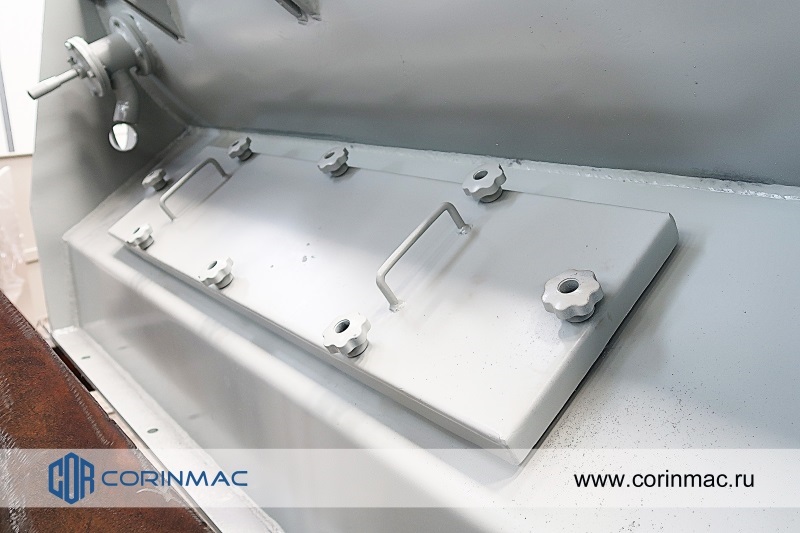

There are three inspection and maintenance doors at the bottom for easy maintenance Single shaft plough share mixer (big discharge door)

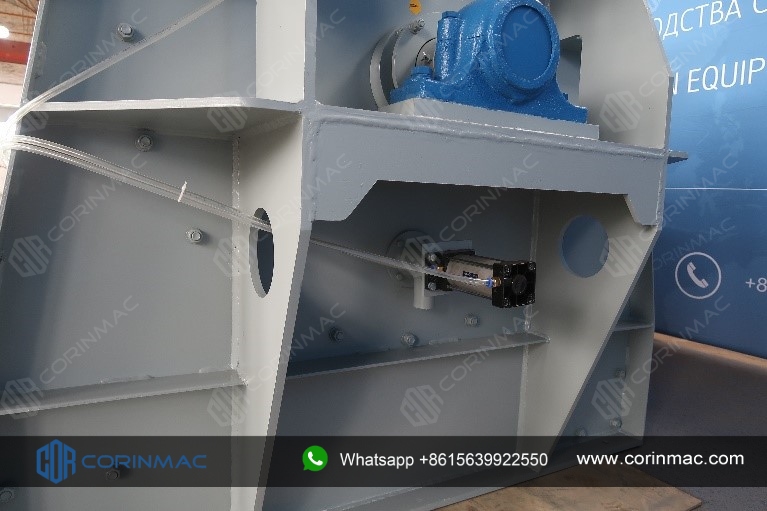

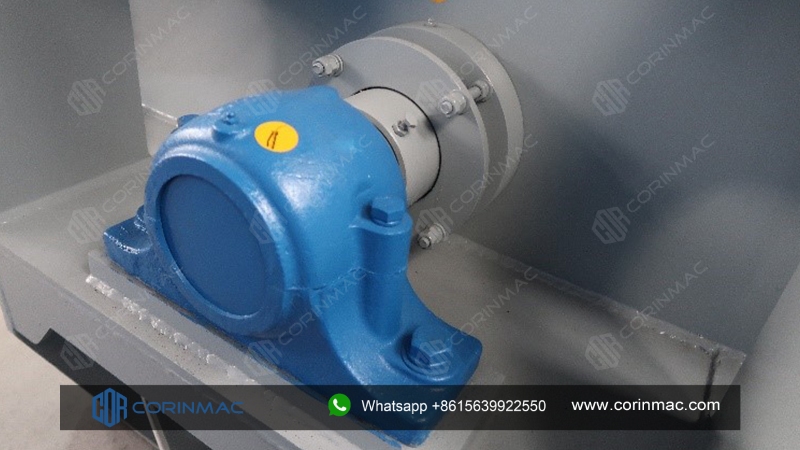

High-quality wear-resistant bearing

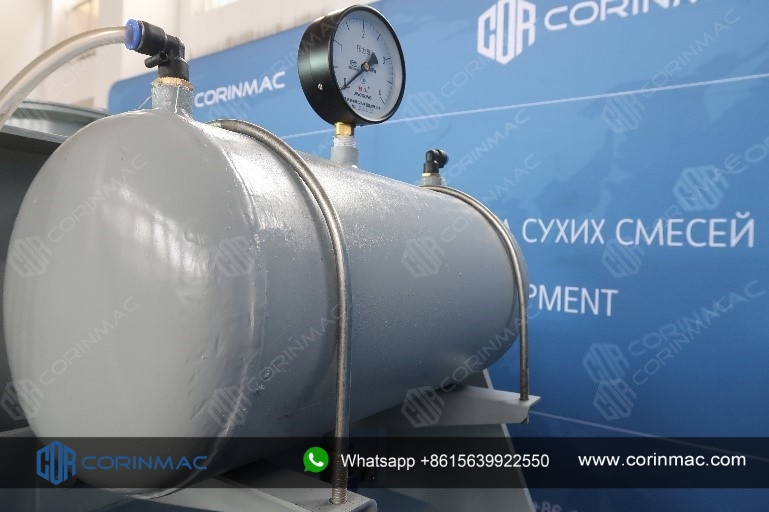

Equipped with independent air storage tank to ensure air supply pressure



Pneumatic sampler, easy to monitor the mixing effect at any time

The stirring blades can also be replaced with paddles for different materials

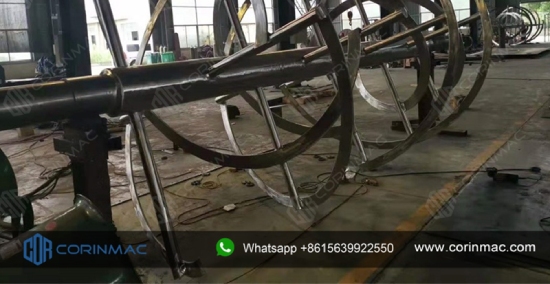

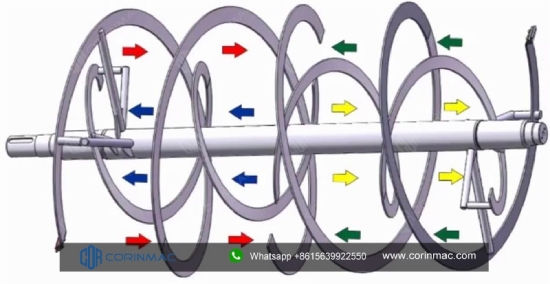

When mix light materials with low abrasiveness, the spiral ribbon could also be replaced. Two or more layers of spiral ribbons could make the outer layer and inner layer of the material move in opposite directions respectively, and the mixing efficiency is higher and more uniform.


1 to 1 customized service

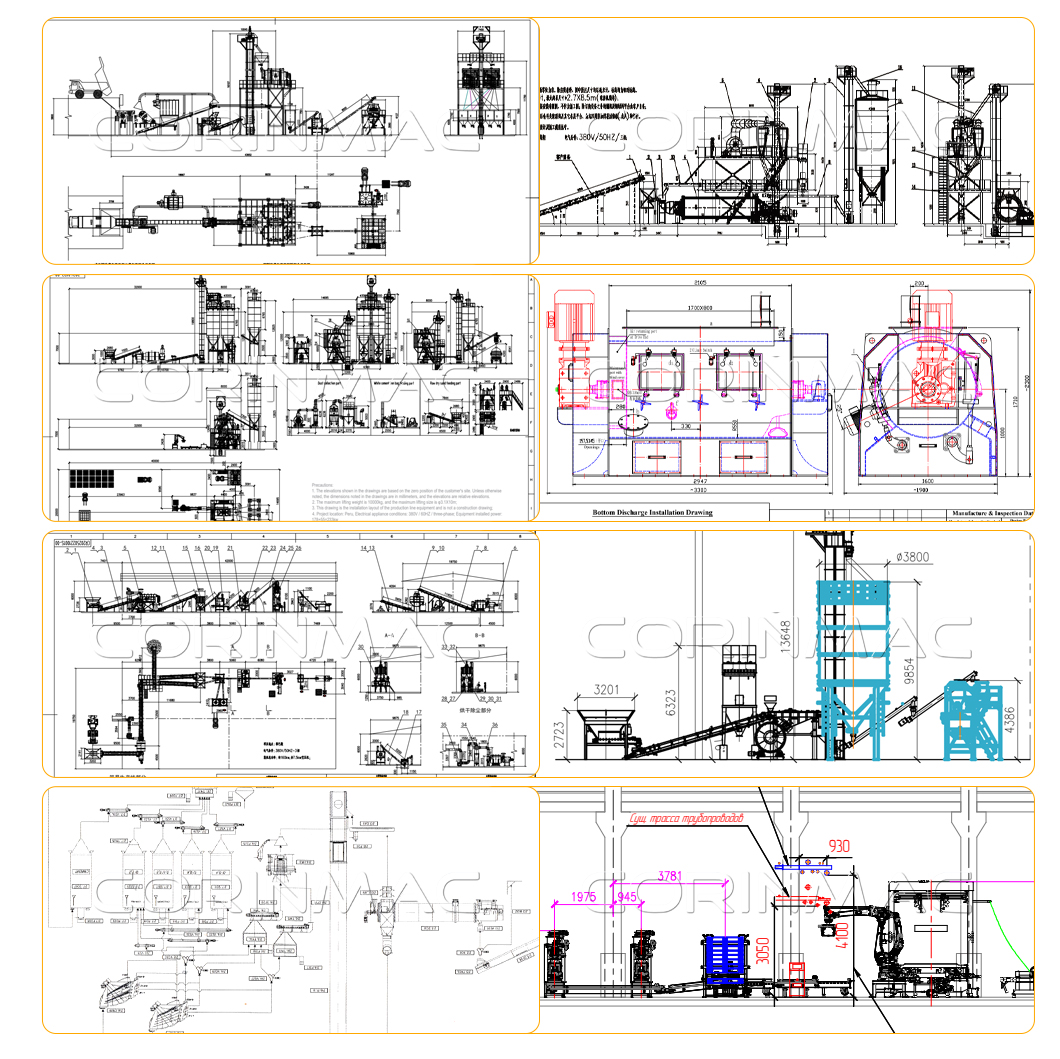

We can do different program designs and configurations according to your requirements. We will provide each customer with customized production solutions to meet the requirements of different construction sites, workshops and production equipment layout.

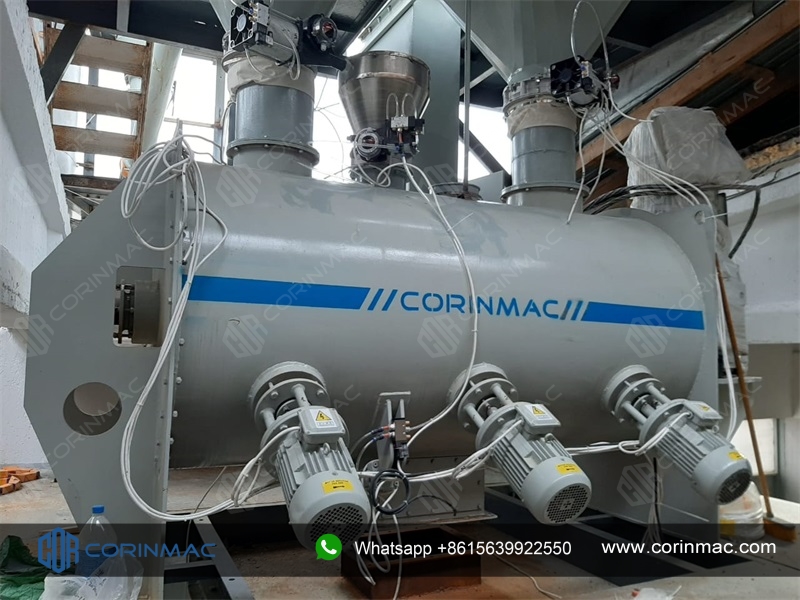

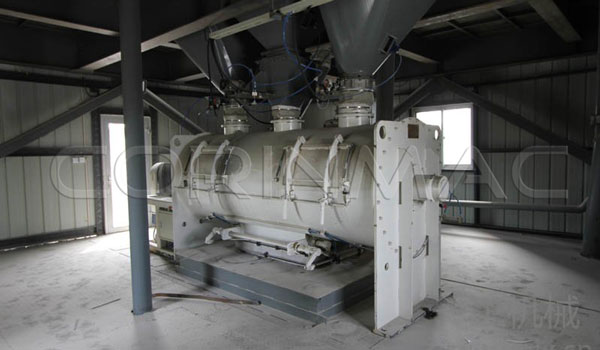

Successful Project

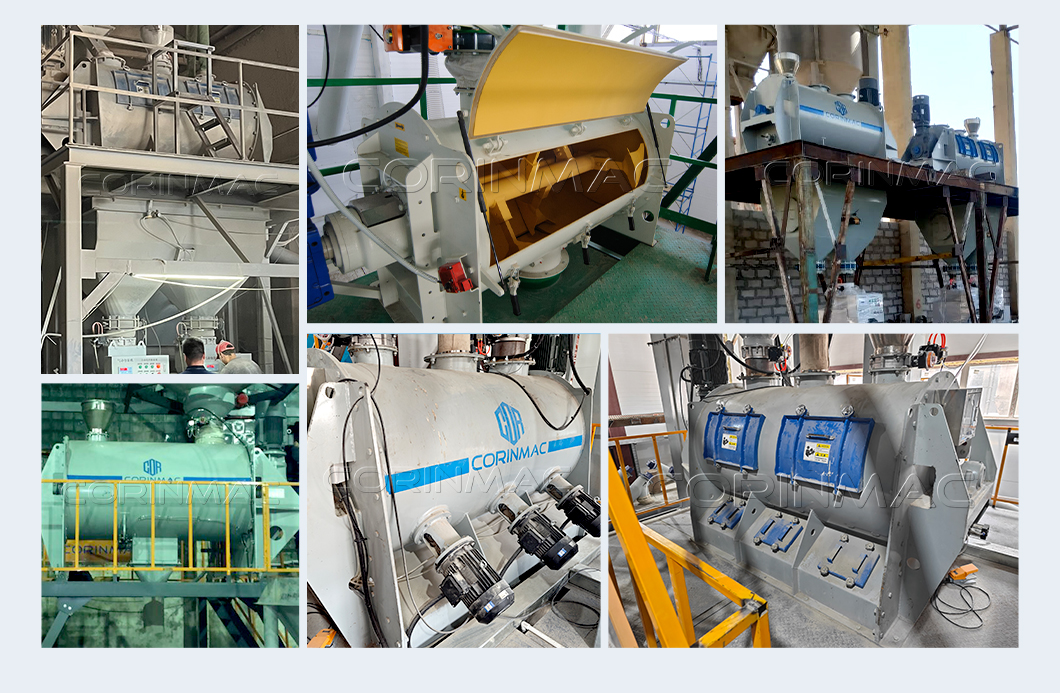

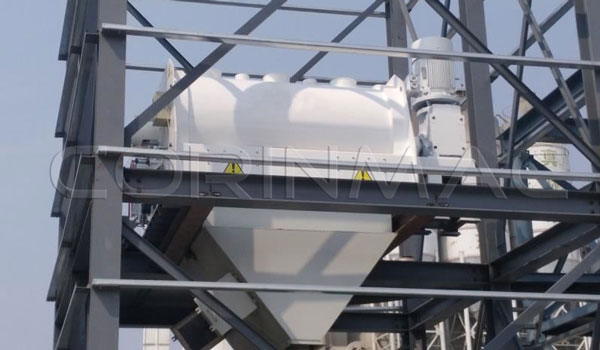

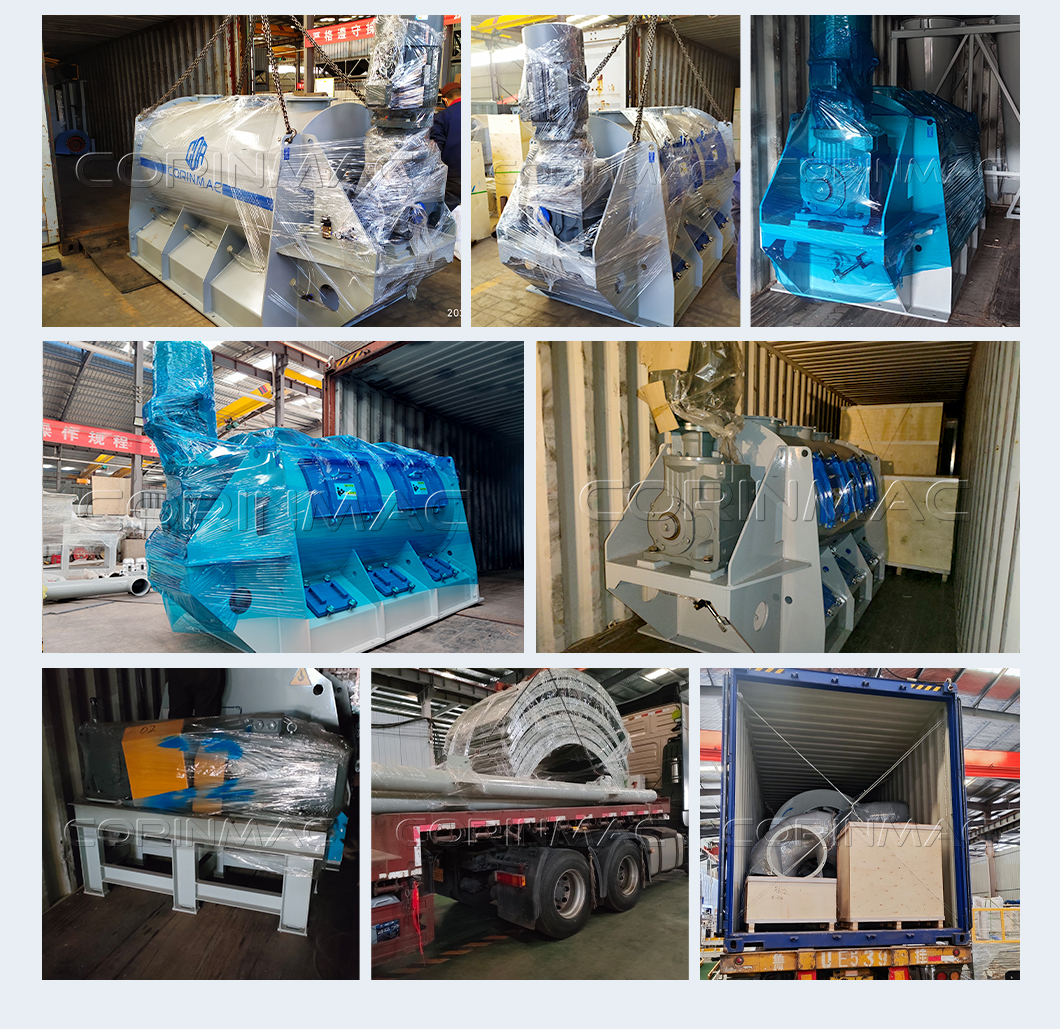

We have many thematic sites in more than 40 countries around the world. Part of our installation sites are as follows:

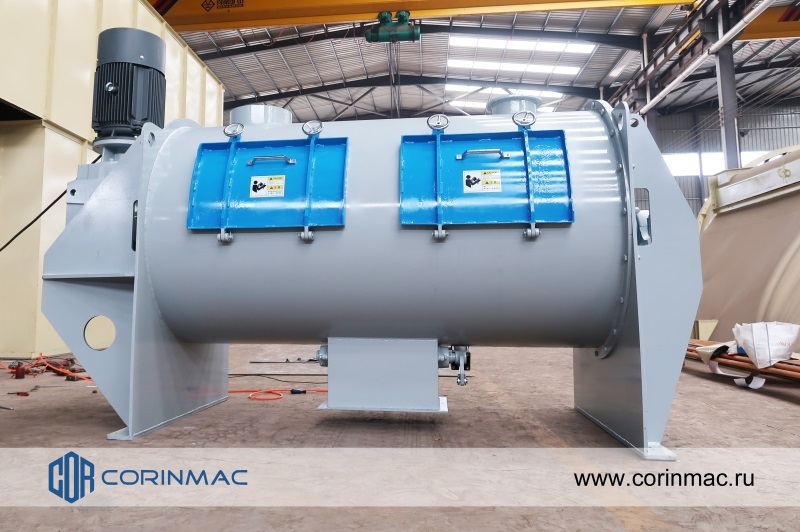

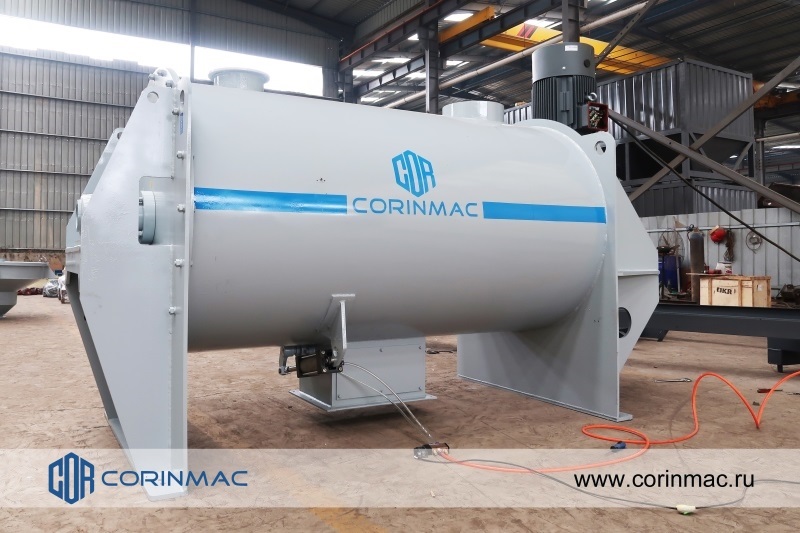

Single-shaft mixer with plowshare (large mixer vessel)
