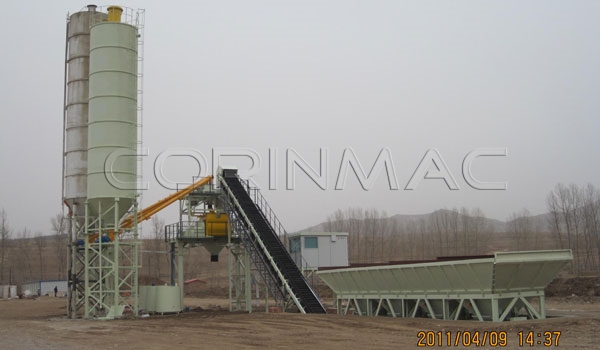

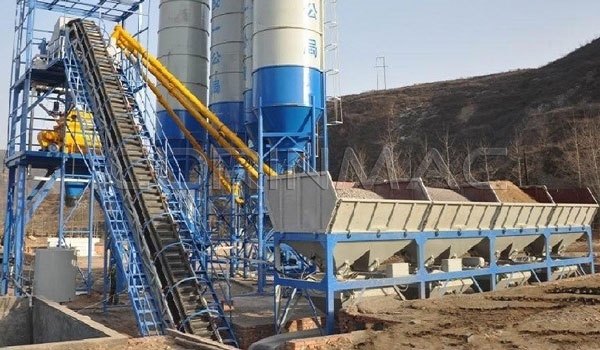

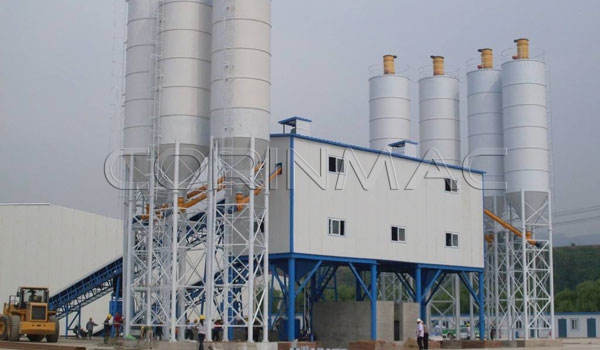

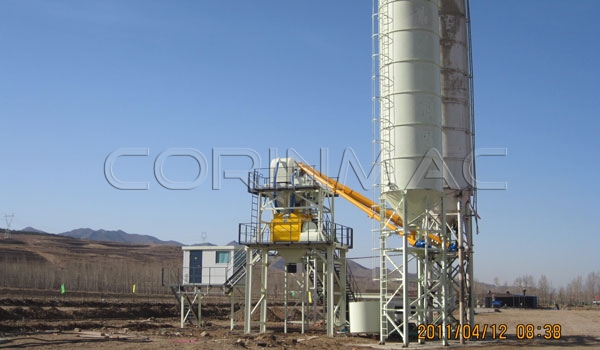

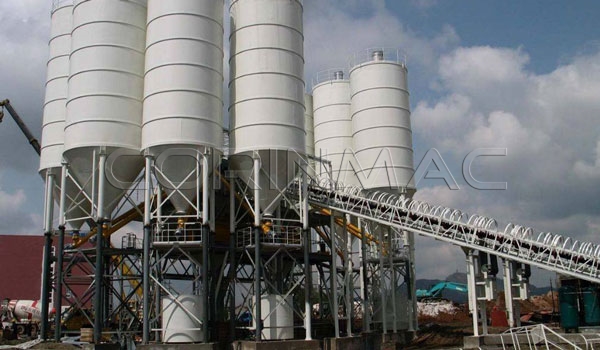

Concrete Mixing Plant

Product description:

The concrete mixing station is a new generation of mixing equipment developed by our company with many years of experience in manufacturing concrete machinery and adopting international advanced technology. It is widely used in various construction projects, road construction bridges and commercial concrete production plants to prepare high-quality concrete. Its features are modular design, dual horizontal axis forced stirring, and WINDOWS operation interface control. The main components are selected from well-known foreign brands. To meet environmental requirements. The powder materials are conveyed in a sealed state. The mixing mian machine adopts a double-horizontal axis forced mixing main machine, which has even mixing quality and high efficiency. Weighing systems use high-precision, low failure rate electronic components. It has the advantages of simple structure, convenient assembly, small area cover, strong mobility, and low investment costs.

Structural features:

The concrete mixing station consists of four parts: sand and gravel feed, powder (cement, fly ash, expansion agent, etc.) feed, water and admixture feed, transmission mixing and storage. This station can produce a variety of concrete such as plastic, hard. It is widely used in large and medium-sized building construction, road and bridge projects, and prefabrication plants that produce high-quality concrete prod In addition, according to the different needs of users, additional equipment and functions can be added. The combination form can be flexibly selected to meet the requirements of different users and different occasions.

Work process:

After the mixer control system is powered on, it enters the operation interface of man-machine dialogue, and the system performs initialization processing, including formula number, concrete grade, slump, production volume, etc. Detect each silo and weighing bucket according to the weighing, output empty or full signal, prompt the operator to determine whether to start the stirring control program. Start the sand and stone belt motor to feed the metering hopper; open the butterfly valve of the fly ash and cement tank, start the screw machine motor to transport the fly ash and cement to the metering hopper; open the control valve of the water tank and the admixture tank to make water and external agent flows into the metering hopper. After the metering meets the set requirements, the metering bucket door is opened, and the ingredients enter the activated mixer to mix and mix. When the set time is reached, the mixer door is opened, and the concrete enters the receiving mixing truck.
