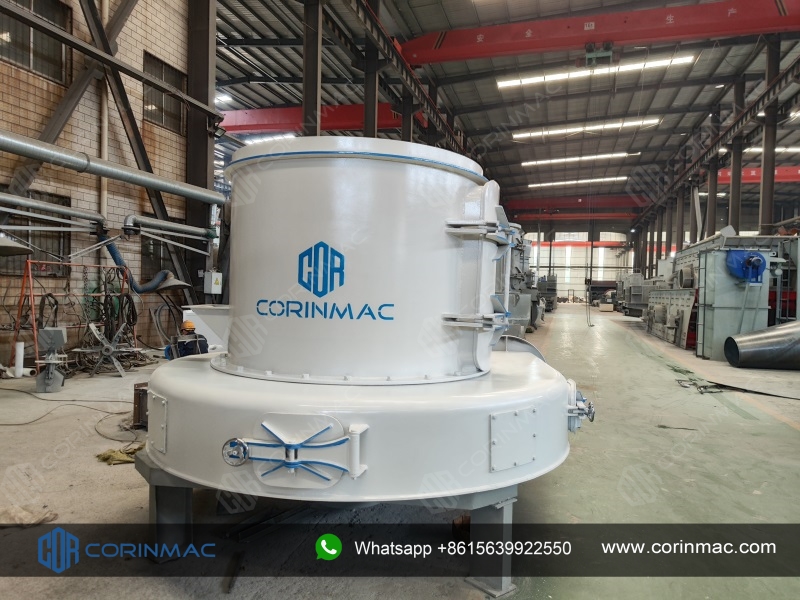

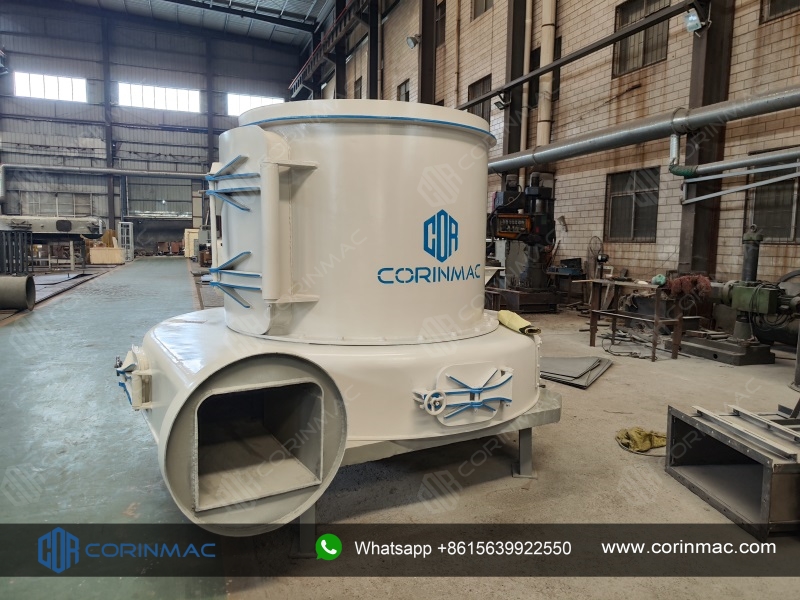

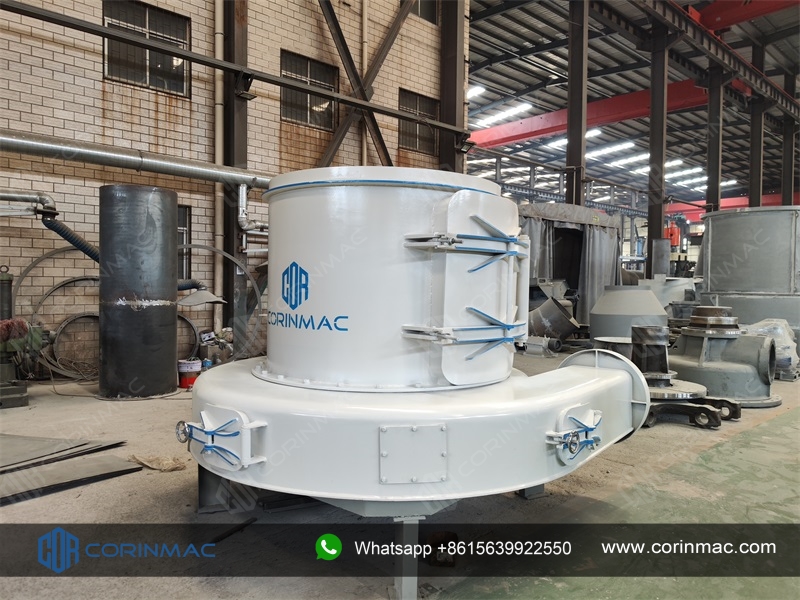

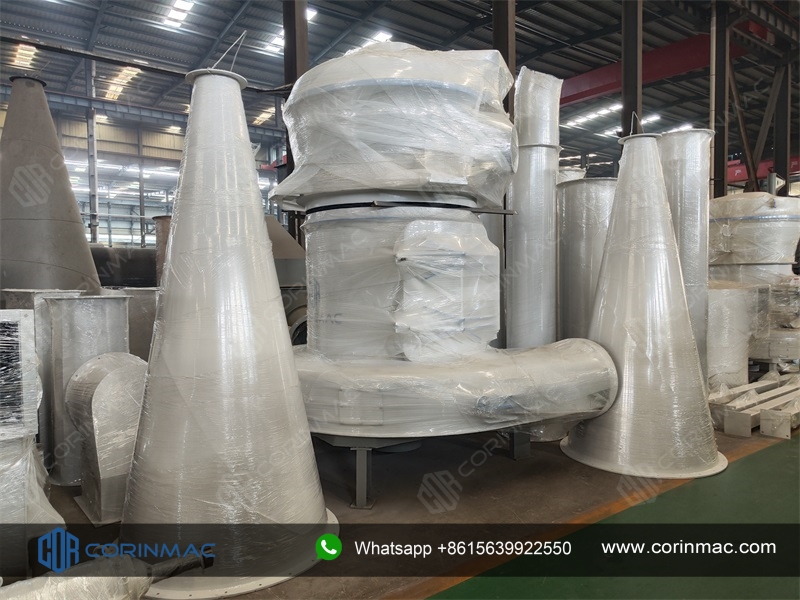

YGM Series High Pressure Mill

In dry mixes, there are usually mineral powders as aggregate, in order to obtain high quality mineral powder, YGM series high pressure mill is needed, which is applied in the industries of metallurgy, building materials, chemistry, mine, high-speed highway construction, hydroelectric power station, etc. for grinding non-combustible, non-explosive, brittle materials of medium, low hardness according to Mohs not higher than 9.3 classes, their moisture content is not higher than 6%.

Pressurizing device with high pressure spring can improve the grinding pressure of roller, which makes efficiency improved by 10%-20%. And the sealing performance and dust removal effect is pretty good.

SCOPE OF APPLICATION

Applications: Cement, Coal, power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.


1 to 1 customized service

We can do different program designs and configurations according to your requirements. We will provide each customer with customized production solutions to meet the requirements of different construction sites, workshops and production equipment layout.

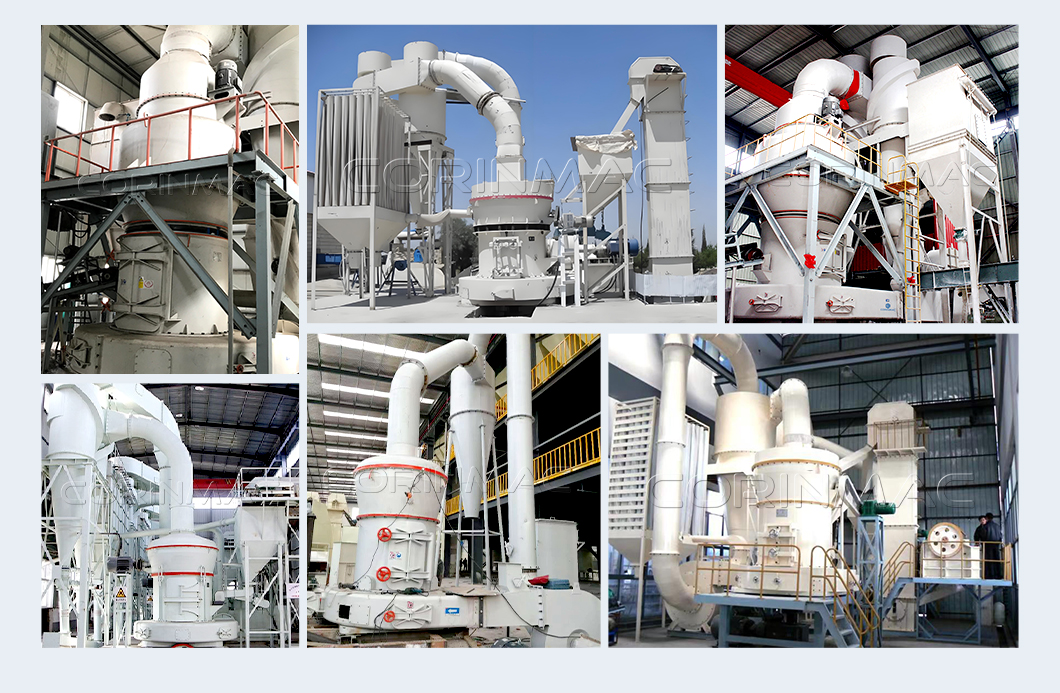

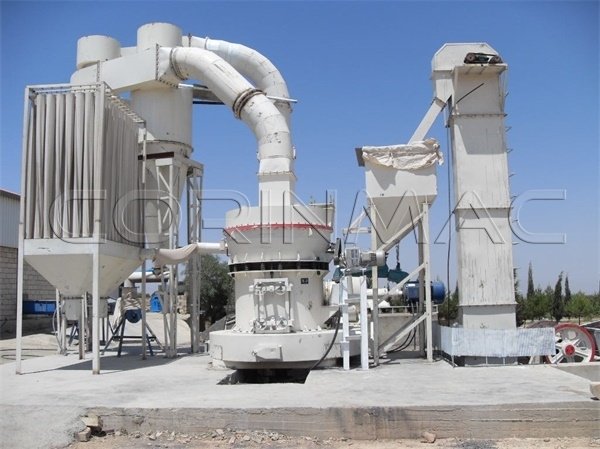

Successful Project

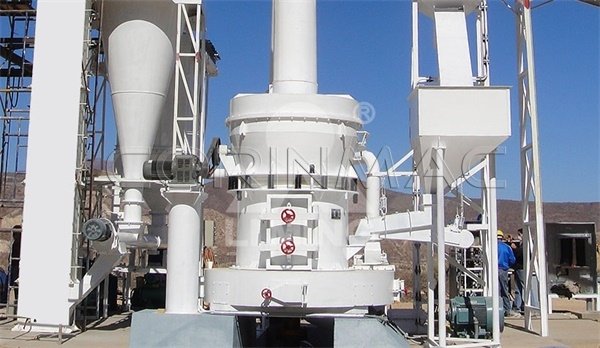

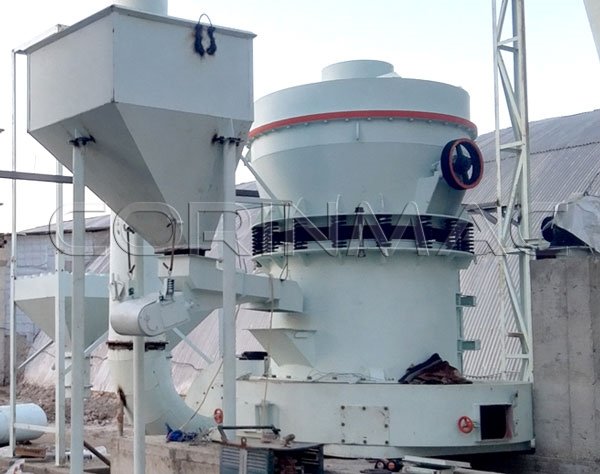

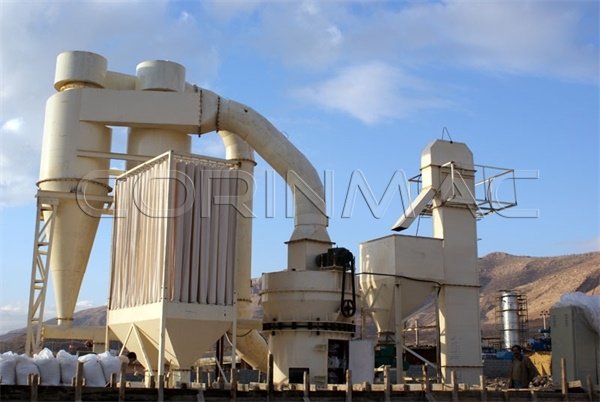

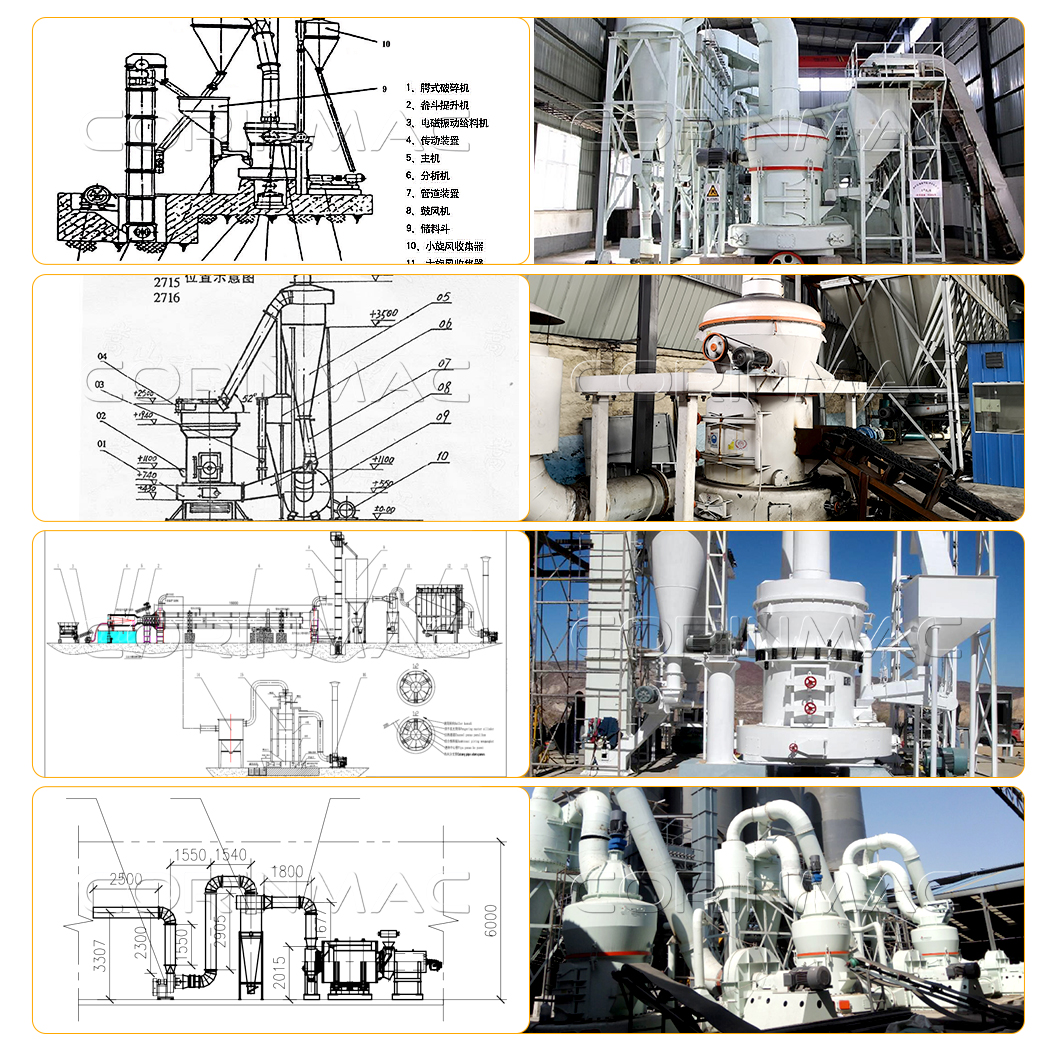

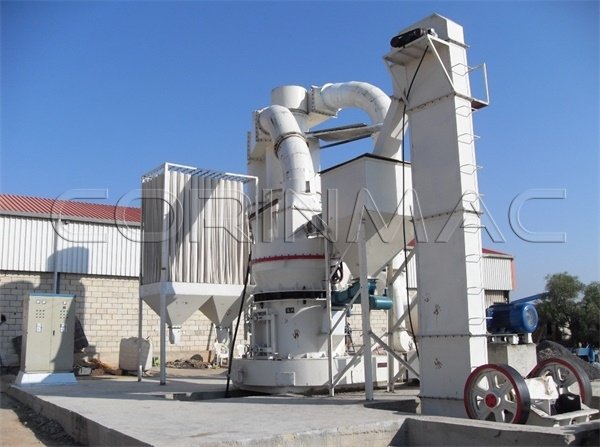

We have many thematic sites in more than 40 countries around the world. Part of our installation sites are as follows:

Working Principle

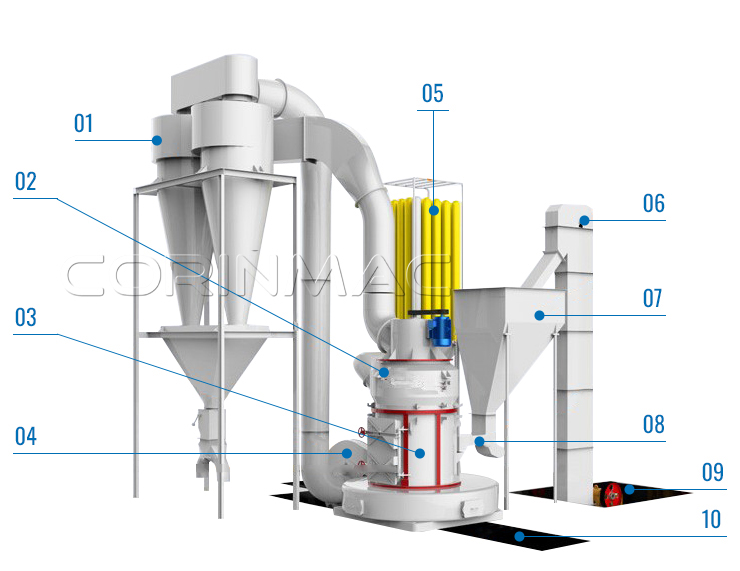

The high pressure mill consists of a jaw crusher, bucket elevator, hopper, vibrating feeder, electronic control system, and main mill system, etc. In the main machine of a high-pressure mill with suspension rollers, the roller assembly through the horizontal axis hangs on the hanger, the hanger, the spindle and the scoop stand are fixedly tied, the pressure nip presses on the hanger, in the support on the horizontal axis it forces the roller to press on the ring when the electric motor through the drive unit drives the spindle, the scoop and the roller simultaneously and synchronously rotate, the roller rotates on the ring and around itself. The electric motor drives the analyzer through the drive unit, the faster the impeller rotates, the finer the produced powder. To ensure that the mill is operating under negative pressure, the increased air through the remaining air pipe between the fan and the main machine is released into the vacuum cleaner, after cleaning, the air is vented to the atmosphere.
