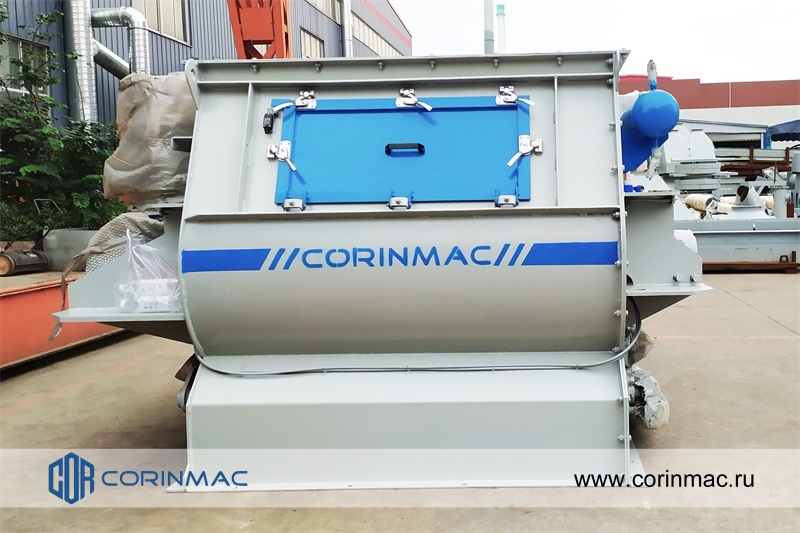

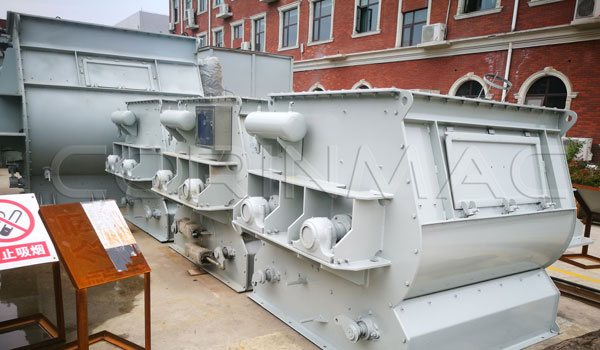

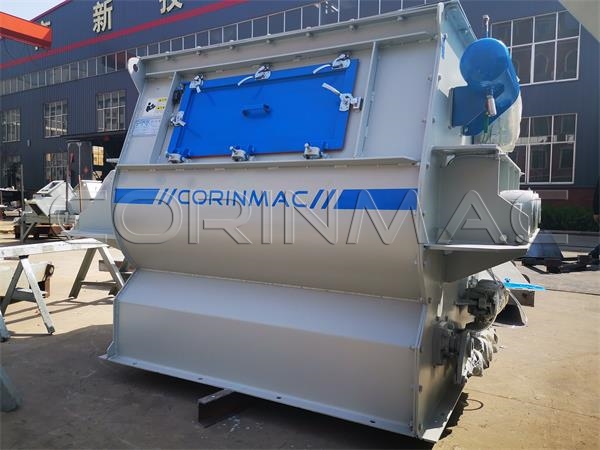

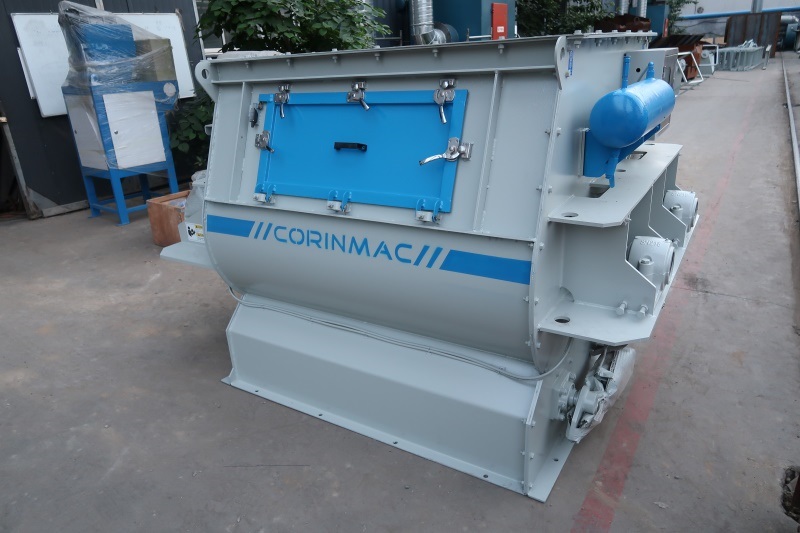

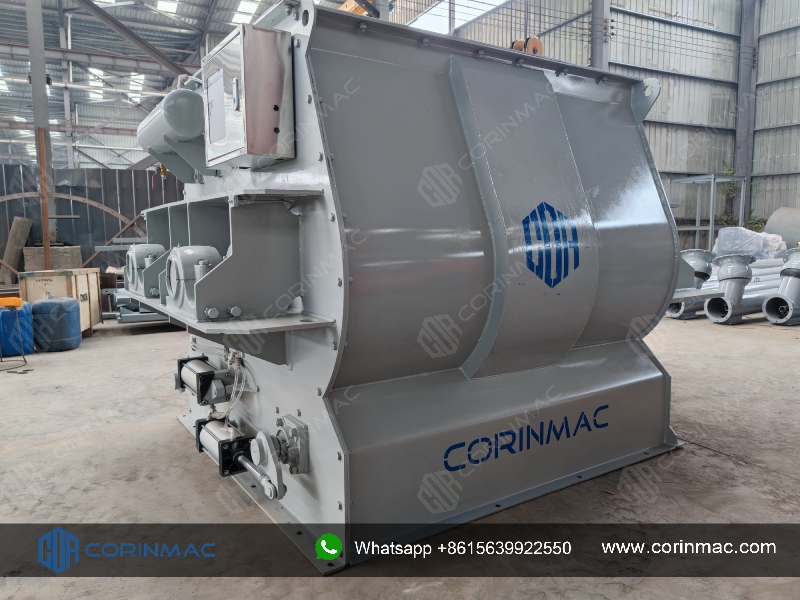

Twin-shaft paddle mixer
Message
The twin-shaft paddle mixer is a horizontal twin-shaft paddle mixing equipment for forced mixing, designed for the preparation of all types of dry building mixtures with manual and automated control.
Double shaft paddle mixer (Double shaft weightless mixer)
The technology of the double shaft paddle weightless mixer is mainly from Japan and South Korea, and it is more suitable for the mixing of materials with similar specific gravity. The double-shaft paddle mixer is equipped with double shaft counter rotating paddles. The paddles are overlapped and form a certain angle. The paddles rotate and throw the material into the space fluid layer, resulting in instant weightlessness and falling into each other's area., the material is mixed back and forth, forming a fluidized weightless zone and a rotating vortex in the middle. The material moves radially along the shaft, thus forming an all-round compound cycle and quickly achieving uniform mixing.
Working principle:

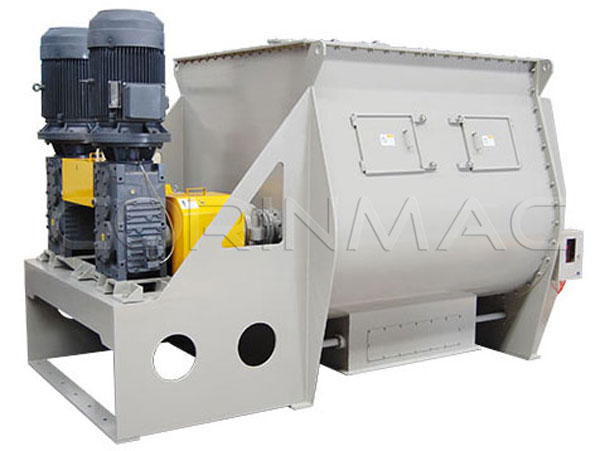

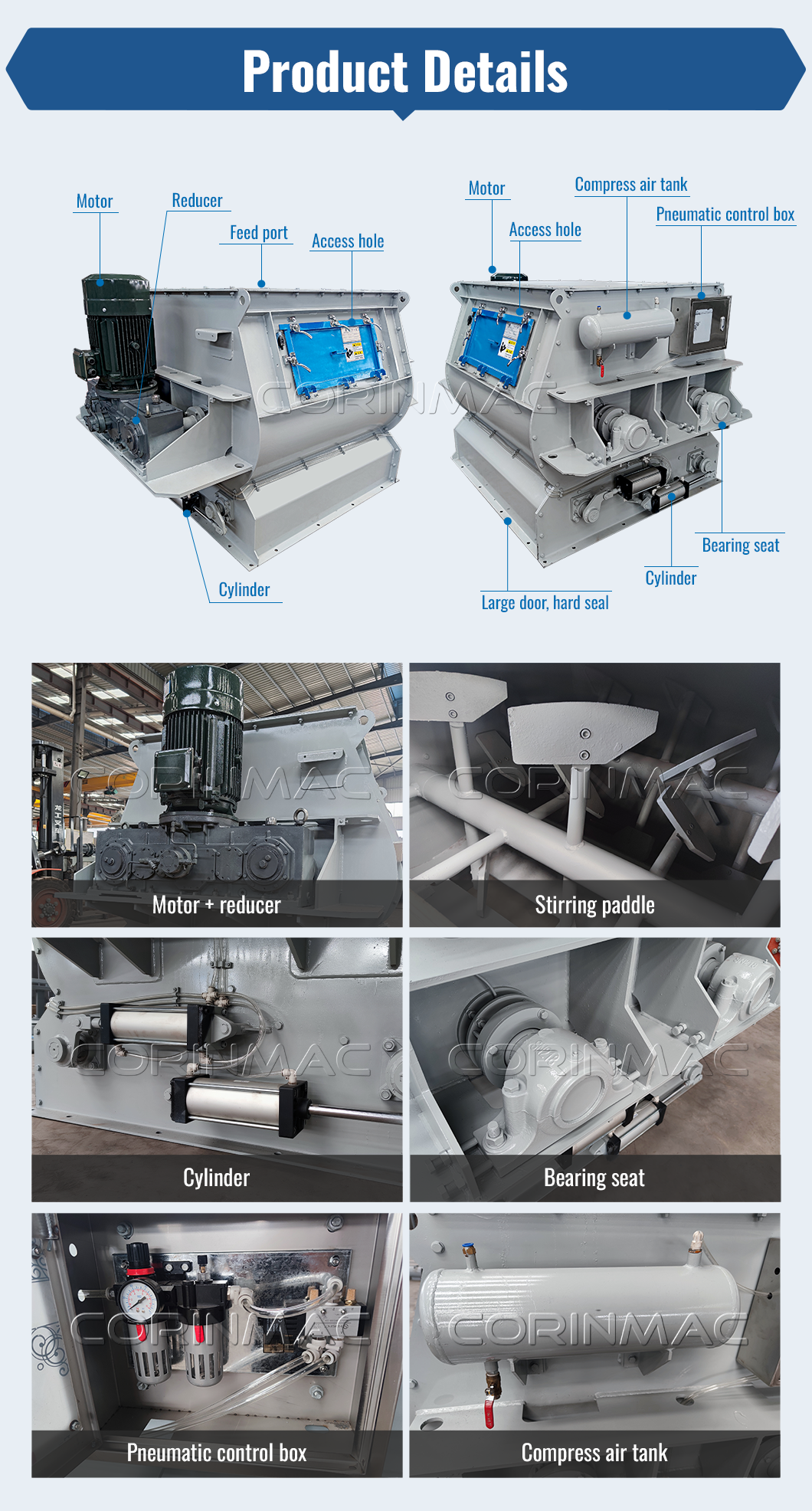

The twin-shaft paddle mixer consists of a horizontal body, drive mechanism, twin-shaft mixing blades. During operation, the twin-shaft relative reverse rotation leads the blades to different angles in order to rotate the material in axial and radial cycles, under the action of the double-shaft high-speed rotation, the material thrown up is in a state of zero gravity (i.e. does not have gravity) and descends, in the process of throwing up and lowering the material is mixed evenly. Cycle time: 3-5 min. (for complex mixtures up to 15 min.)
 |
 |

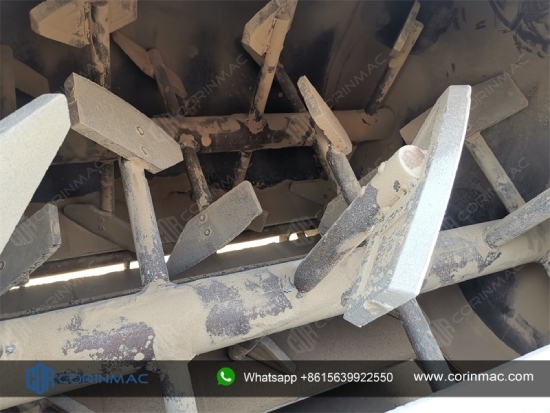

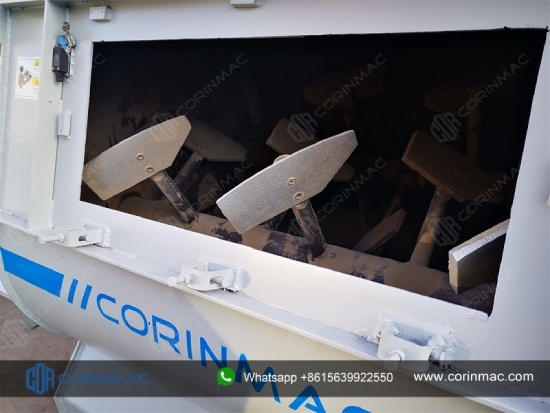

The mixing paddle is cast with alloy steel, which greatly prolongs the service life, and adopts an adjustable and detachable design, which greatly facilitates the use of customers.
 |
 |

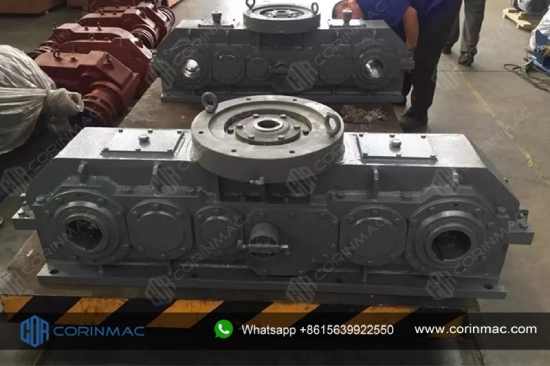

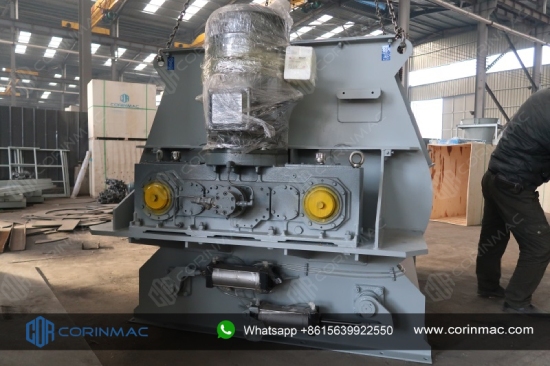

The direct-connected dual-output reducer is used to increase the torque, and the adjacent blades will not collide.
 |
 |

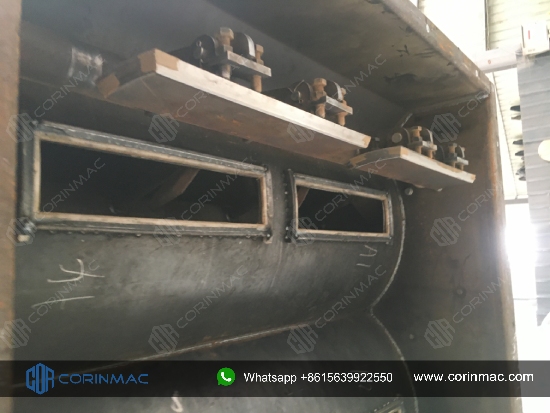

Special sealing technology is used for the discharge port, so the discharge is smooth and never leaks.
Specifications
| Model | Volume (m³) | Capacity (kg/time) | Speed (r/min) | Power (kw) | Weight (kg) | Overall size (mm) |
| JW-0.5 | 0.3 | 300 | 51 | 5.5-7.5 | 1000 | 1412x1410x1230 |
| JW-1 | 0.6 | 600 | 51 | 11-15 | 1550 | 1875x1610x1350 |
| JW-2 | 1.2 | 1200 | 51 | 18.5-22 | 2500 | 2312x2160x1775 |
| JW-3 | 1.8 | 1800 | 36 | 22-30 | 2900 | 2408x2400x1955 |
| JW-4 | 2.4 | 2400 | 36 | 30-37 | 3600 | 2822x2546x2015 |
| JW-6 | 3.6 | 3600 | 29 | 37-45 | 5600 | 3075x2980x2235 |
| JW-8 | 4.8 | 4800 | 29 | 45-55 | 7100 | 3278x3426x2425 |
| JW-10 | 6 | 6000 | 29 | 55-75 | 8000 | 3538x3645x2615 |
1 to 1 customized service

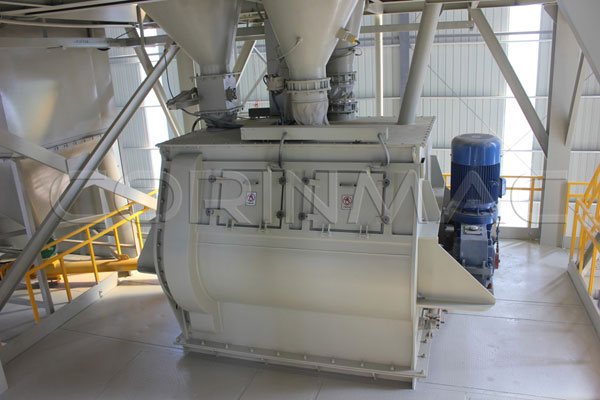

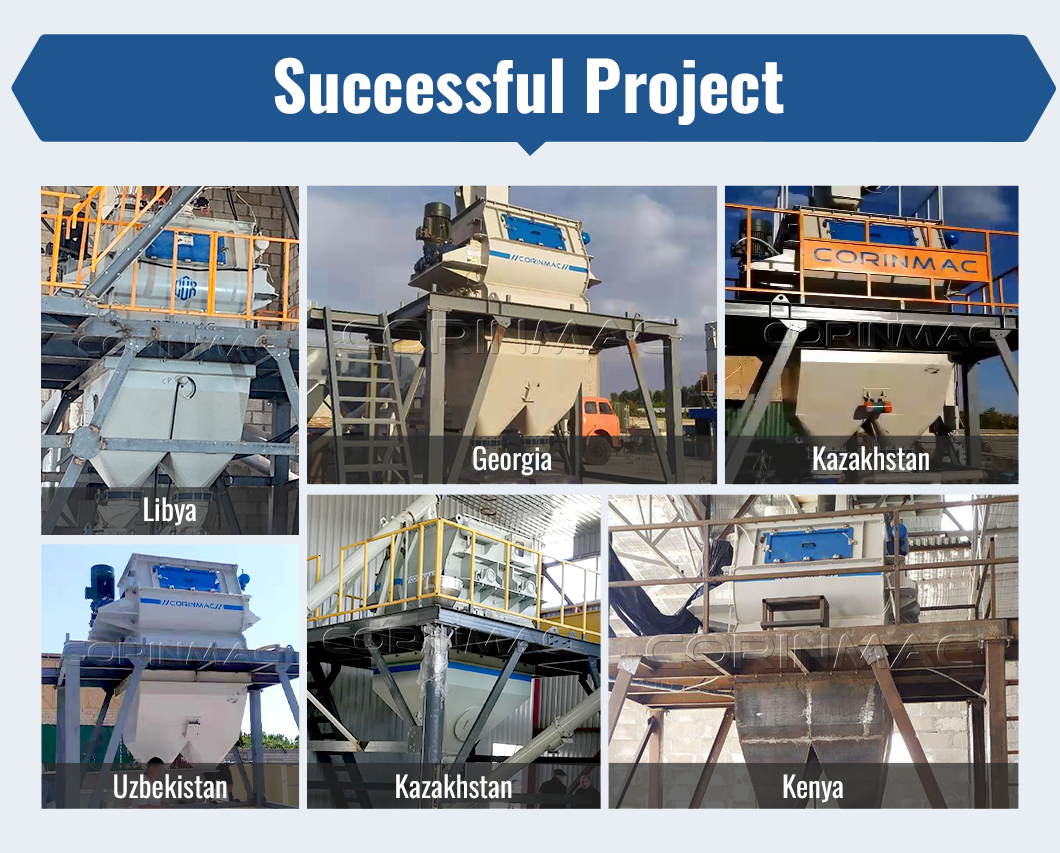

Successful Project
Company Profile
CORINMAC-Cooperation& Win-Win, this is the origin of our team name.
Customer visits
Welcome to CORINMAC. CORINMAC's professional team offers you comprehensive services. No matter which country you come from, we can provide you with the most considerate support. We have extensive experience in dry mortar manufacturing plants. We will share our experience with our customers and help them start their own business and make money. We thank our customers for their trust and support!

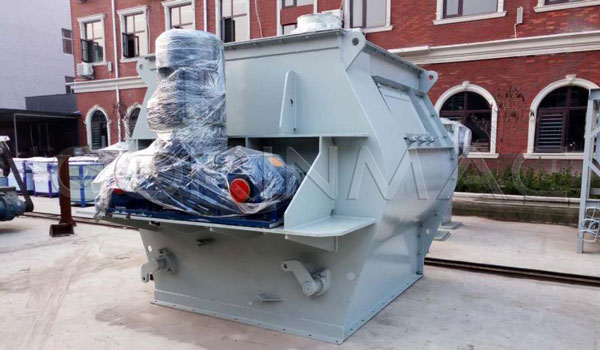

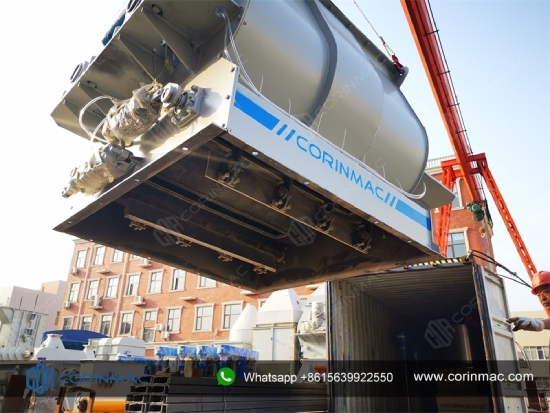

Packaging for shipment
