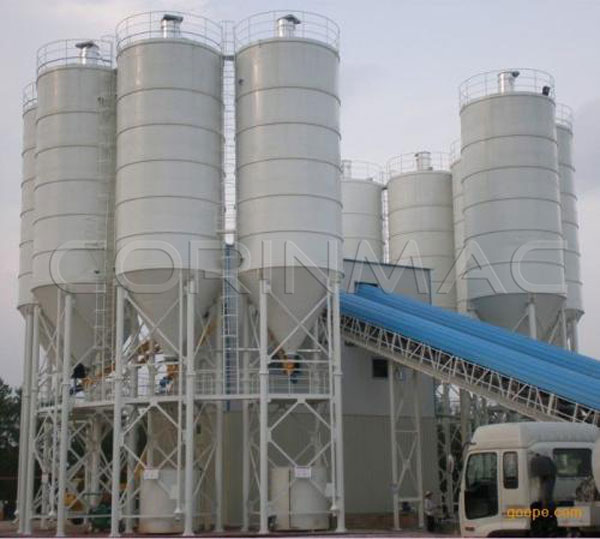

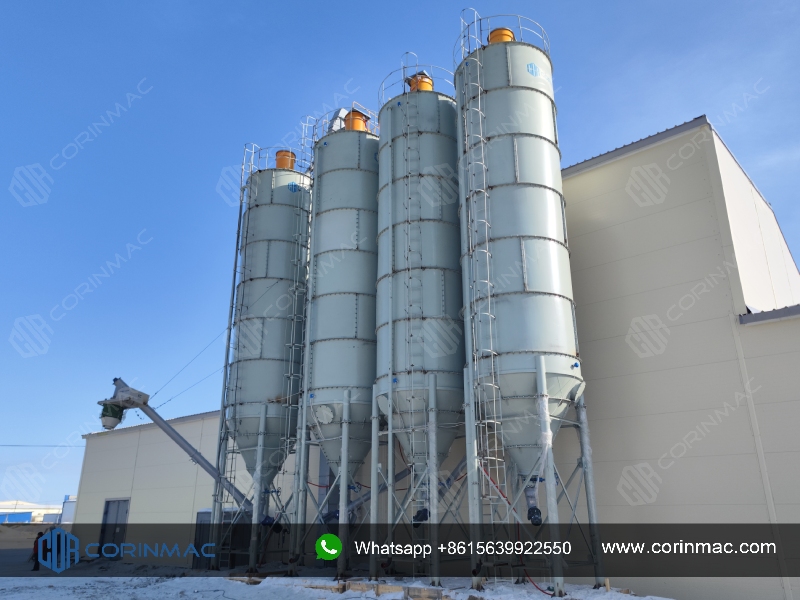

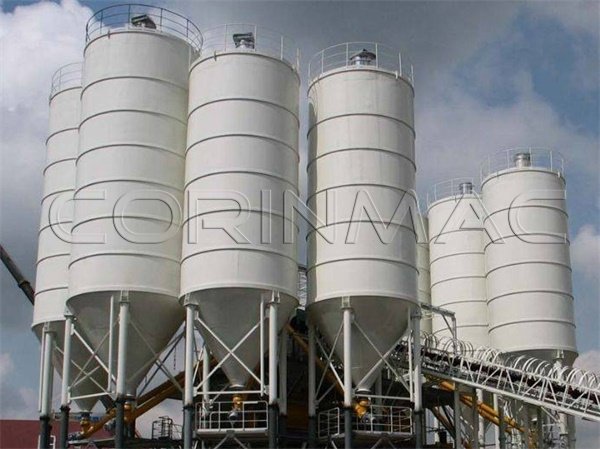

Silo for cement, sand, lime, etc.

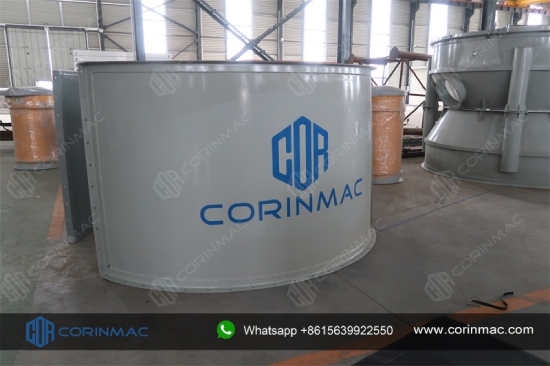

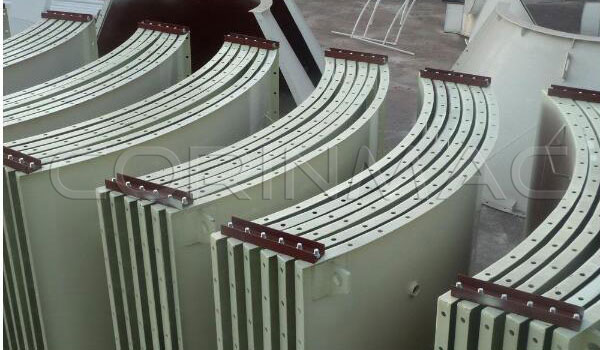

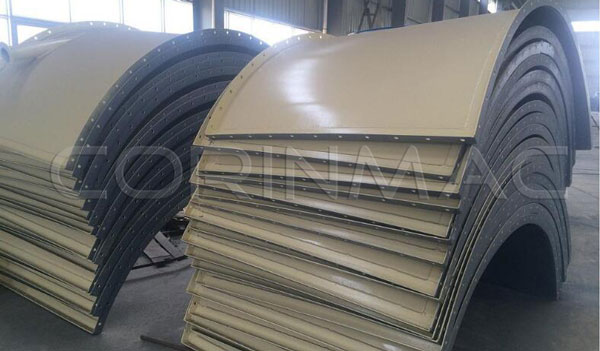

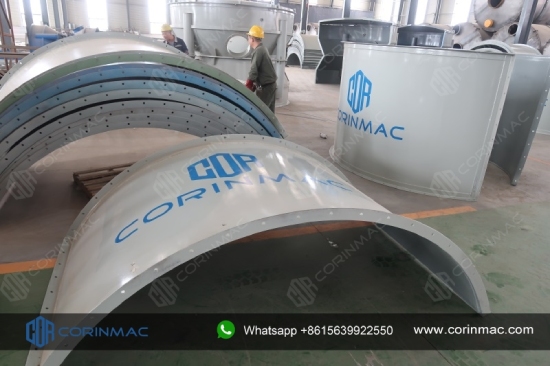

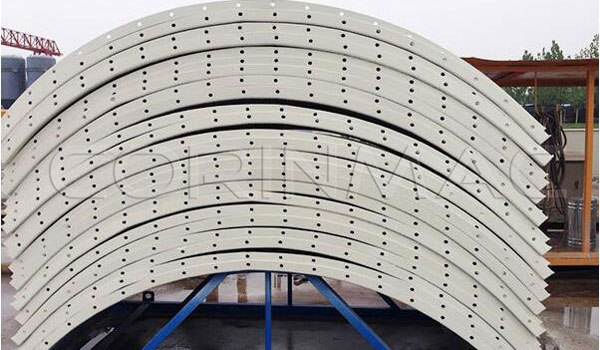

Sheet cement silo is a new type of silo body, also called split cement silo (split cement tank). All parts of this type of silo are completed by machining, which gets rid of the defects of roughness and limited conditions caused by manual welding and gas cutting caused by traditional on-site production. It has beautiful appearance, short production period, convenient installation, and centralized transportation. After use, it can be transferred and reused, and it is not affected by the site conditions of the construction site.
Features：
1. The diameter of the silo body can be arbitrarily designed according to the needs.
2. Large storage capacity, generally 100-500 tons.
3. The silo body can be disassembled for transportation and assembled on site. Shipping costs are greatly reduced, and one container can hold multiple silos.
 |
 |
Loading of cement into the silo is carried out via a pneumatic cement pipeline. To prevent material hanging and ensure uninterrupted unloading, an aeration system is installed in the lower (conical) part of the silo.
The supply of cement from the silo is carried out mainly by a screw conveyor.
To control the level of material in the silos, sensors of the lower and upper level are installed. Also, the silos are equipped with filters with a system of impulse blowing of filter elements with compressed air, which has both remote and local control. The cartridge filter is installed on the upper platform of the silo, and serves to clean the dusty air escaping from the silo under the influence of excess pressure when loading cement.

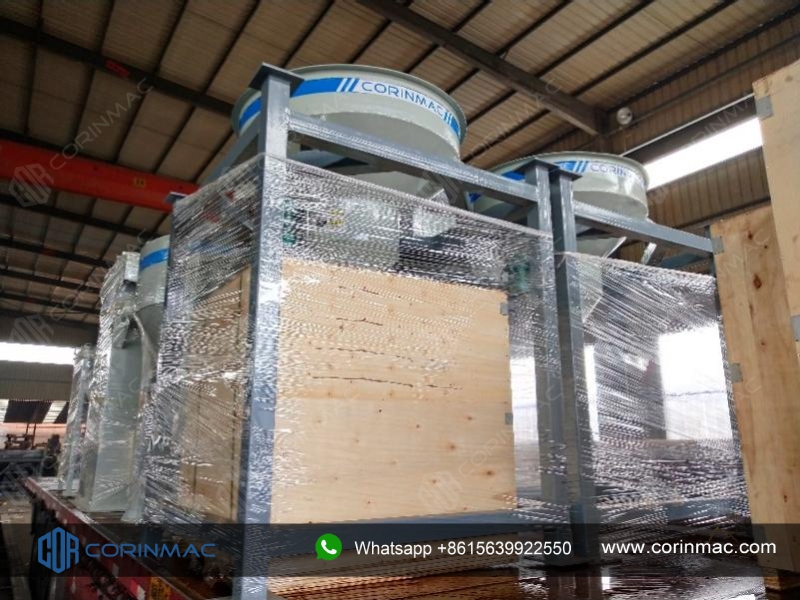

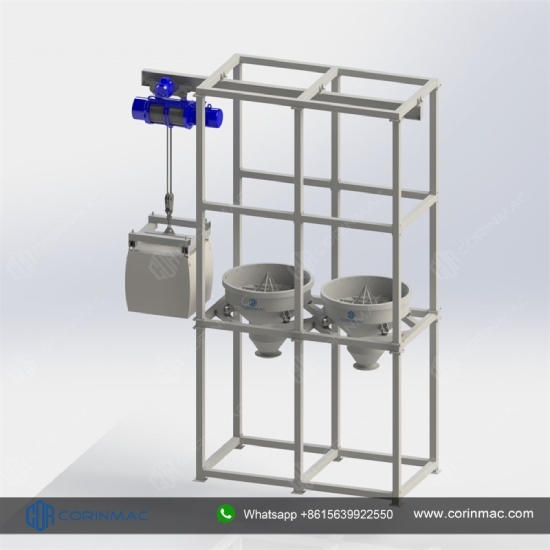

Jumbo bag un-loader

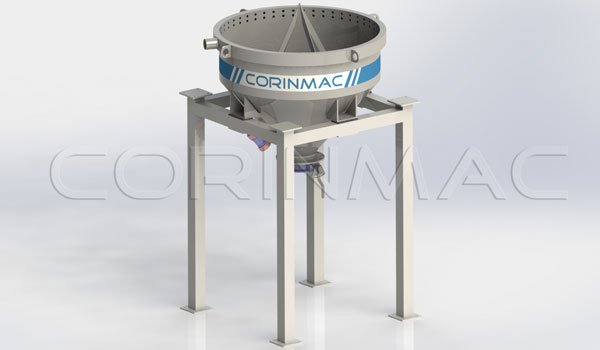

The jumbo bag un-loading machine (ton bag un-loader) is an automatic bag breaking equipment designed for dust-free bag breaking of ton bag materials containing ultra-fine powder and high-purity powder that are easy to generate dust. It will not leak dust during the entire operation process or cross contamination and other undesirable phenomena, the overall operation is relatively simple, and it is more convenient to control. Because of the modular design, there is no dead angle in installation, and cleaning is very convenient and fast.

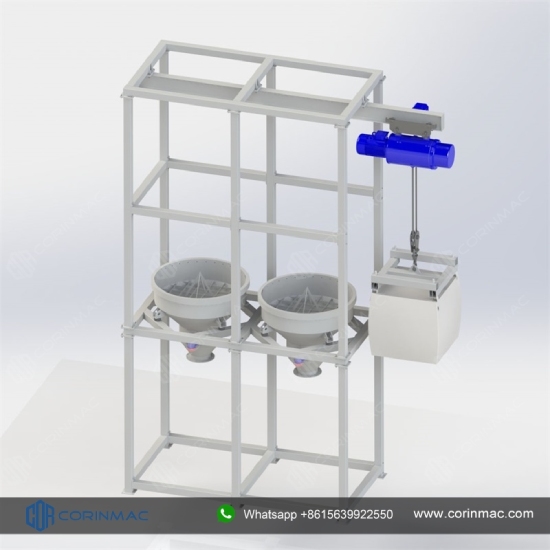

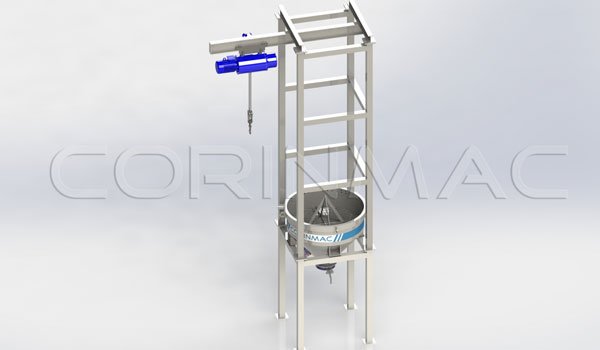

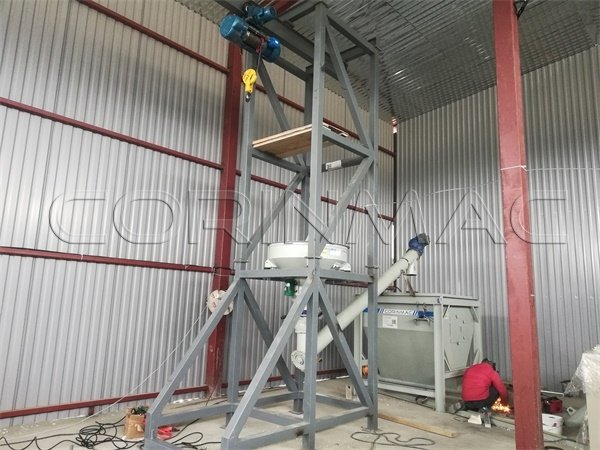

The jumbo bag un-loading machine is composed of a frame, a bag breaking hopper, an electric hoist, a dust collector, a rotary feeding valve (the valve is set according to the requirements of the subsequent process), etc. The electric hoist is fixed on the beam of the top frame, or it can be fixed on the floor; The ton bag is lifted by the electric hoist to the top of the hopper, and the bag mouth extends into the feeding port of the hopper, then close the bag clamping valve, untie the bag tie rope, slowly open the bag clamping valve, and the material in the bag flows into the hopper smoothly. The hopper discharges the material to the rotary valve at the bottom and enters the bottom pipeline. The compressed air from the factory can pneumatically transport the material to the destination to complete the conveying of materials in ton bag (if no air conveying is required, this valve can be omitted). For the processing of fine powder materials, this machine can be built-in or externally connected to a dust collector, so as to filter out the dust generated during the dumping process, and discharge the clean exhaust gas into the atmosphere, so that workers can work easily in a clean environment. If it is dealing with clean granular materials and the dust content is low, the purpose of dust removal can be achieved by installing a polyester filter element at the exhaust port, without the need for a dust collector.
 |
 |
Features：
1. The structure is simple, the electric hoist can be remotely controlled or controlled by wire, which is easy to operate.
2. The airtight open bag prevents dust flying, improves the working environment and reduces production costs.

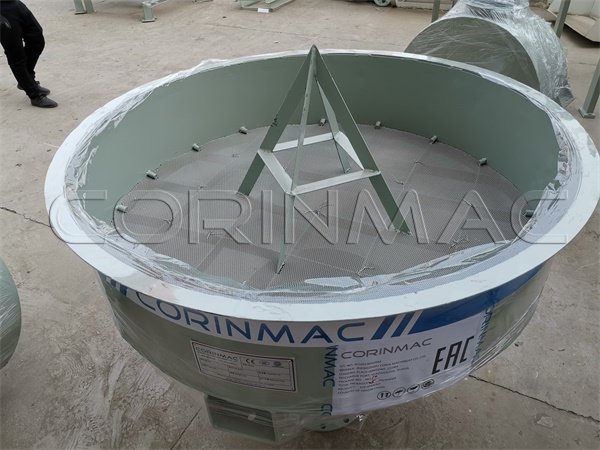

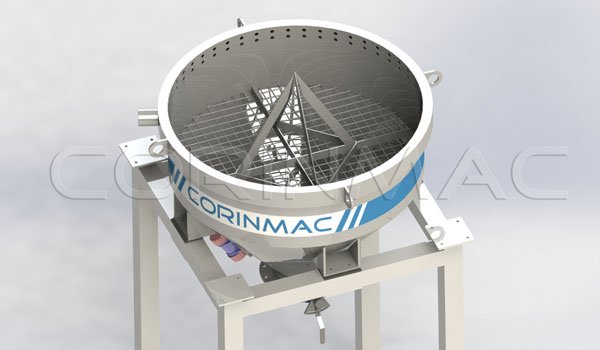

As standard, the hopper is equipped with a breaker for ripping open soft containers of the "big-bag" type, a butterfly valve designed to fully open, close and regulate the flow of bulk materials from the hopper. at the request of the client, an electromechanical vibrator can be installed on the bin to stimulate the unloading of bulk material.
In the event that the feeding into the bunker is carried out by a screw conveyor or a belt conveyor, an upper level sensor can be installed as an additional configuration, which will automatically stop the supply of material to the bunker after filling it.
